Riepilogo del prodotto
FNIRSI TDM-120/TDM-120P Thermal Imaging Multimeter 2 in 1 IR Camera Tester 120x90 Resolution is a digital measurement tool selected for measuring voltage, current, resistance and common electrical parameters. È adatto per electricians, repair users and electronics hobbyists che hanno bisogno di hardware elettronico pratico per lavorare in modo affidabile sui propri progetti.
Ideale per
- measuring voltage, current, resistance and common electrical parameters
- electronics repair, home electrical checks and bench testing
- test elettronici, riparazione, prototipazione e flussi di lavoro maker
FAQ
Per chi è questo prodotto? È destinato a electricians, repair users and electronics hobbyists.
Cosa devo controllare prima di acquistare? Consulta in questa pagina le opzioni del prodotto, le specifiche, gli accessori inclusi e i dettagli di compatibilità.

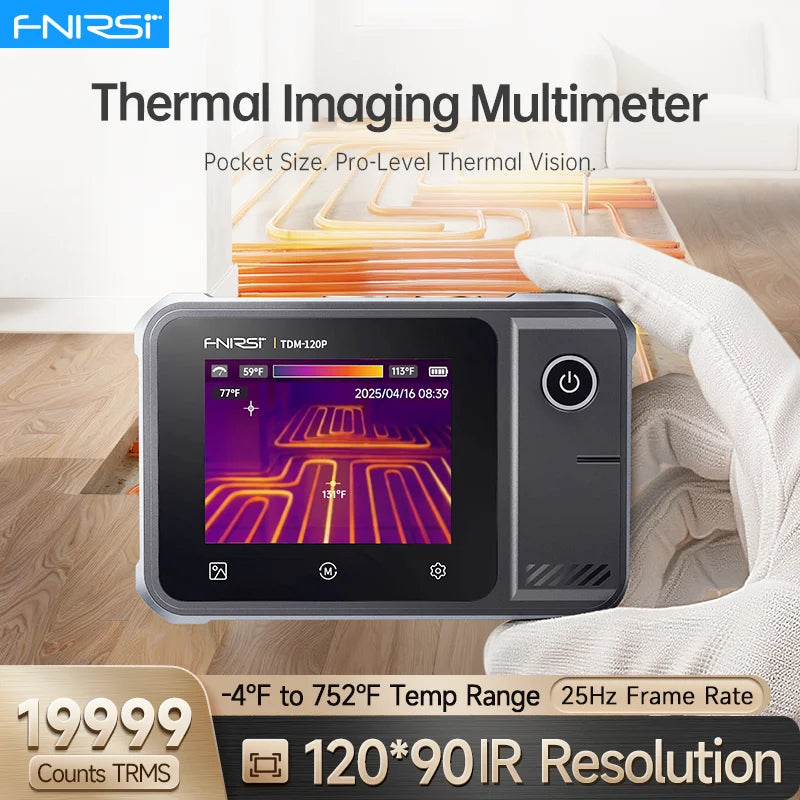

TDM-120P is a thermal imaging multimeter that combines thermal imaging technology with traditional multimeter functions, providing more comprehensive and intuitive test results in electrical testing and related applications. It is widely used in fields such as electricity, industrial manufacturing, construction, and security monitoring. The TDM-120P offers reliable technical support for equipment testing, fault analysis, and maintenance management, helping improve production efficiency, product quality, and overall safety.

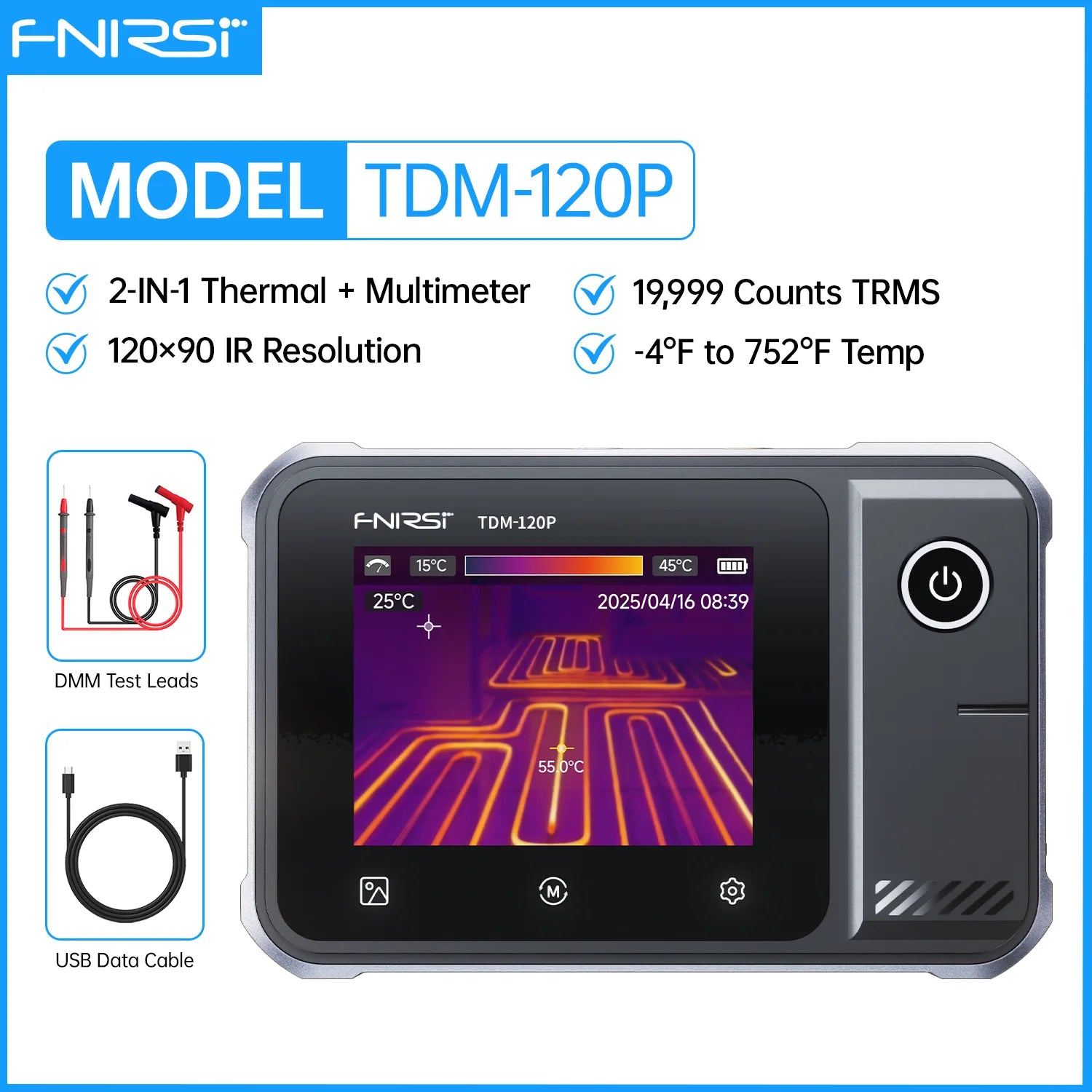

1. 2-in-1 Thermal Imaging & Multimeter
Combines thermal imaging and digital multimeter functions in one device. Easily switch between modes to measure temperature and electrical parameters, improving efficiency for troubleshooting and maintenance.
2. Accurate Thermal Detection with Clear Visualization

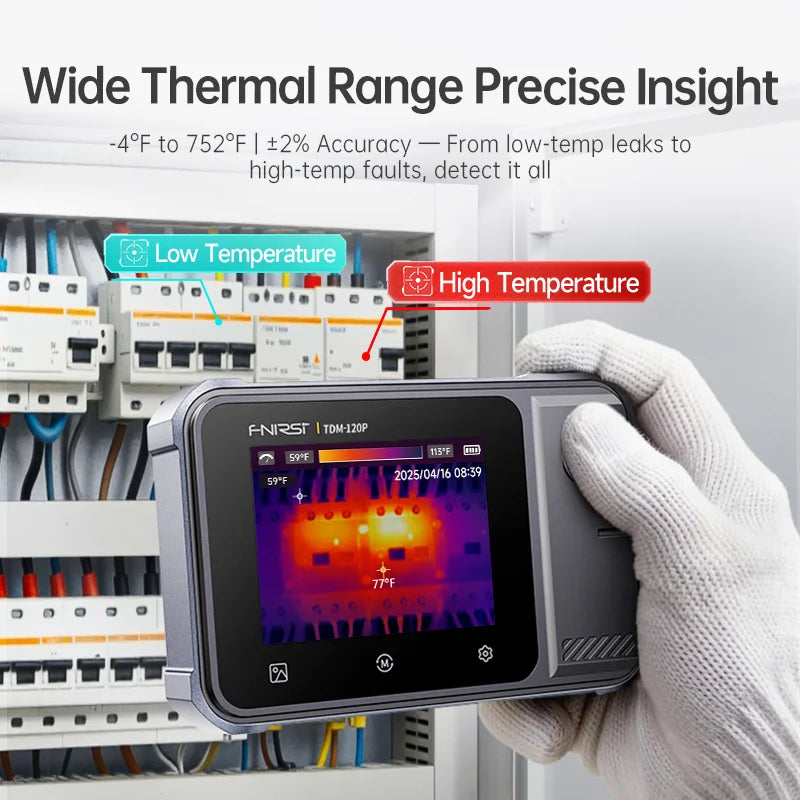

Features 120x90 IR resolution and a wide temperature range of -20 deg C to 400 deg C, with ±2 deg C/±2% accuracy. Displays real-time max/min temperatures and automatically tracks hot spots for quick fault detection.
3. Smart Temperature Analysis with Alarm Function

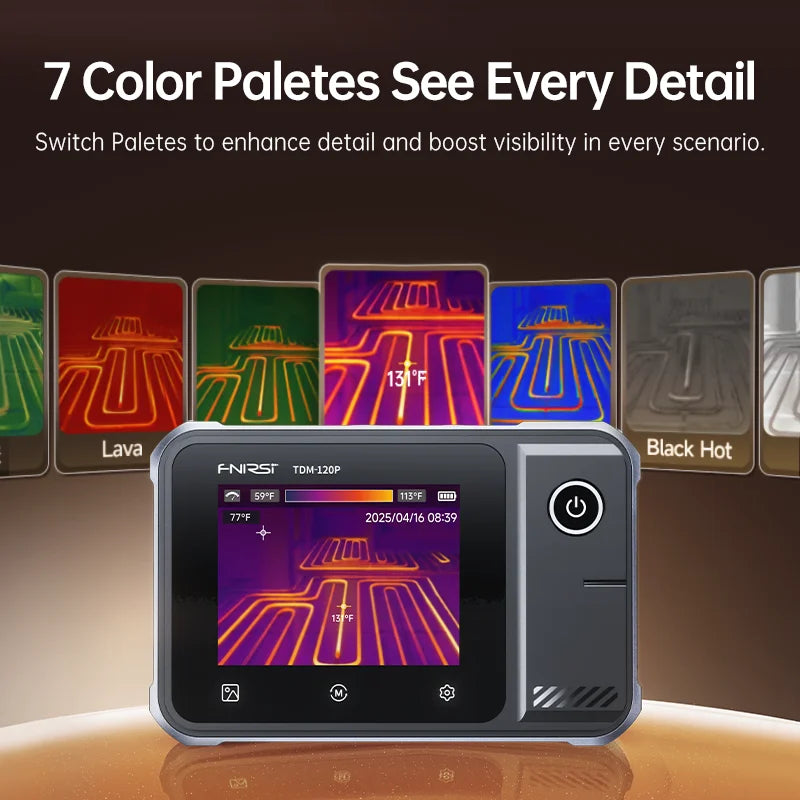

Built-in high/low temperature alarm allows you to set thresholds for instant alerts. Supports 7 color palettes to clearly visualize heat differences and identify problem areas faster.
4. Full-Function Digital Multimeter
Supports AC/DC voltage, resistance, continuity, capacitance, and diode testing. One device meets multiple electrical measurement needs for repair, inspection, and diagnostics.
5. schermo touch Display & Image Capture
Equipped with a 2.8-inch schermo touch for intuitive operation. Capture and store thermal images to an SD card, making it easy to record data and analyze results anytime.
Basic Parameters

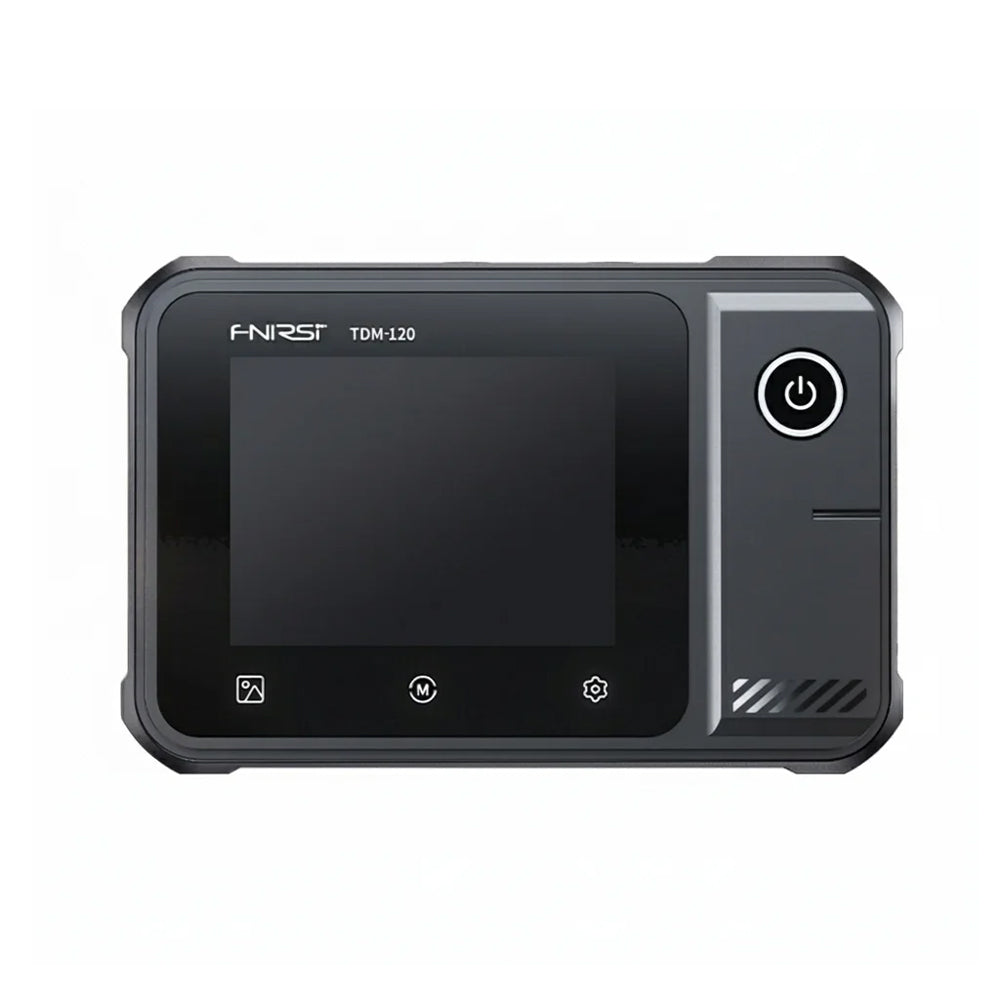

Product model: TDM-120 / TDM-120P
Detector type: Vanadium oxide
Infrared resolution: 120x90
Temperature range: -20 deg C-400 deg C
Accuracy: ±2 deg C or ±2% (maximum value measured)
Emissivity: 0.01-1 regolabile

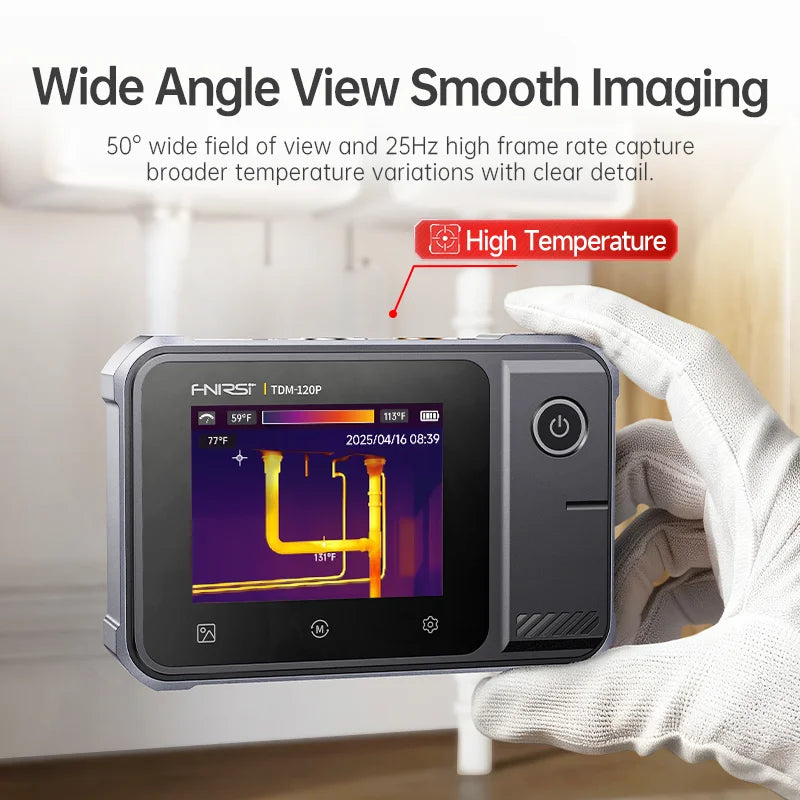

Field of view: 50 deg
Frame rate: ≤25Hz
Screen: 2.8-inch schermo touch
Temperature unit: deg C / deg F
Languages: Chinese / English
Thermal Imaging Parameters
Color palette: Arctic / Hot Iron / Iron Red / Rainbow / Lava / Black Hot / White Hot
Temperature measurement Display: Center point, automatic high/low temperature tracking
High/low temperature alarm: Support
Multimeter Function Parameters
DC voltage: Range: 1.9999V/19.999V/199.99V/1000V, Accuracy: ±(0.5%+3)
AC voltage: Range: 1.9999V/19.999V/199.99V/750.0V, Accuracy: ±(1%+3)
Resistance: Range: 19.999M ohm/1.9999M ohm/199.99K ohm/19.999K ohm/1.9999K ohm/199.99 ohm, Accuracy: ±(0.5%+3)
Capacitance: Range: 999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF/9.999mF/99.99mF, Accuracy: ±(2.0%+5) / ±(5.0%+20)
Continuity: Support, Accuracy: ±(2.0%+3)
Diode: Support

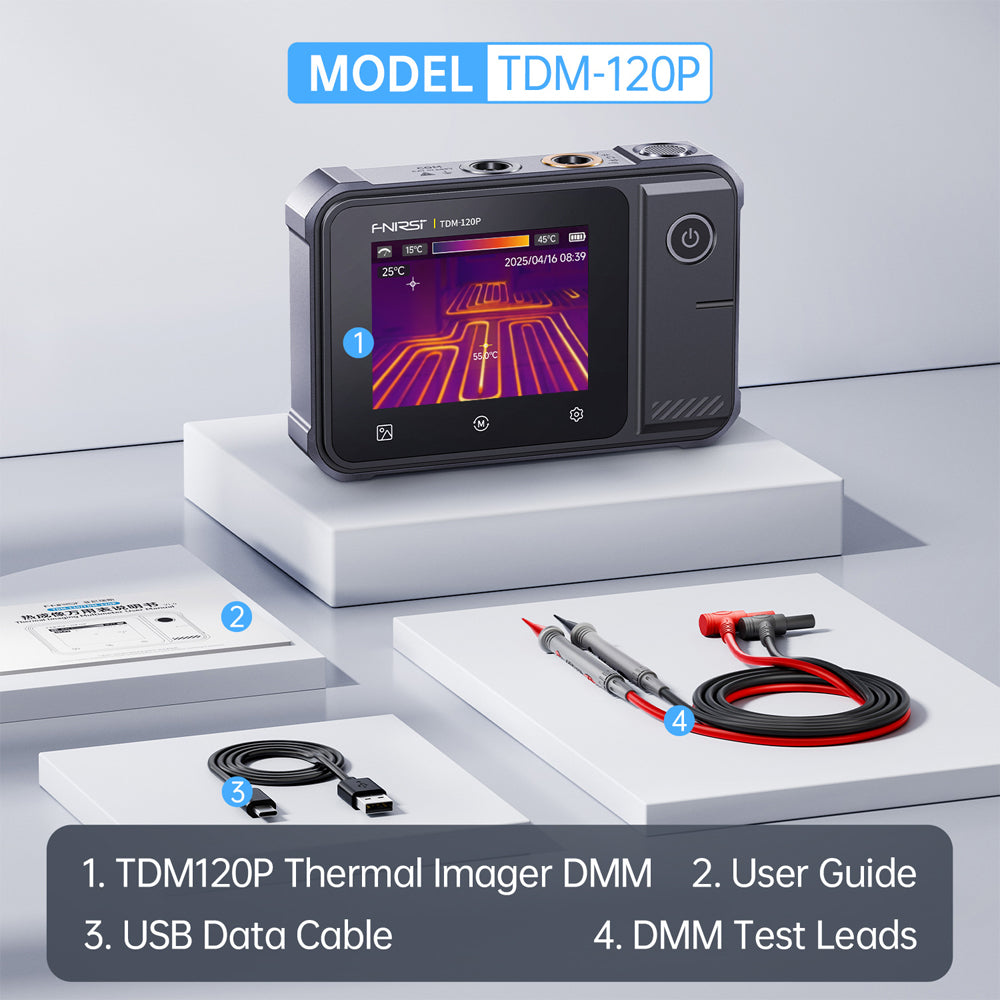

1. TDM-120P Thermal Imaging Multimeter
2. User Manual
3. Data Cable
4. Test Leads
