TOOLTOP TH202 4in1 256x192 Thermal Camera 2 Channels 80MHz oszcilloszkóp Multimeter PCB is a digitális oszcilloszkóp selected for checking waveforms, debugging signals and validating circuit behavior. Alkalmas a következőkhöz electronics repair technicians, lab users and embedded developers akiknek megbízható projektekhez praktikus elektronikai hardverre van szükségük.
Ideális ezekhez
- checking waveforms, debugging signals and validating circuit behavior
- test leads, probes and bench electronics workflows
- elektronikai teszteléshez, javításhoz, prototípus-készítéshez és maker munkafolyamatokhoz
GYIK
Kinek szól ez a termék? Ez a termék a következőknek készült electronics repair technicians, lab users and embedded developers.
Mit ellenőrizzek vásárlás előtt? Tekintse meg ezen az oldalon a termékváltozatokat, műszaki adatokat, a csomag tartalmát és a kompatibilitási részleteket.
Note:
1. In order to correct non-uniformity, a mechanical control calibration plate is installed in front of the thermal imaging detector, which will be calibrated every 10 seconds to ensure more accurate measurements. This is a thermal imaging detector undergoing calibration work, which usually experiences a lag of about 1-2seconds. This is a normal phenomenon, so please don't worry.

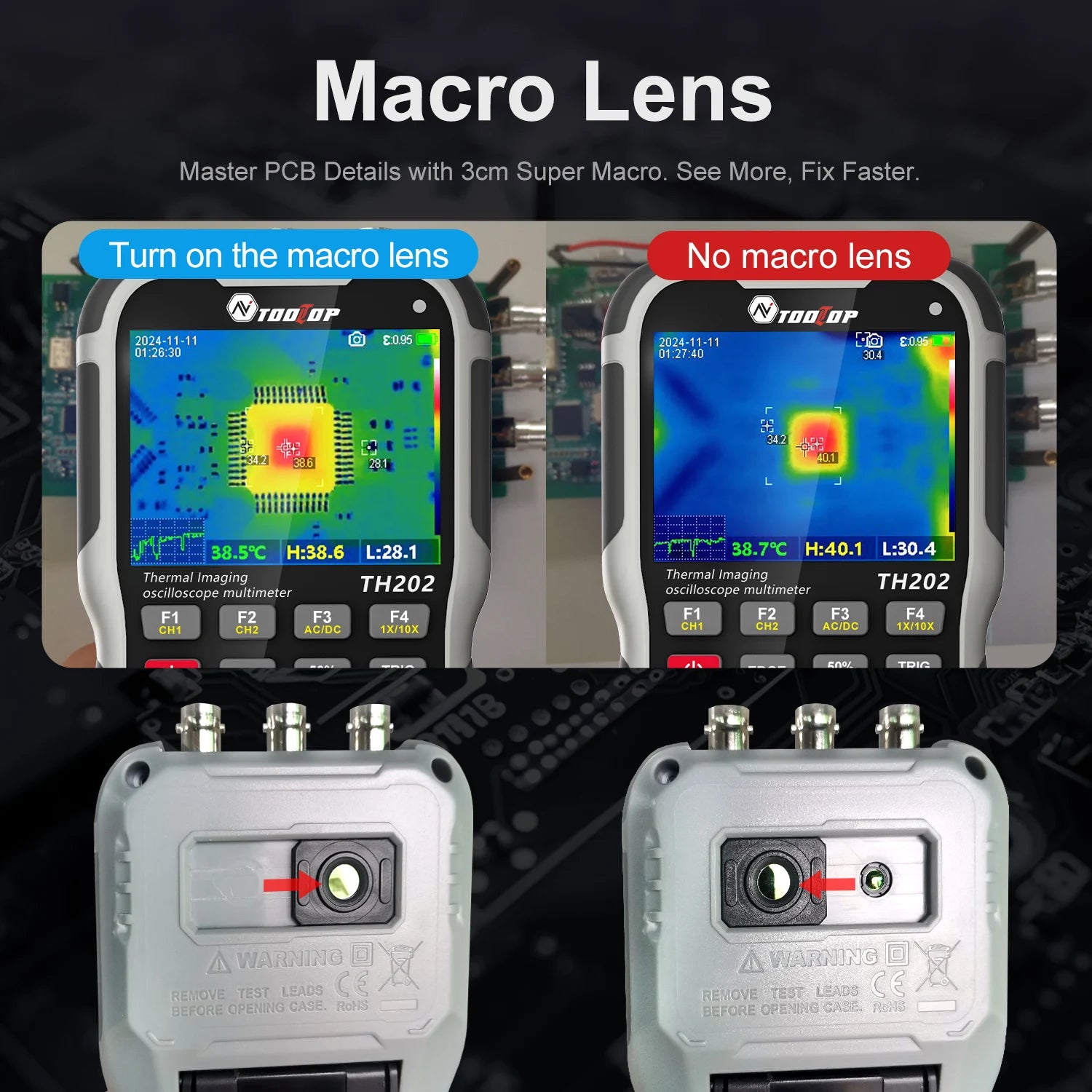

2. Macro lens installed for PCB inspection at about 3 cm. For distances beyond this, use normal thermal imaging; otherwise the image will be blurred.
3. Mute setting: Select OSC or DMM mode, then press the MENU key, select Beep function and turn it off.
Features:

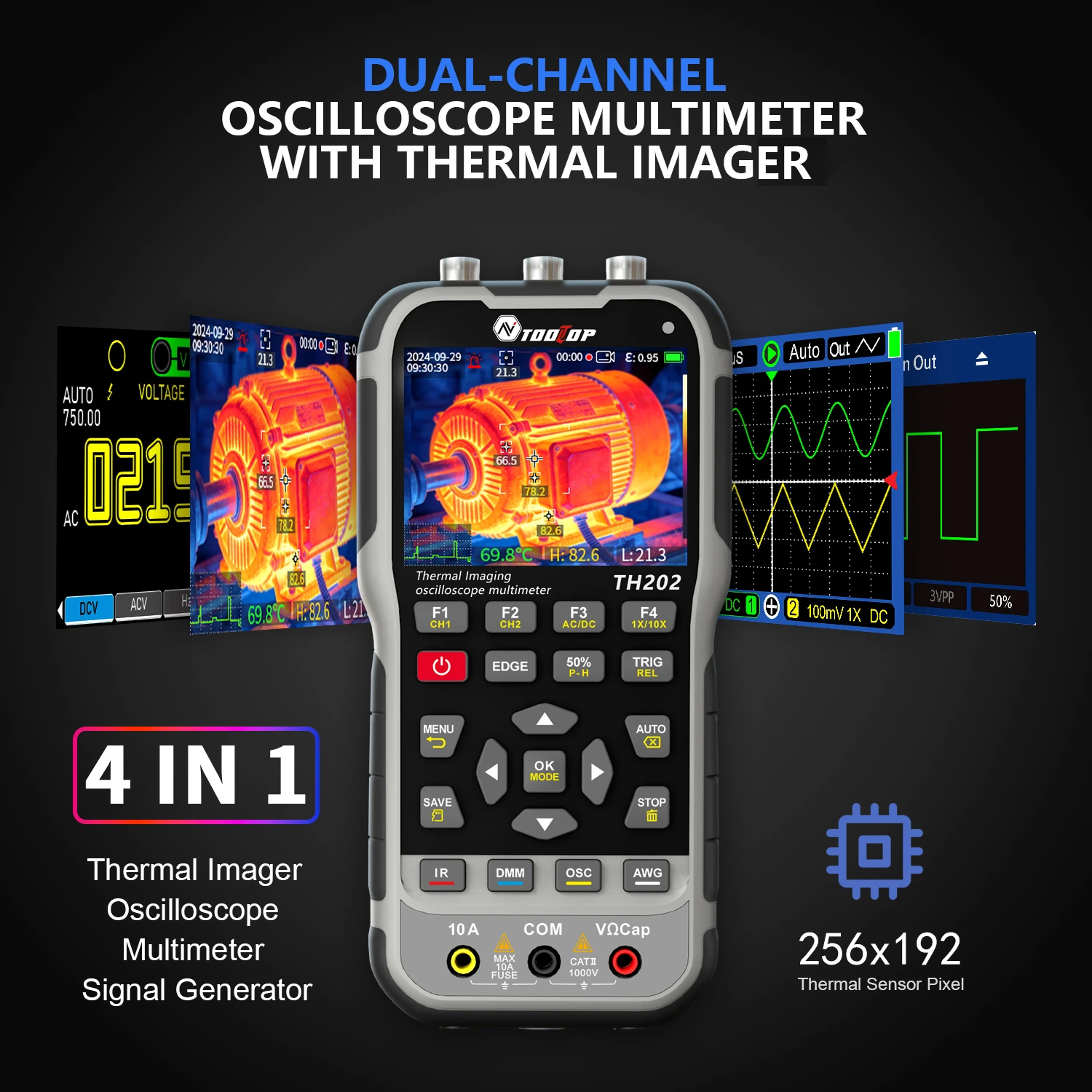

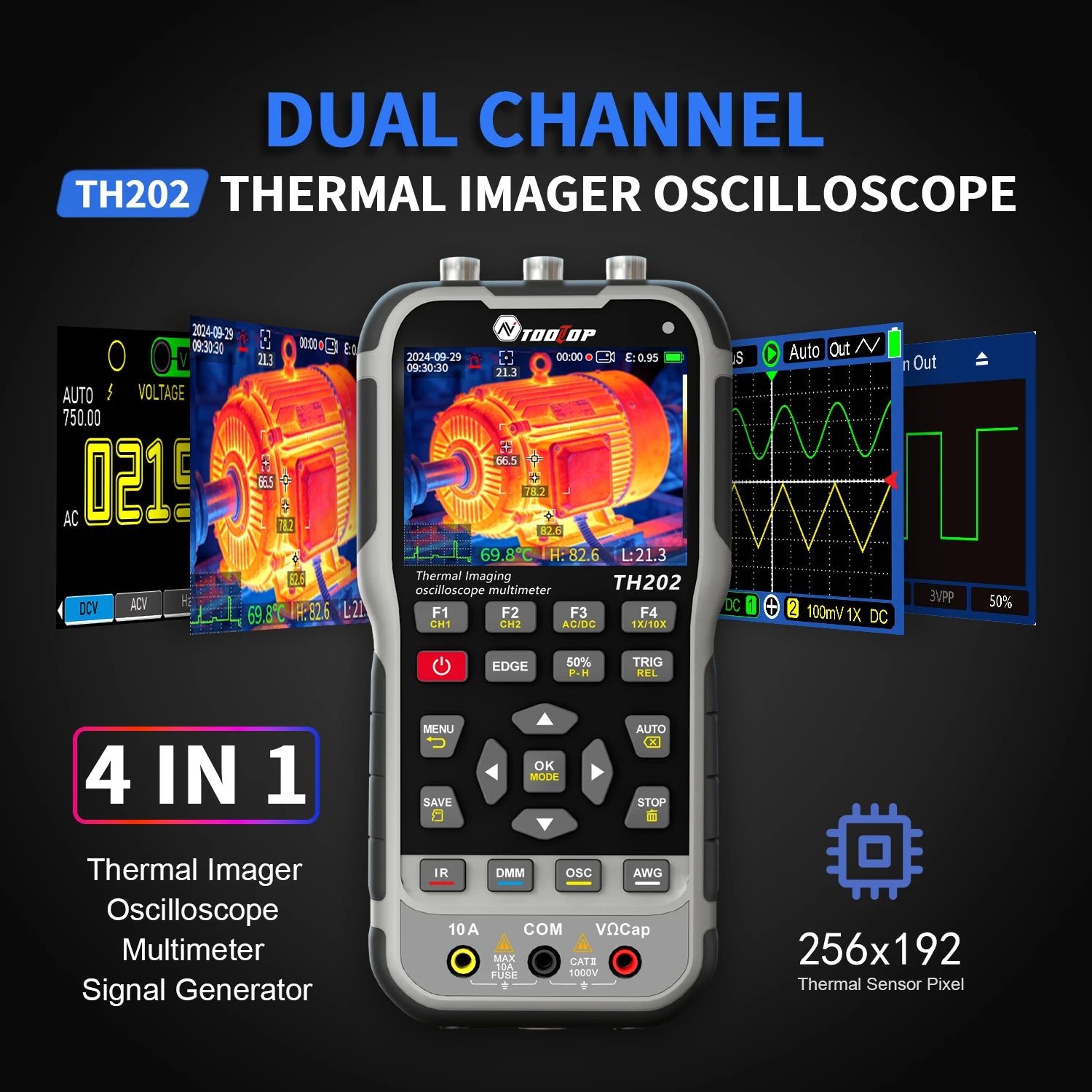

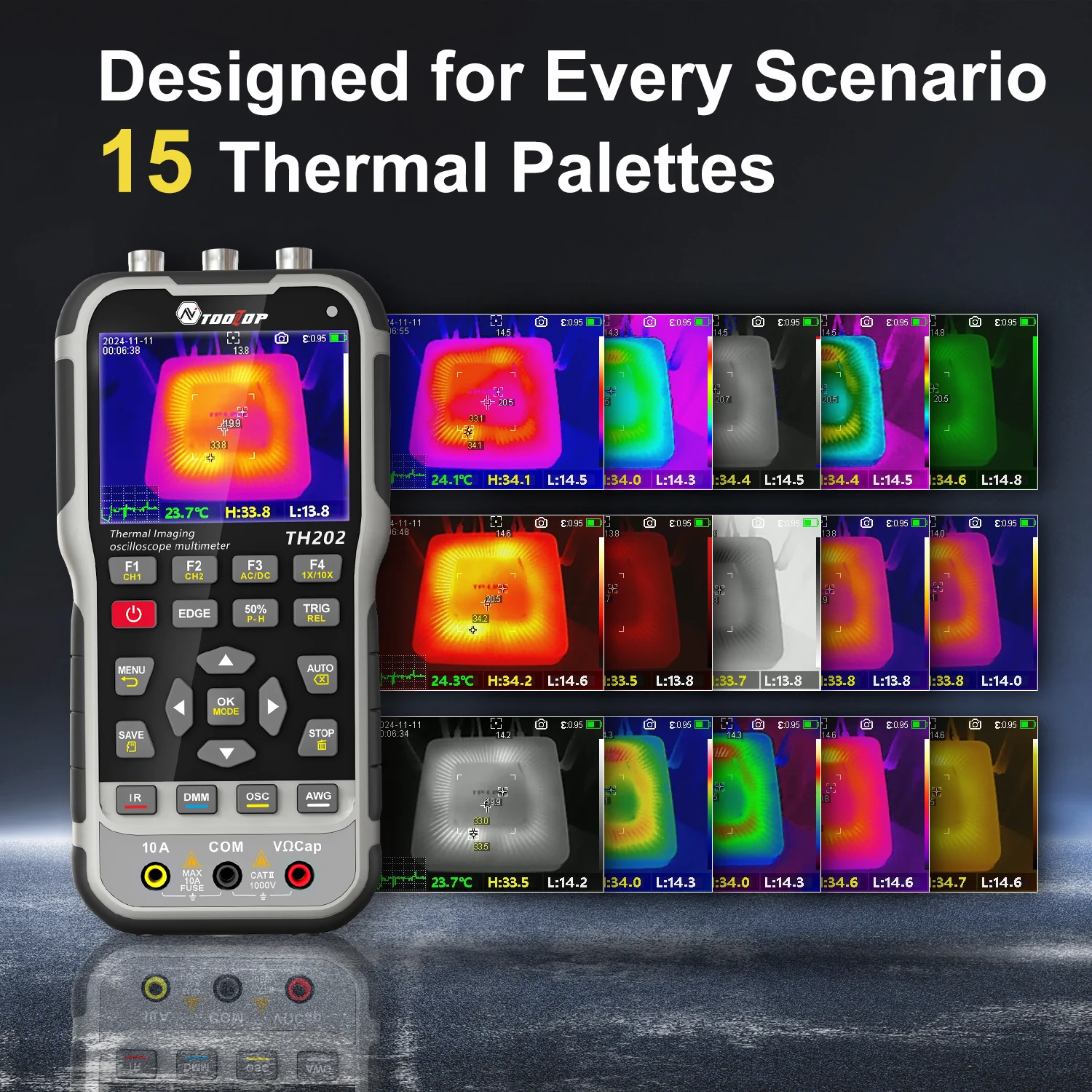

Professional 256x192 Thermal Imager

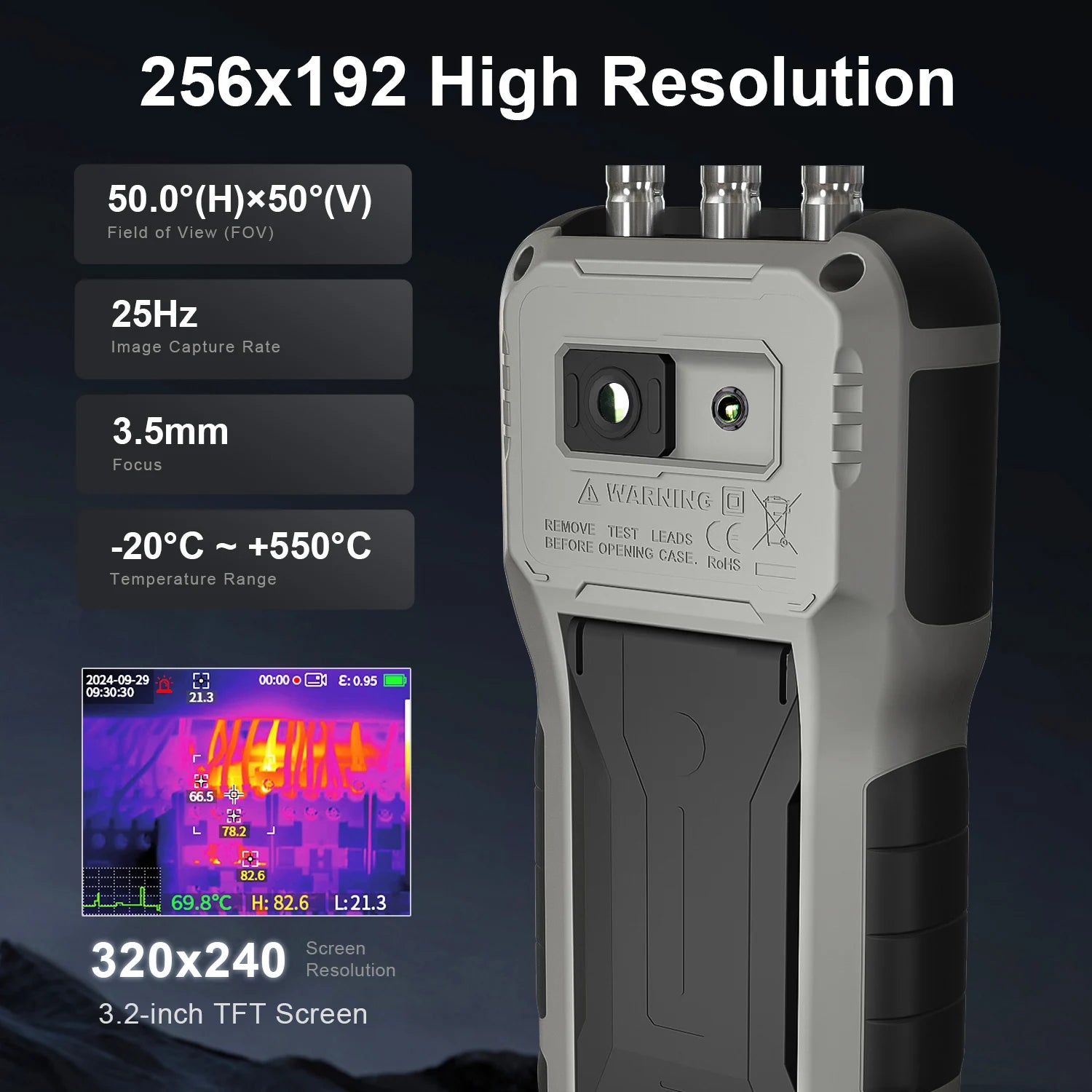

- 256x192 resolution 25Hz thermal imaging sensor
- With macro lens for 3cm close-range PCB inspection
- Real-time temperature profile recording improves inspection efficiency

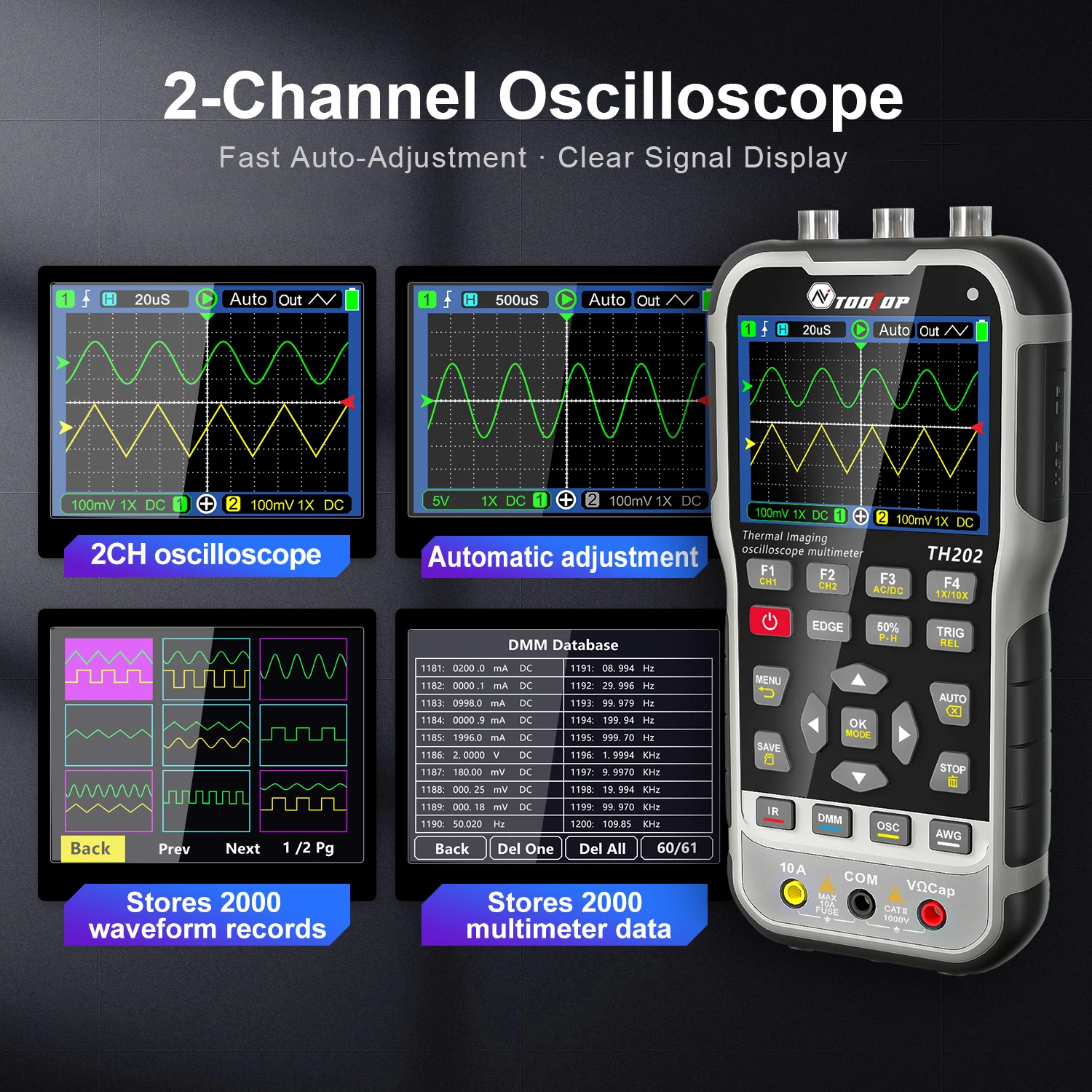

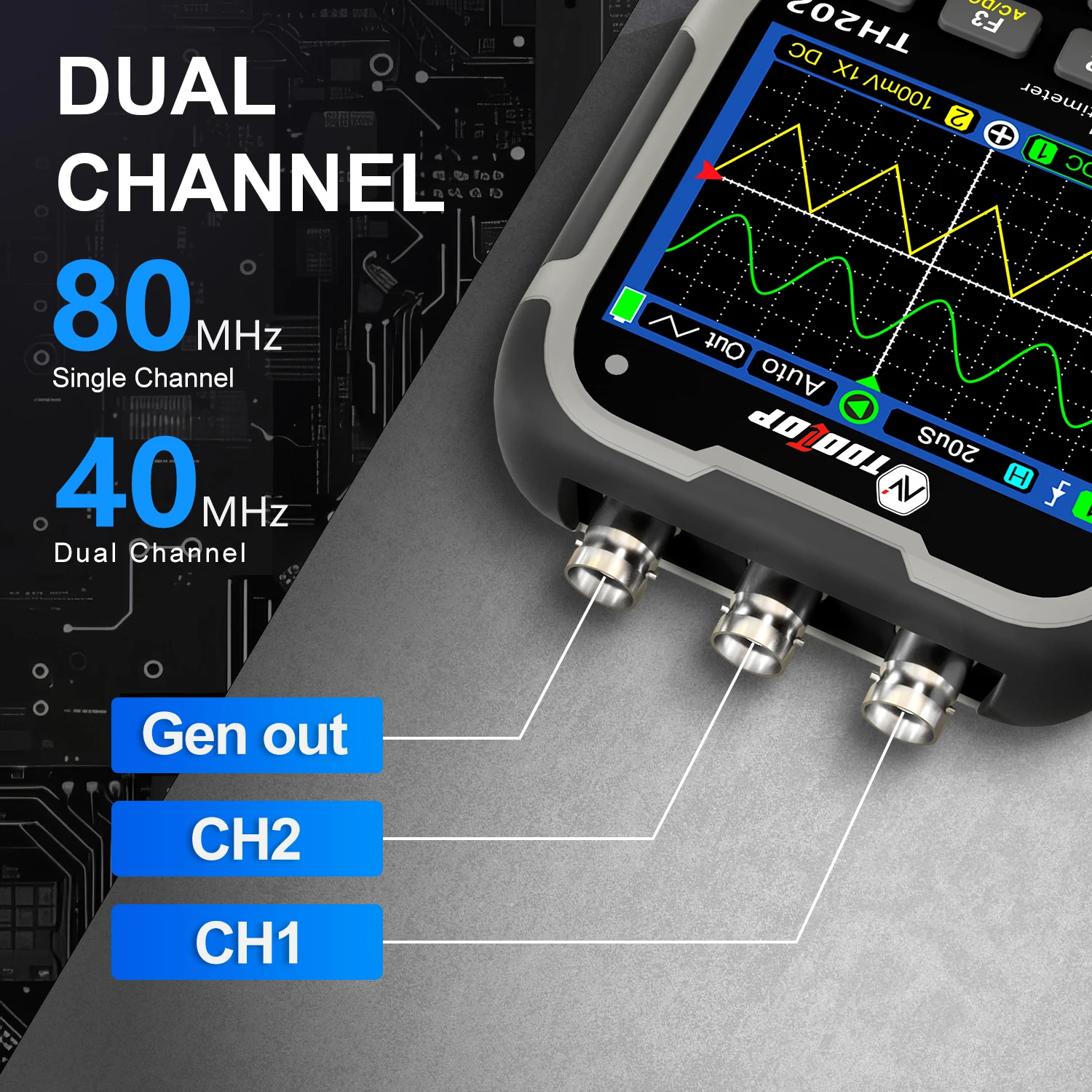

2 channels oszcilloszkóp

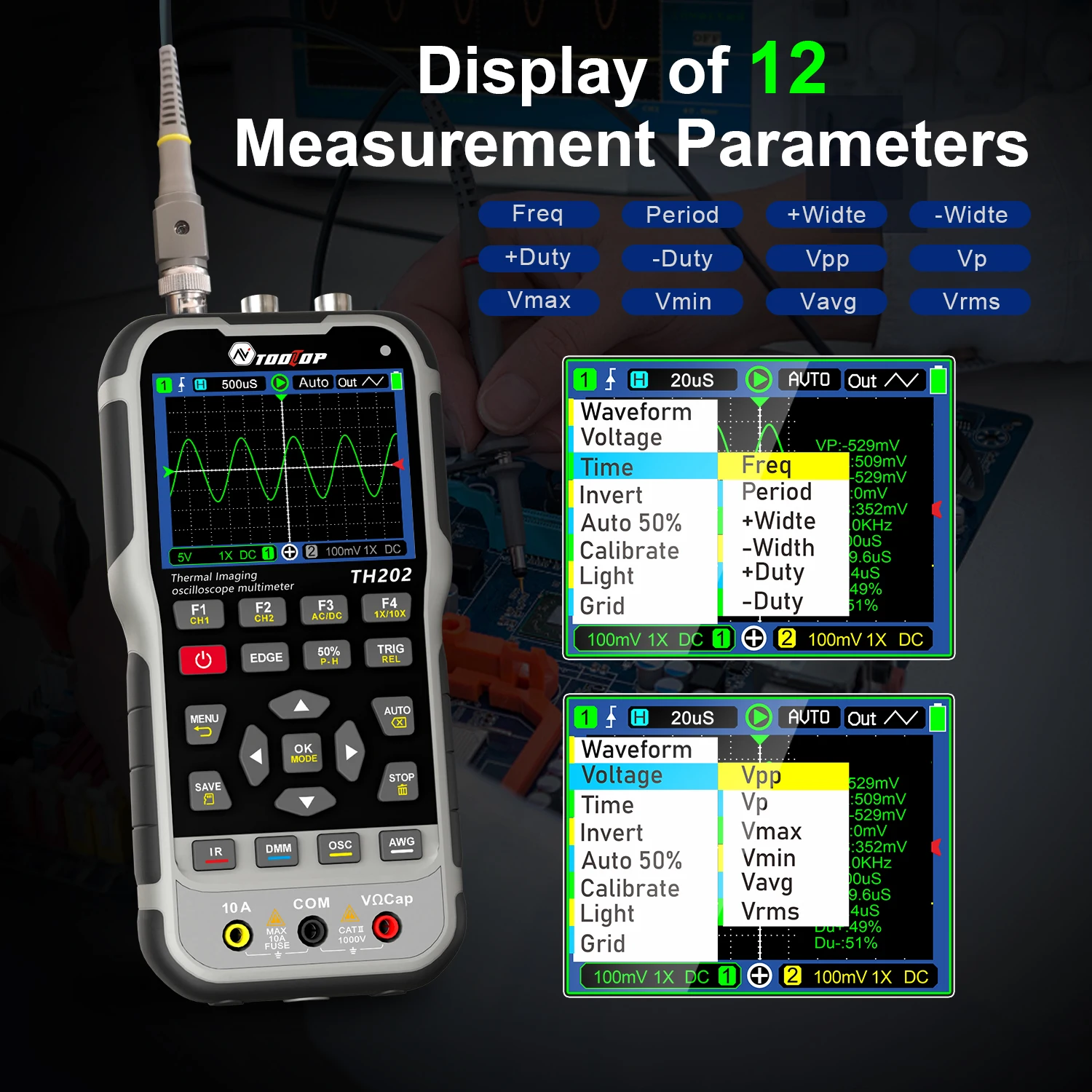

80MHz analog bandwidth, 200MSa/s high-speed sampling, 12 customizable waveform parameters (such as time base), making circuit debugging more efficient.

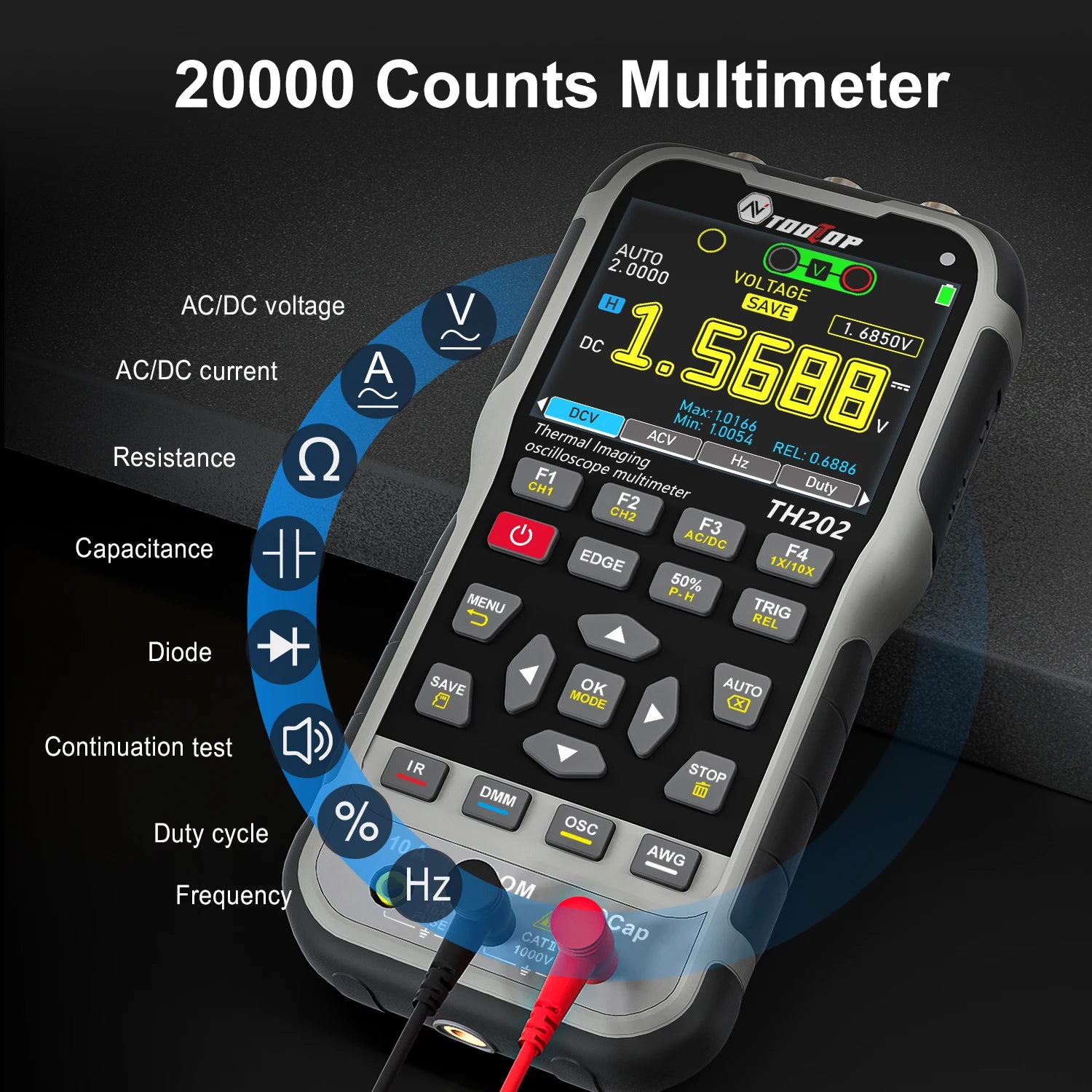

20,000 Counts True-RMS Multimeter

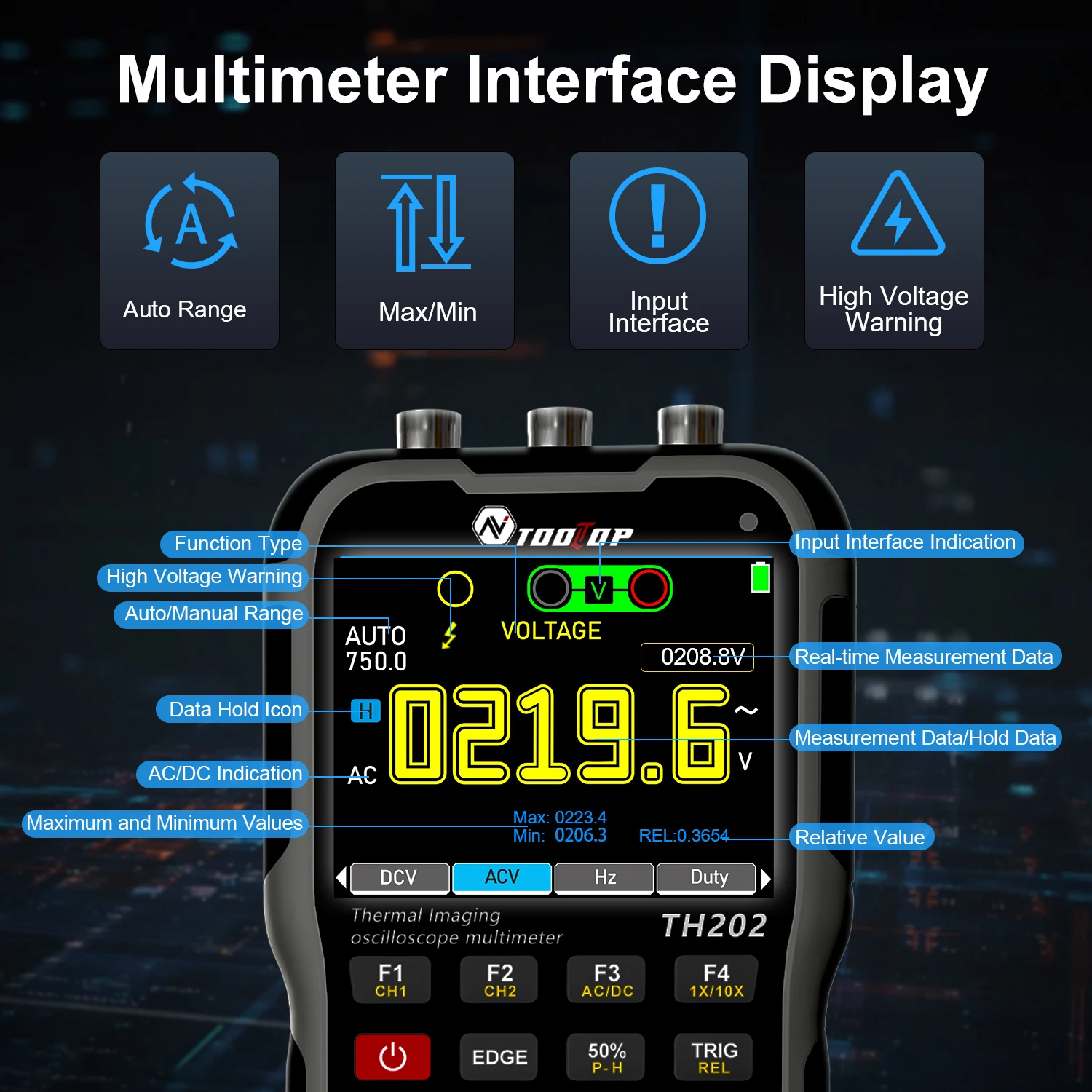

Supports voltage/current/resistance/capacitance/frequency/duty cycle/diode/continuity and relative value measurements ,minimizes lead resistance and interference for more reliable results.
3.2 Inches Large kijelző
320x240 resolution, wide-view TFT color screen with 8 levels brightness állítható. Readouts and waveforms are clear at a glance.
4GB Built-in Storage

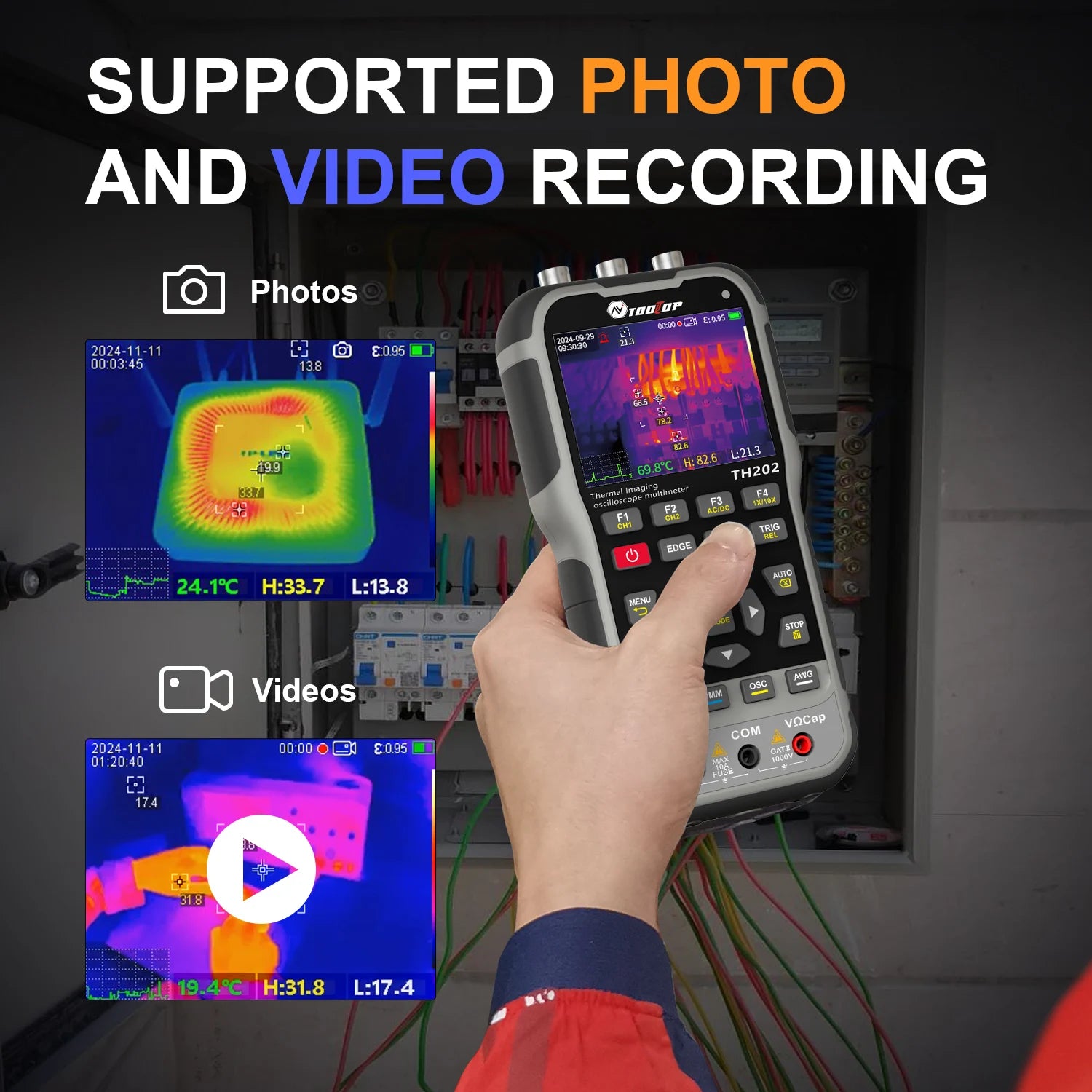

Stores up to 2,000 data multimeter sets or 2,000 waveforms and supports saving thermal images and videos analysis.Facilitating experimental recording and data analysis.
3000mAh Lithium Battery
újratölthető battery with a long battery life of approximately 5 hours, perfect for field measurements.

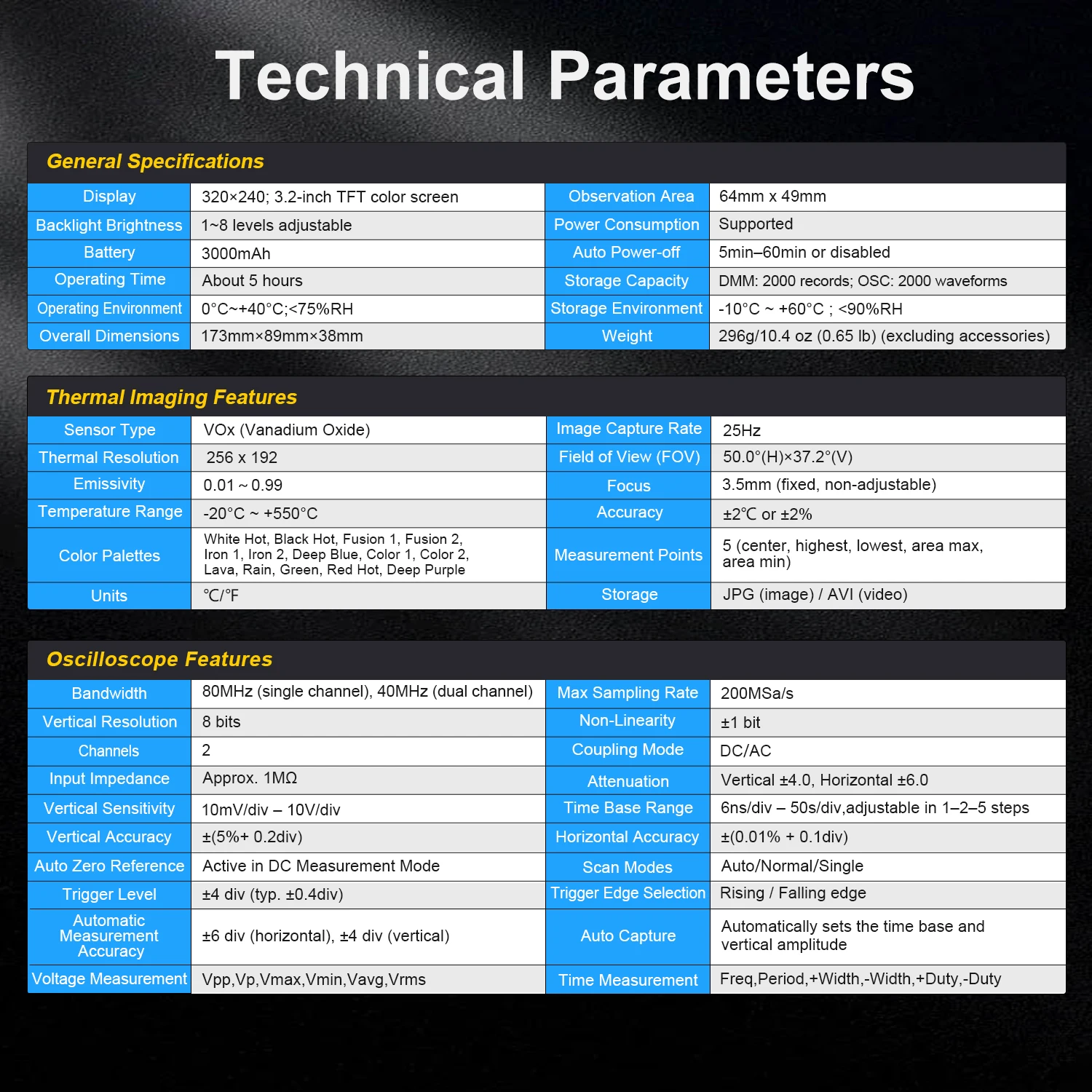

Specifications:
Thermal Imager Parameters
Sensor Type: VOx (Vanadium Oxide)
Thermal Resolution: 256x192
Image Capture Rate:25Hz
Temperature Range: -20 deg C-+550 deg C
Measurement Accuracy:±2 deg C or ±2%
Emissivity: 0.01-0.99
Palette: White Hot, Black Hot, Fusion1, Fusion 2, lron 1, lron 2,Deep Blue, Color 1, Color 2.Lava, Rain, Green, Red Hot.Deep Purple
Field of View(FOV):50.0 deg (H)x37.2 deg (V)
Focus:3.5mm (fixed, non-állítható)

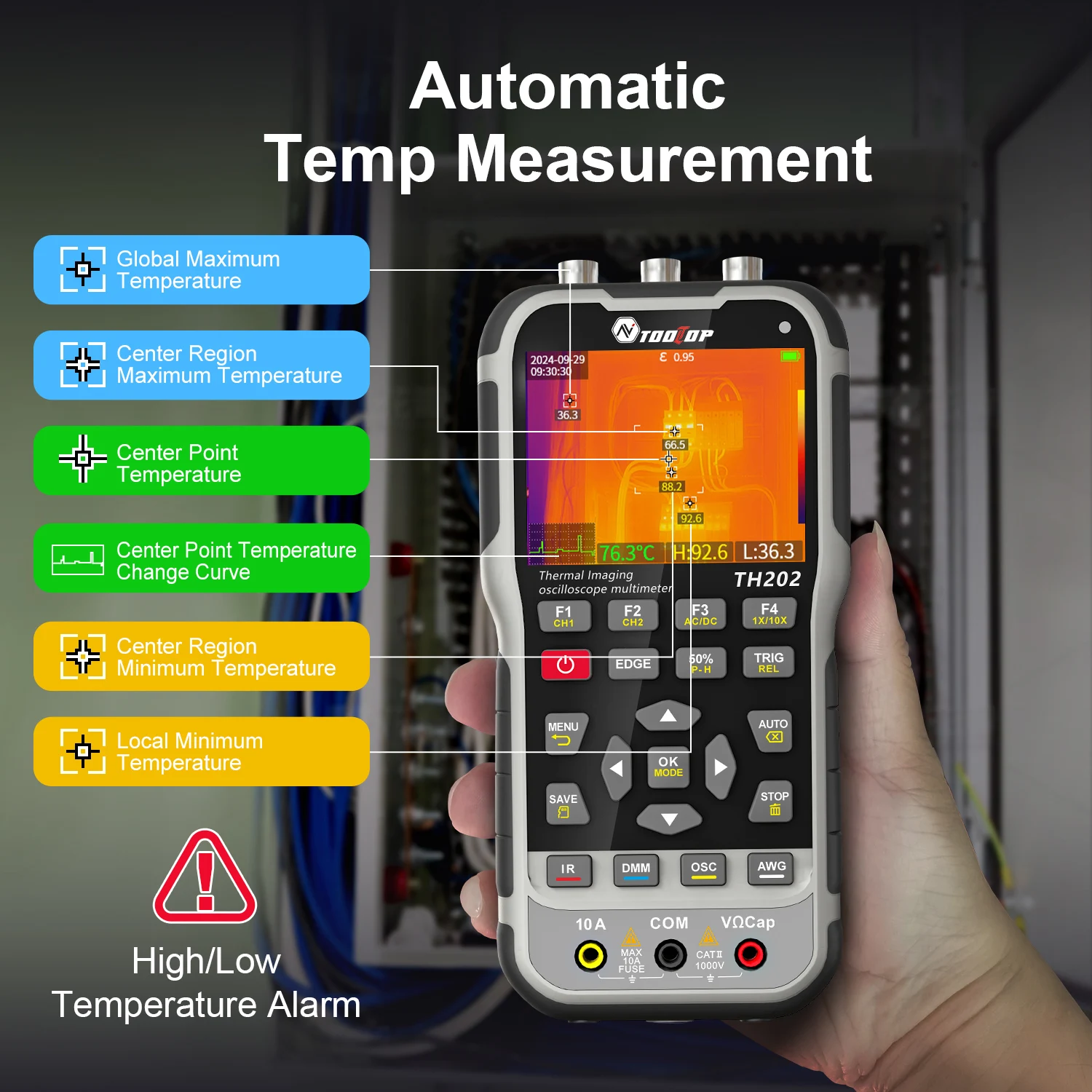

Measurement Points: 5(center,highest,lowest,area max, area min)
lmage Format:JPG (photo), AVl (video)
Storage Capacity:TF card
oszcilloszkóp Parameters
Analog Bandwidth: 80MHz(Single Channel),40MHz(Dual Channel)
Maximum Sampling Rate:200MSa/s
Channels:2
Storage Depth: 2K
Vertical Resolution: 8 bits
Coupling Mode:DC、AC
Input lmpedance: Approx.1M ohm
Trigger Mode:Auto、Normal、 Single
Trigger Edge Selection:Rising / Falling edge
Vertical Sensitivity Range: 10mV/div-10V/div
Vertical Accuracy: ±(5%+ 0.2div)
Voltage Measurement Parameters:Vp-p、Vp、Vmax、Vmin.Vavg、Vrms
Time Measurement Parameters:Freg、Period、 +Width、-Width、+Duty、-Duty
Non-Linearity: ±1 bit
Attenuation:Vertical ±4.0, Horizontal ±6.0
Time Base Range:6ns/div-50s/div. állítható in 1-2-5 steps
Horizontal Accuracy: ±(0.01% + 0.1div)
Automatic Measurement Accuracy: ±(5%+ 0.2div)

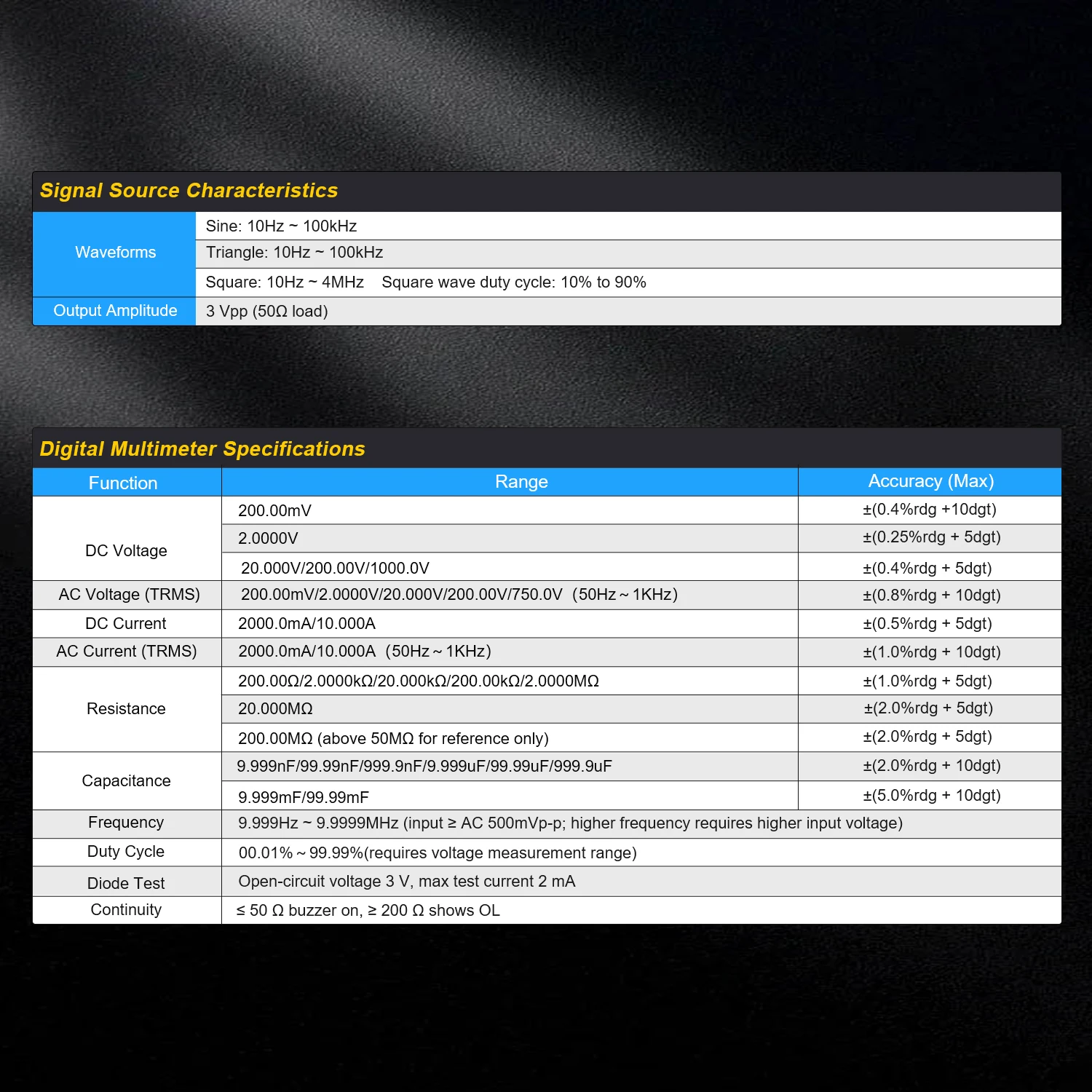

Multimeter Parameters
kijelző: 20000 Counts
DMM Measurement Speed: 3 times/second
DC Voltage: 200.00mV/2.0000V/20.000V/200.00V/1000.0V
AC Voltage(True RMS):200.00mV/2.0000V/20.000V/200.00V/750.0V
DC Current: 2000.0mA/10.000A
AC Current(TrueRMS):2000.0mA/10.000A
Resistance:200.00 ohm/2.0000k ohm/20.000k ohm/200.00k ohm/2.0000M ohm/20.000M ohm/200.00M ohm
Capacitance:9.999nF/99.99nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999mF/99.99mF
Frequency:9.999Hz-9.9999MHz (input ≥ AC 500mVp-p; higher frequency requireshigher input voltage)
Diode Test:Open-circuit voltage approx.3V, maximum test current approx.2mA
Continuity Test: Buzzer sounds at<50 ohm; displays OL at ≥200 ohm
Auto Range Switching: Applicable to all measurement functions
Overrange Indication: O.L(Over load)
Dynamic Data Window: Continuously refreshes to kijelző real-timemeasurement data
Fuse :10A/250V

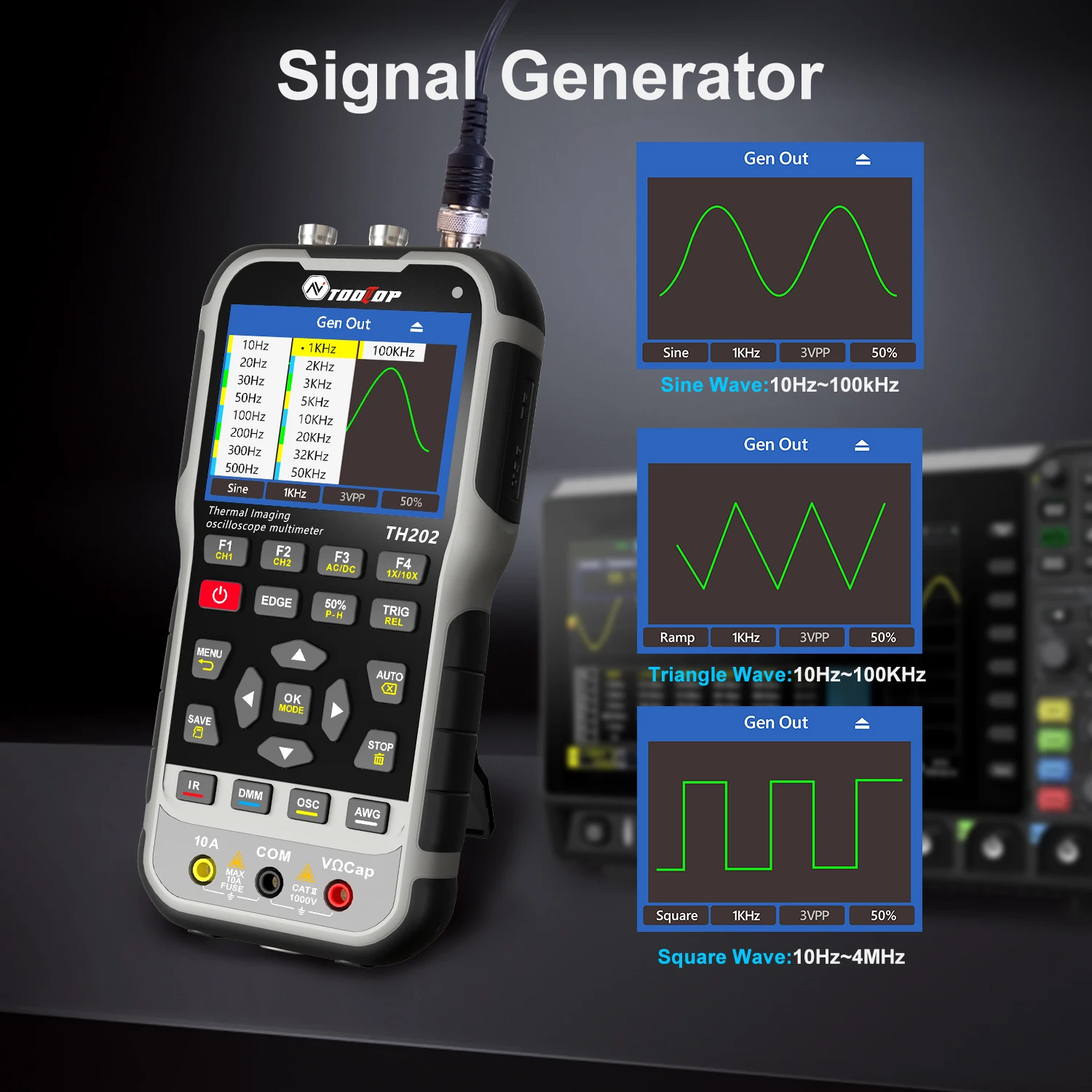

Signal Source Parameters
Waveform Frequency
Sine Wave:10Hz-100kHz(1-2-3-5 step mode)
Triangle Wave:10Hz-100kHz(1-2-3-5 step mode)
Square Wave:10Hz-4MHz (5MHz for reference only)(1-2-3-5 step mode)
Square Wave Duty Cycle:10%-90%(állítható in 10% increments, 1-2-3-5 step mode)
Output Voltage: 3Vpp (output impedance approx.50 ohm)
Other Parameters
kijelző: 320x240; 3.2-inch TFT color screen
Backlight Brightness: 1-8 levels állítható
Battery: 3000mAh újratölthető lithium battery
Low Battery Indicator: Support
Operating Time: About 5 hours
Operating Environment: 0 deg C-+40 deg C; <75%RH
Overall Dimensions: 173mmx89mmx38mm
Silent Mode: Supported
Auto Power-off: 5min-60min or disabled
Power : DC5V/2A ( charger not Included)
Storage Capacity: DMM: 2000 records; OSC: 2000 waveforms
Storage Environment: -10 deg C-+60 deg C; <90%RH
Weight: 296g/10.4 0z (0.65 lb)(excluding accessories)

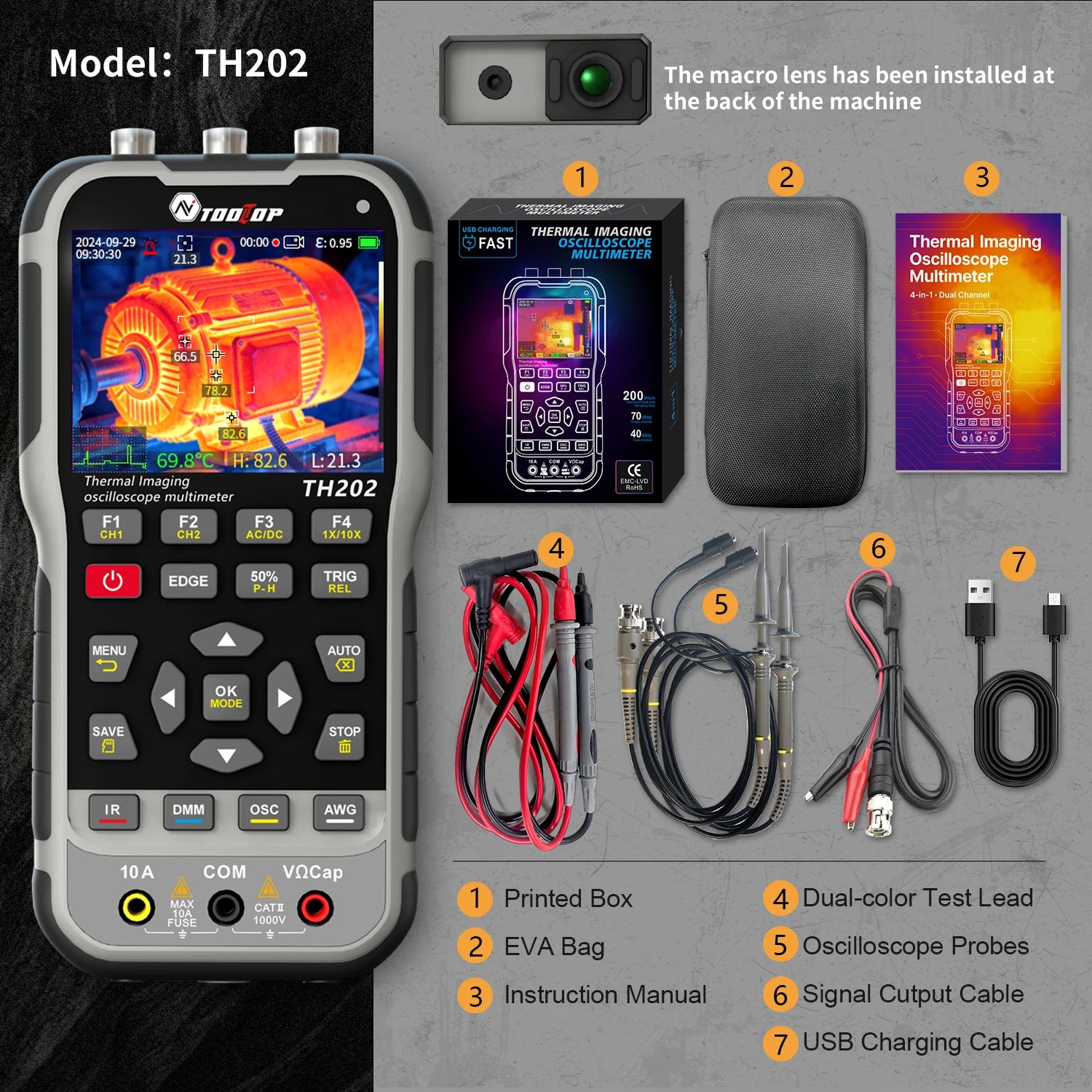

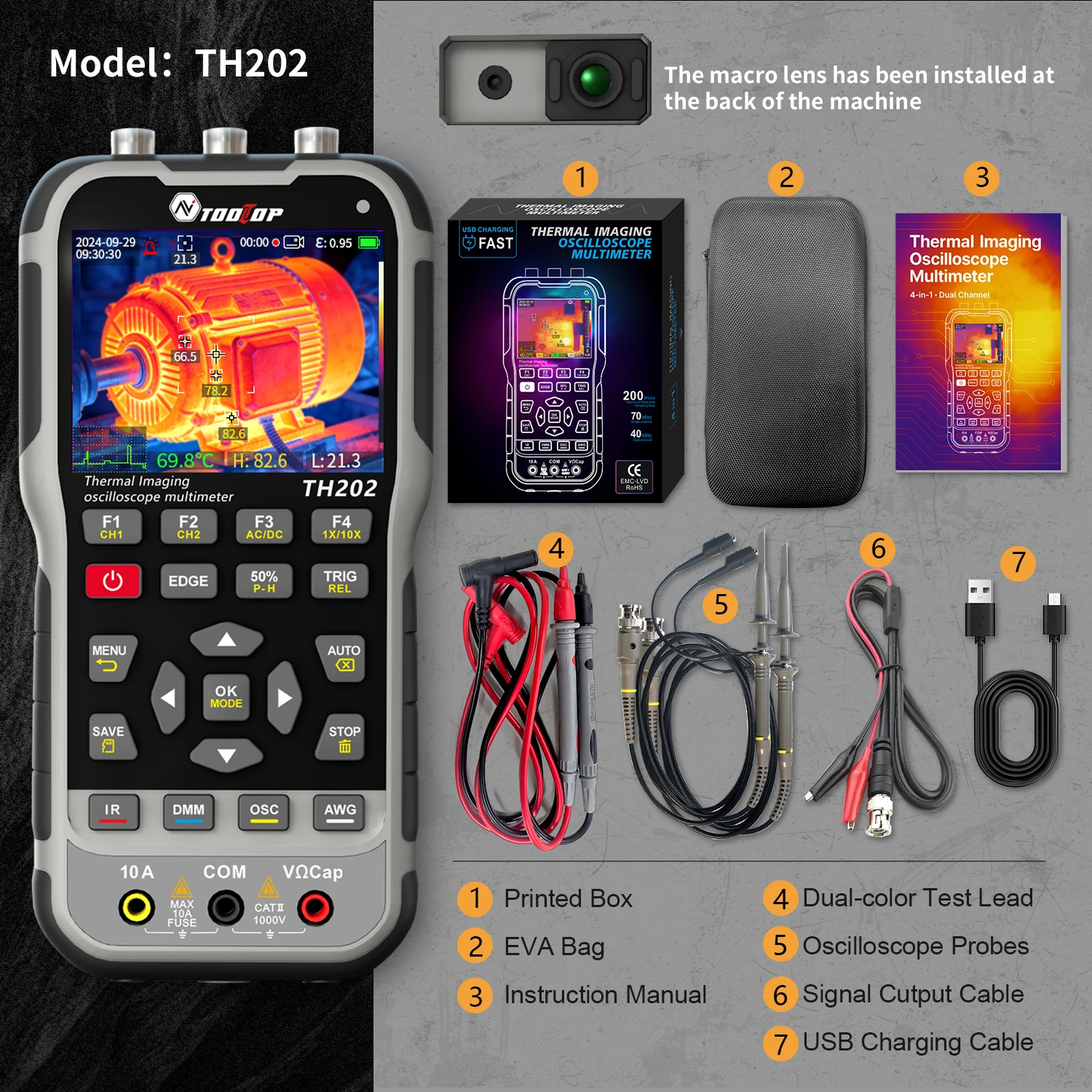

készlet List:
1 x Thermal Imager oszcilloszkóp
2 x oszcilloszkóp Probes
1 x One Pair Test Leads
1 x BNC to Alligator Clip Cable
1 x USB Cable
1 x EVA Bag
1 x English User Manual
