Termékösszefoglaló
TOOLTOP ET32 Digitális Circuit Breaker Finder & Socket Tester with GFCI Trip Time kijelző EU is a digitális measurement tool selected for measuring voltage, current, resistance and common electrical parameters. Alkalmas a következőkhöz electricians, repair users and electronics hobbyists akiknek megbízható projektekhez praktikus elektronikai hardverre van szükségük.
Ideális ezekhez
- measuring voltage, current, resistance and common electrical parameters
- electronics repair, home electrical checks and bench testing
- elektronikai teszteléshez, javításhoz, prototípus-készítéshez és maker munkafolyamatokhoz
GYIK
Kinek szól ez a termék? Ez a termék a következőknek készült electricians, repair users and electronics hobbyists.
Mit ellenőrizzek vásárlás előtt? Tekintse meg ezen az oldalon a termékváltozatokat, műszaki adatokat, a csomag tartalmát és a kompatibilitási részleteket.

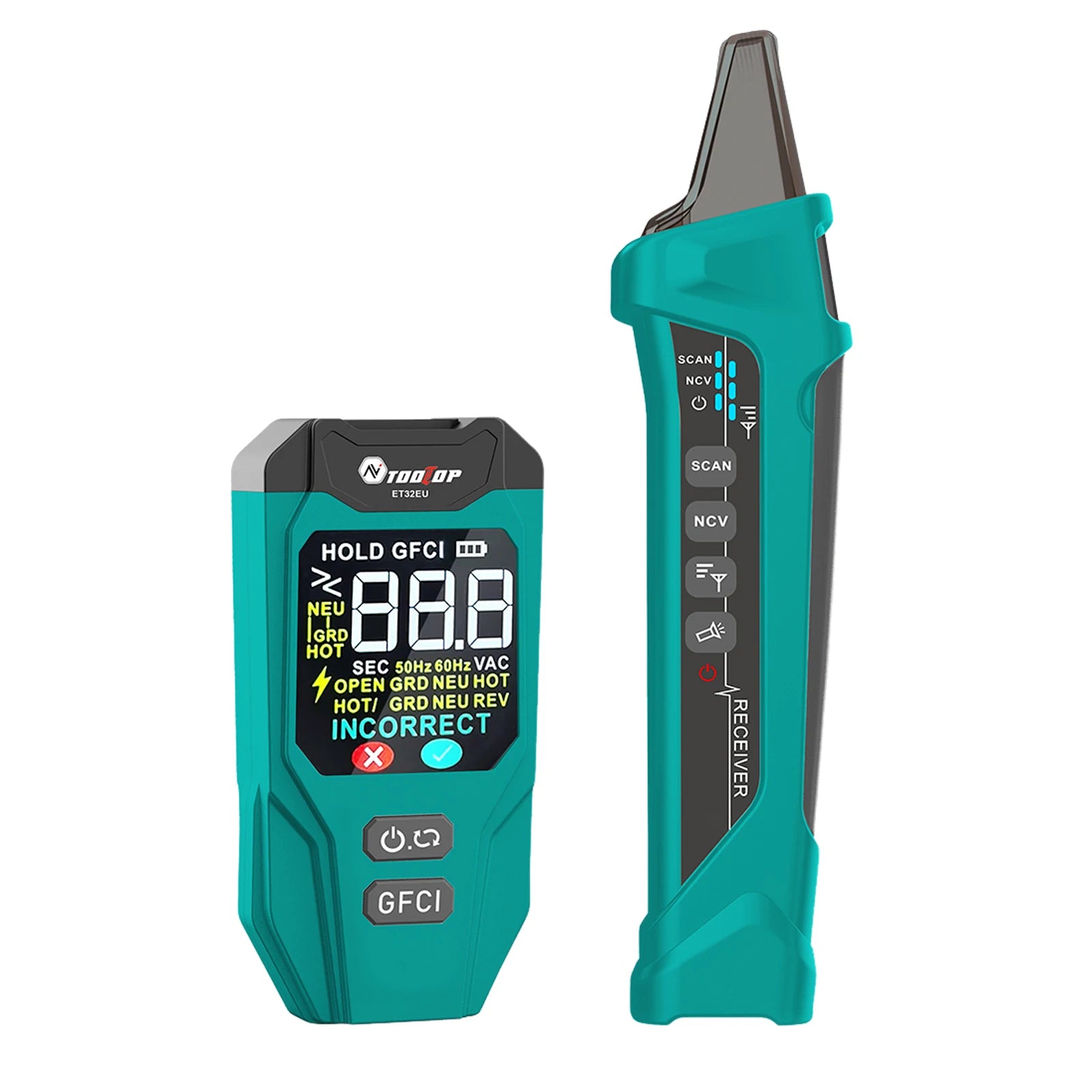

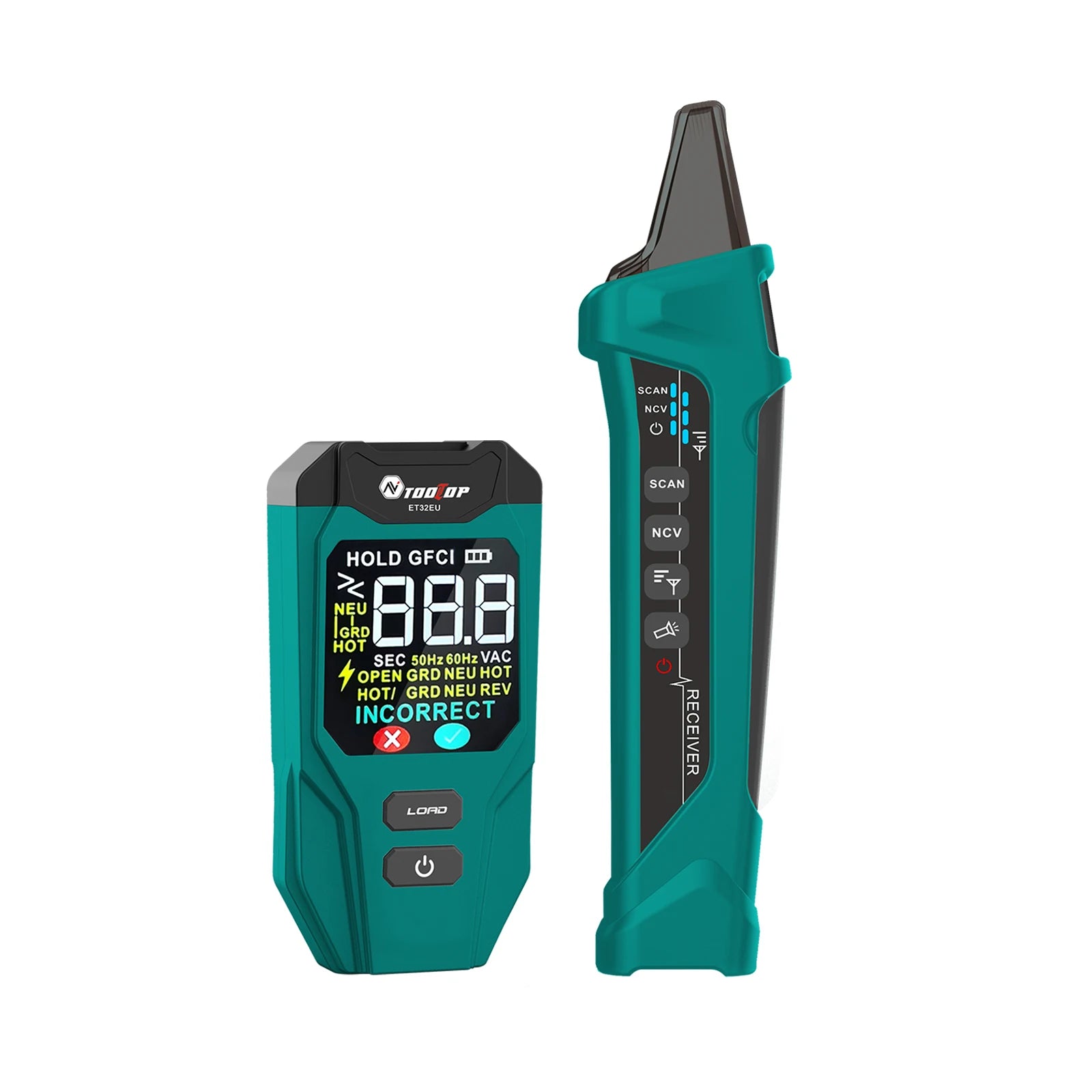

Digitális Circuit Breaker Finder & Socket Tester with GFCI Trip Time kijelző, AI-Powered Precision Breaker Tracker with újratölthető Battery, VA Color LCD, NCV & állítható Sensitivity(Green)(US Plug)
Key Features:

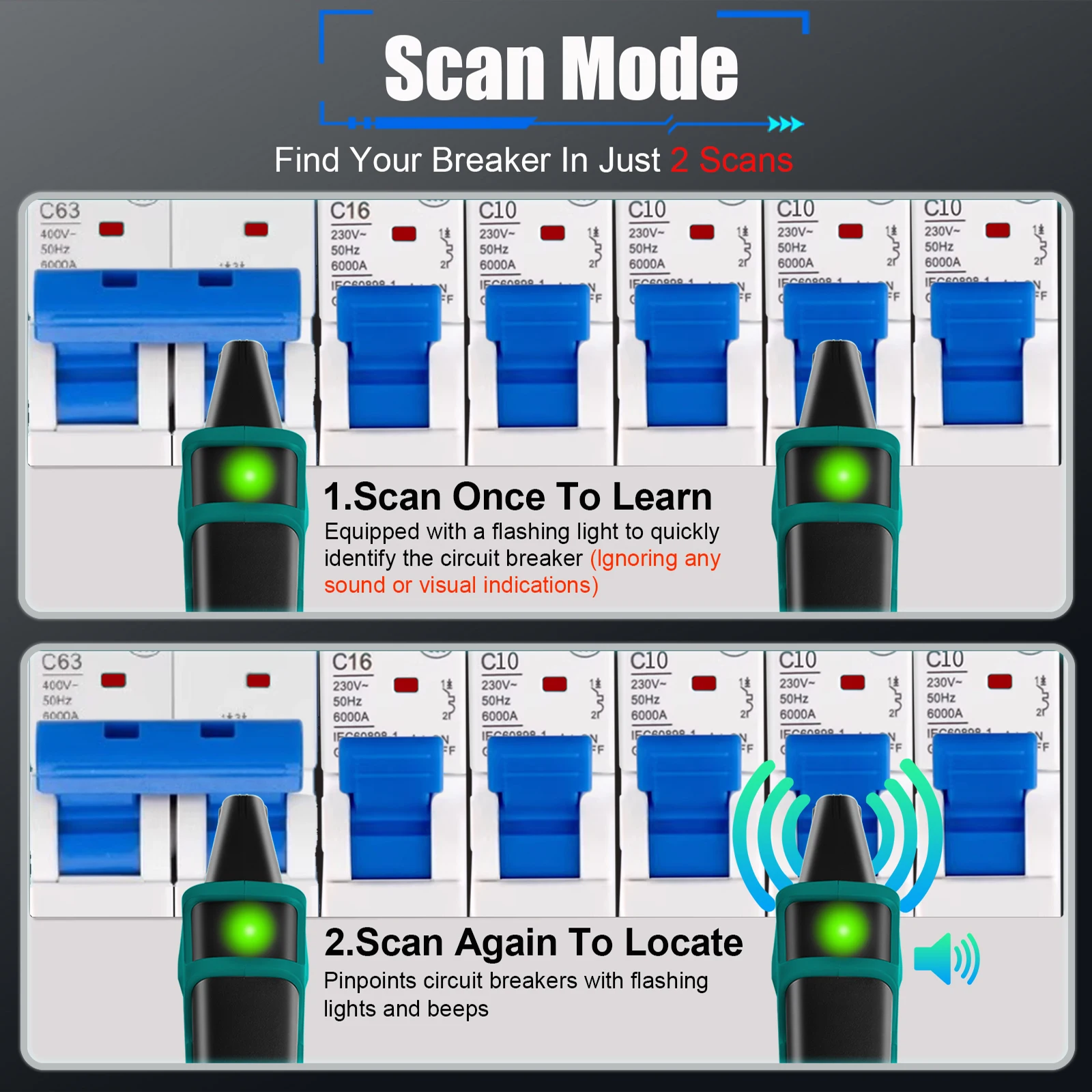

AI-Powered Precision Tracking: Features an advanced chip with Intelligent AI Mode that significantly improves efficiency and accuracy. Easily locate the correct circuit breaker associated with any outlet or fixture without guesswork.

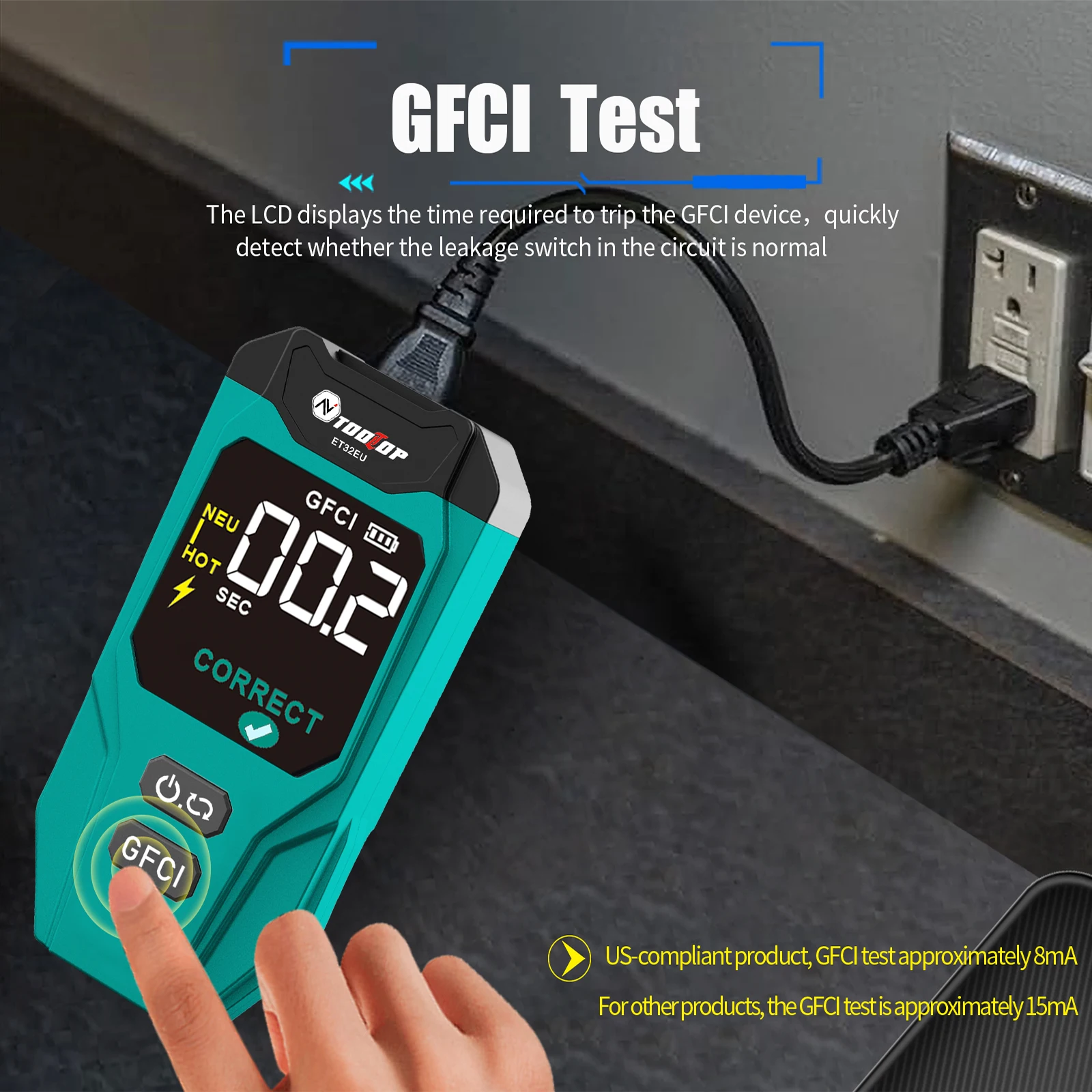

Advanced GFCI Testing & Trip Time: Beyond standard socket testing, this tool measures the actual disconnect response time of GFCI breakers, providing critical safety data for professional electricians and home inspections.

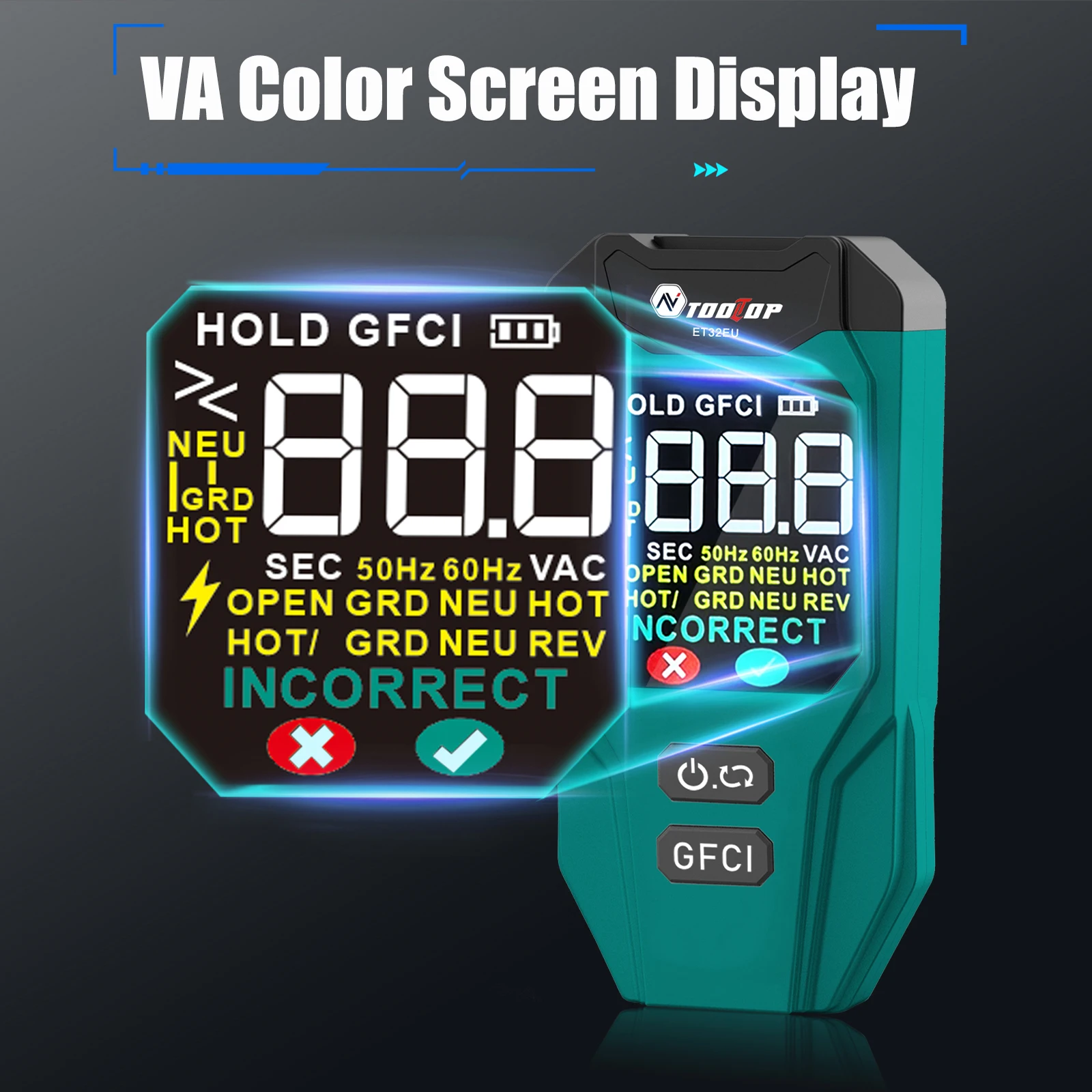

VA Color LCD & Voltage Readout: The vibrant VA color kijelző provides real-time readouts of Line-to-Neutral and Neutral-to-Ground voltages, along with clear visual status indicators for wiring conditions.

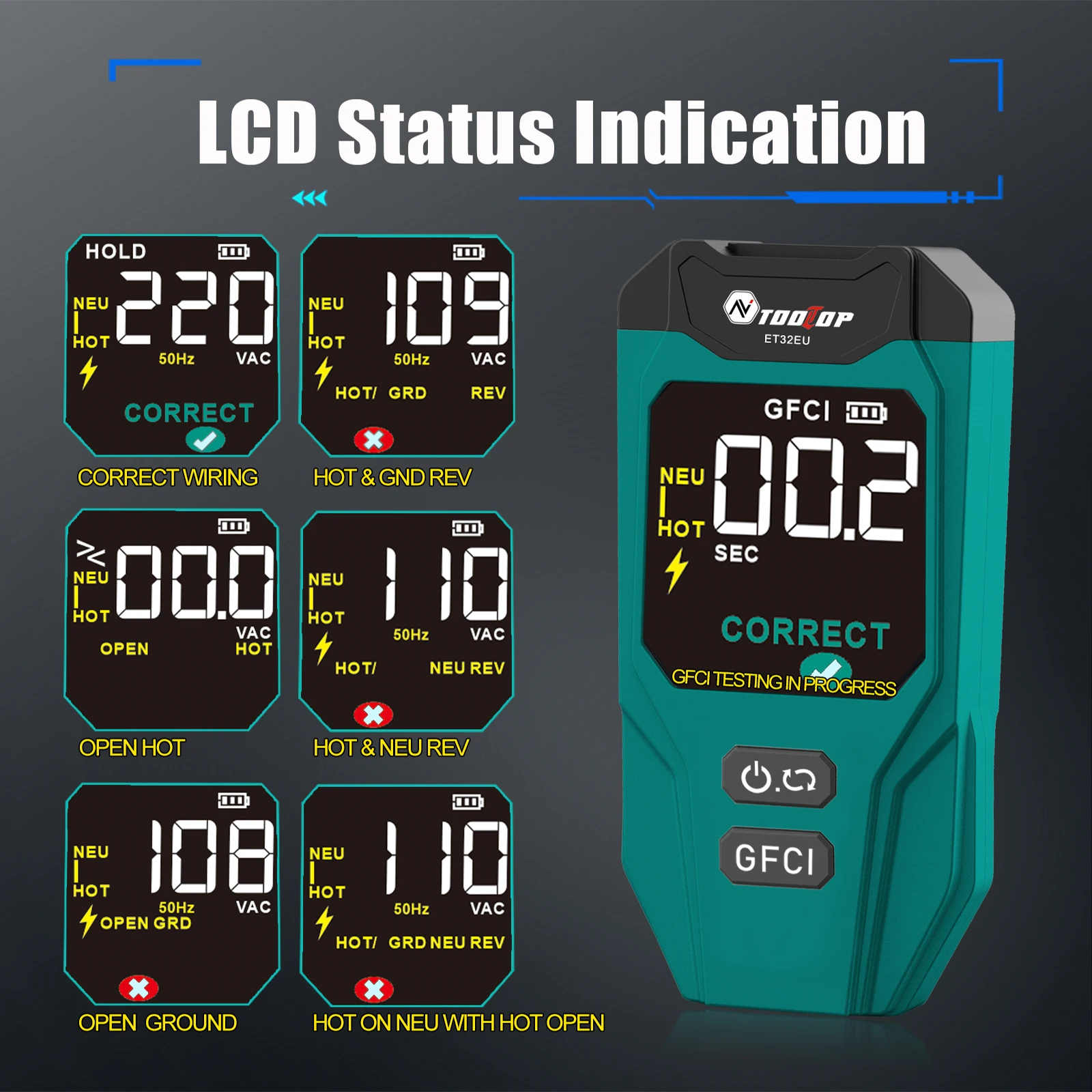

Comprehensive Wiring Diagnostics: Instantly identifies common wiring faults including Open Lead, Open Ground, Hot/Neutral Reverse, and Hot/Ground Reverse with "Normal/Error" status prompts.
újratölthető & Eco-Friendly: Both the adó and vevő are powered by built-in 800mAh 3.7V újratölthető lithium batteries, saving you money on disposable batteries while supporting environmentally friendly operation.

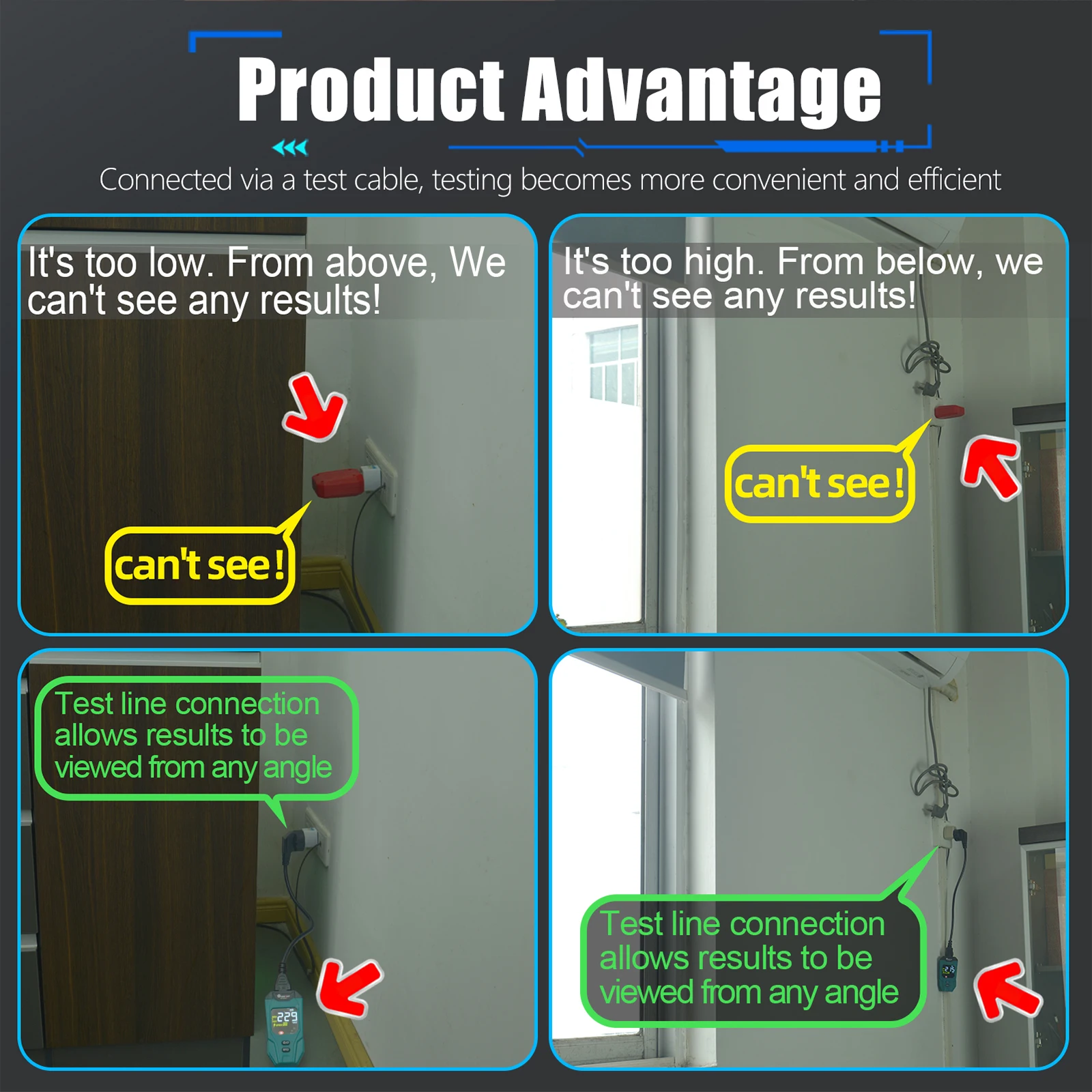

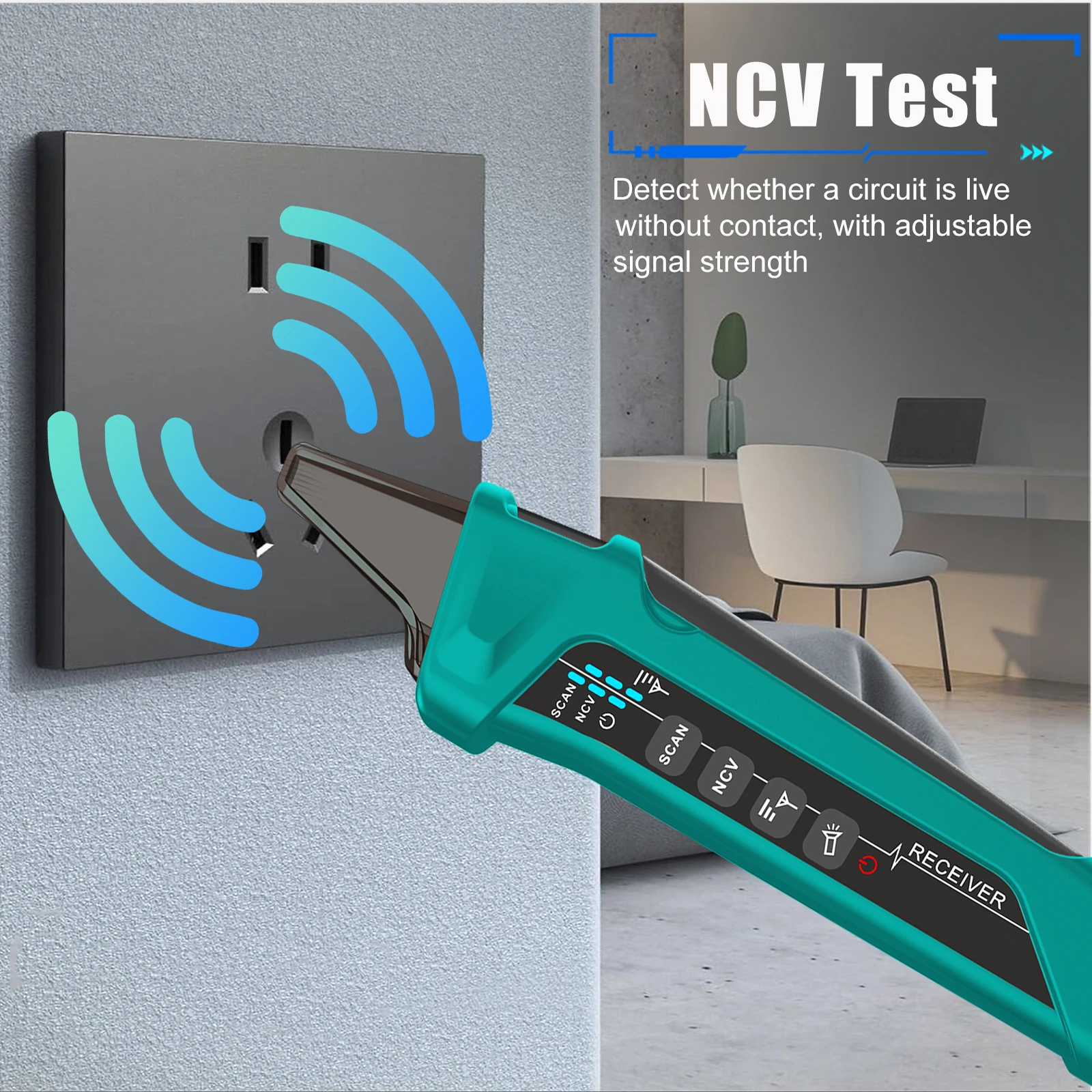

Safety & Versatility: Equipped with an NCV (Non-Contact Voltage) sensor (90V-1000V) for added safety, állítható sensitivity for complex environments, a built-in work light, and an extension cord design to reach any outlet position.

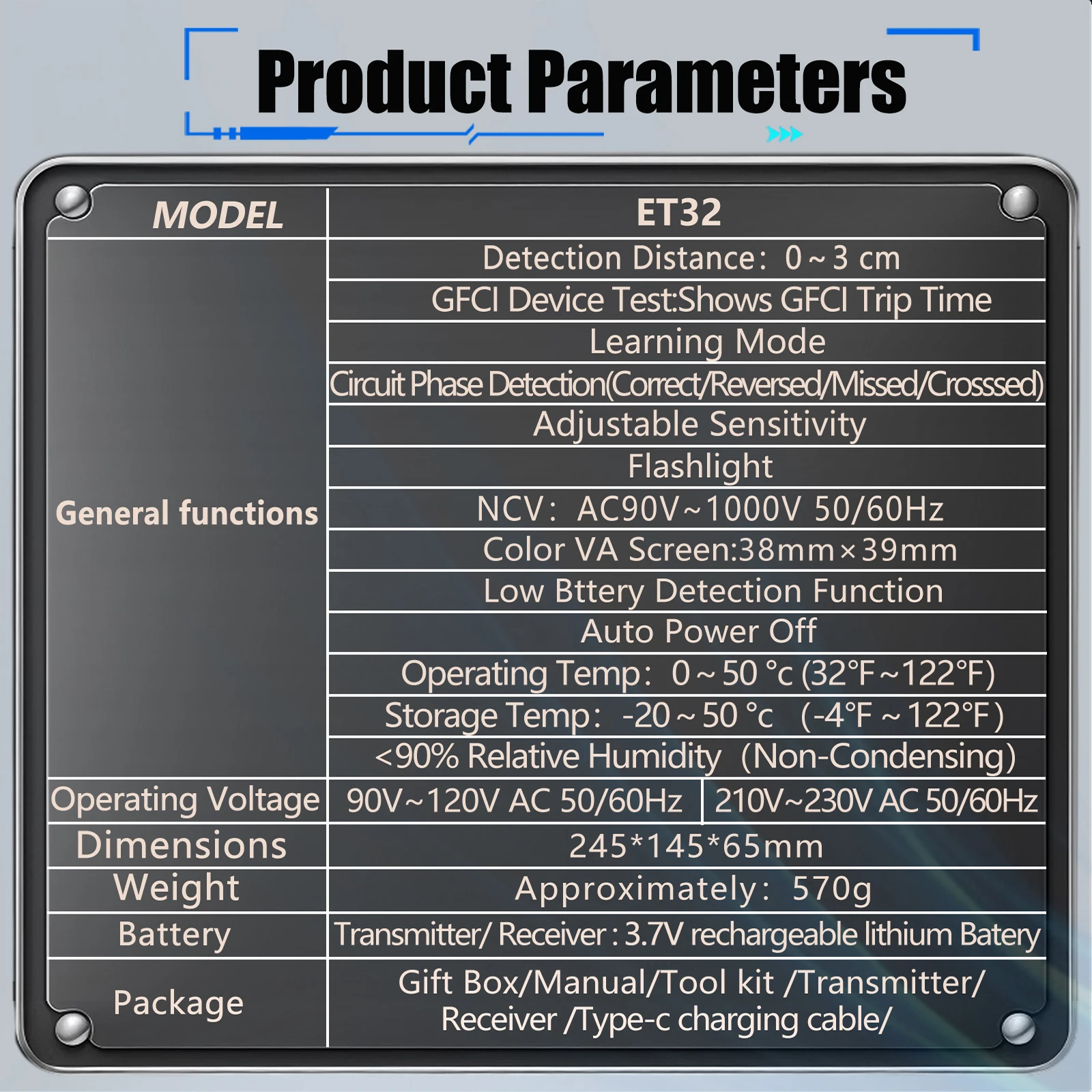

Specifications:
Breaker Detection Range: 0 - 3 cm

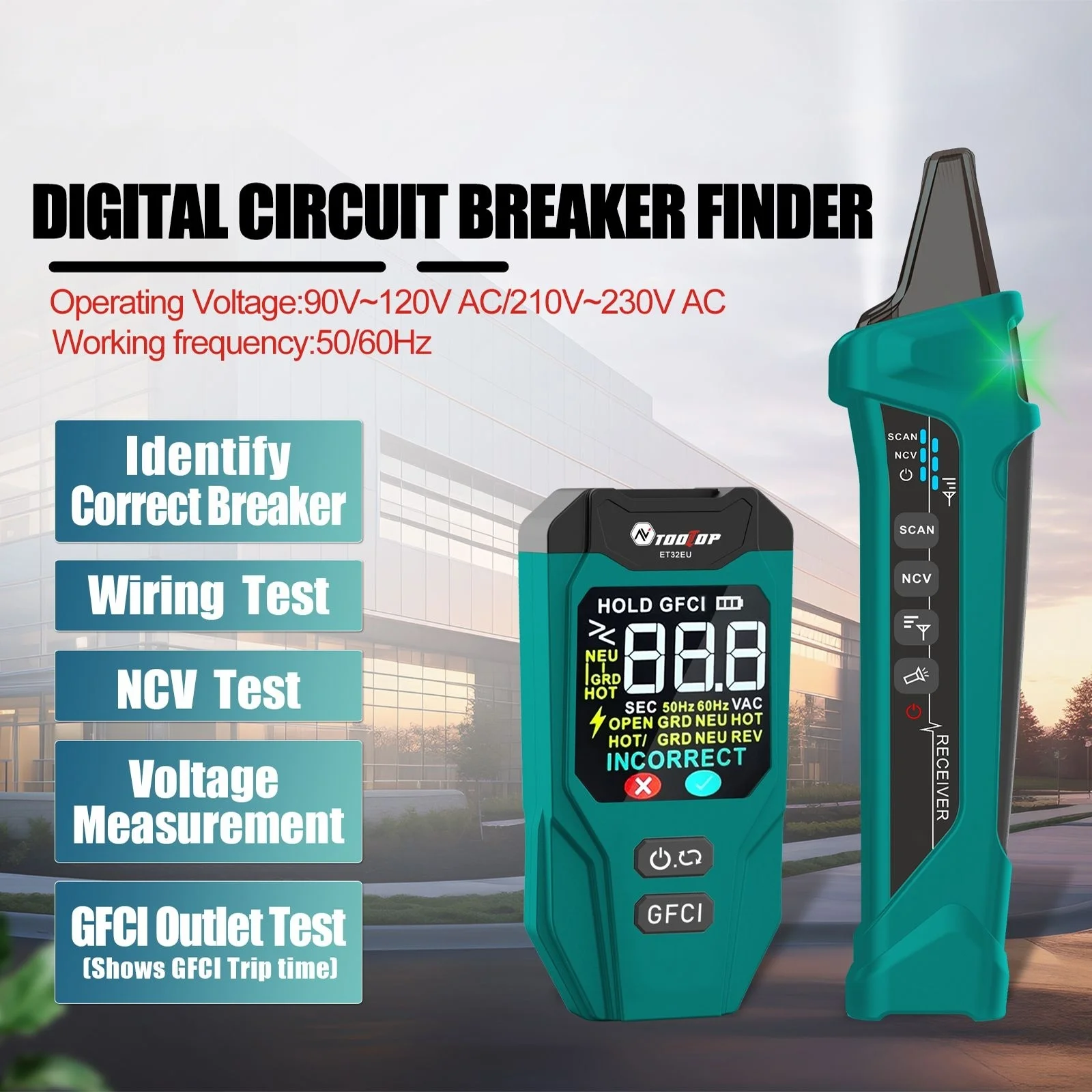

Operating Voltage: AC 90V - 120V (50/60Hz)

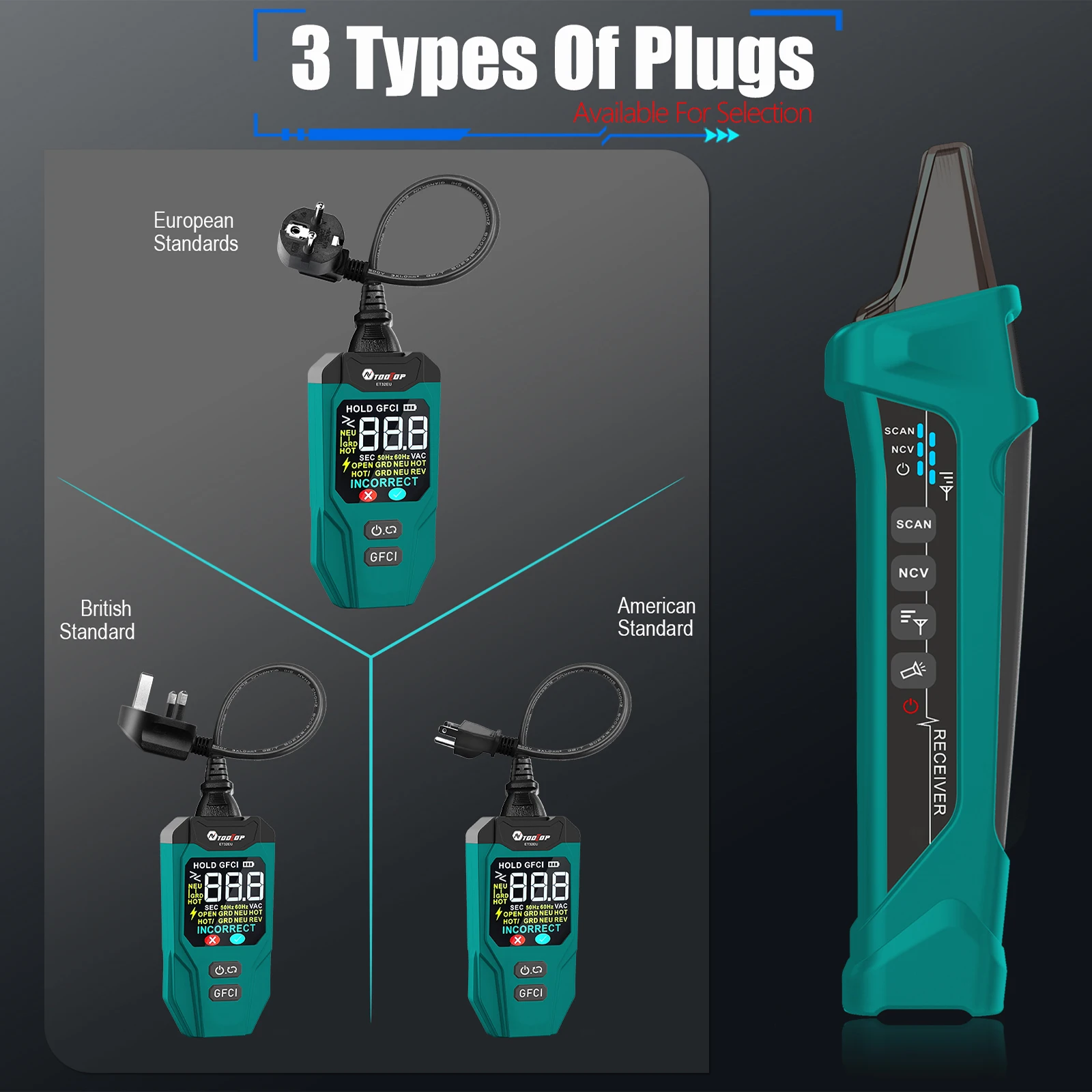

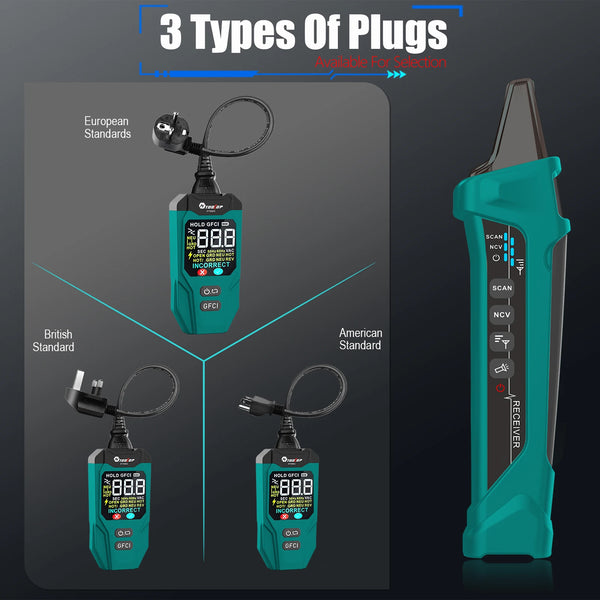

Standard Plug Type: US Standard
GFCI Test: Yes (Displays Trip Response Time)
kijelző Type: VA Color LCD with 0-3 bar Battery Indicator
Line Voltage Measurement: Hot-Neutral / Neutral-Ground Voltage
Wiring Fault Detection: Open Hot, Open Ground, Hot/Neutral Cross, Hot/Ground Cross
Leakage Search Modes: Learning Mode / Standard Mode
NCV Testing Range: AC 90V - 1000V (50/60Hz)
Battery Capacity: 800mAh 3.7V Lithium Battery (adó & vevő)
Operating Current: adó: -80mA / vevő: -150mA
Safety Features: állítható Sensitivity, Built-in LED Flashlight, Audible/Visual Indicators
Dimensions: 240 x 145 x 65 mm
Operating Environment: 0 deg C - 50 deg C; <85% Humidity

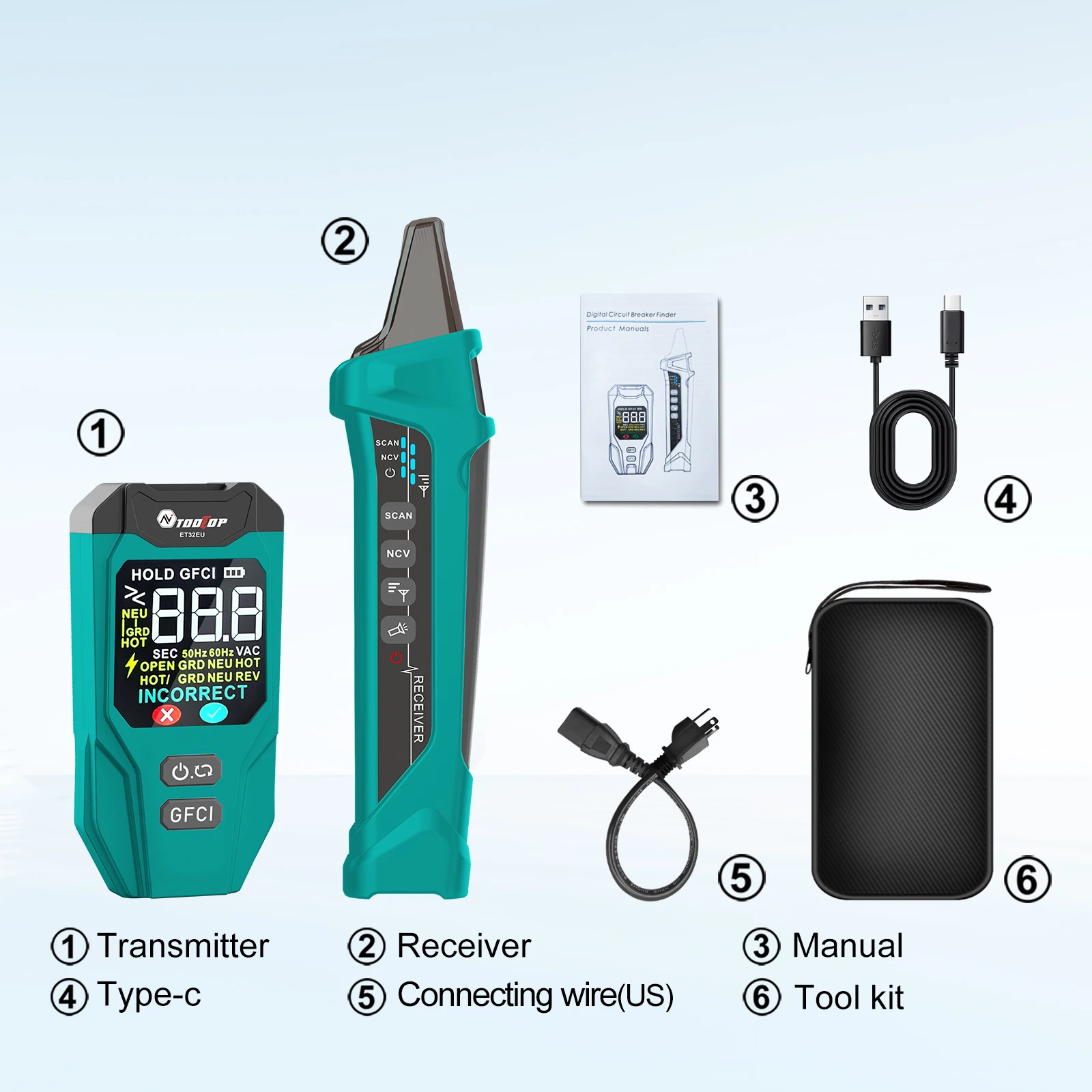

készlet List:
1 x Circuit Breaker vevő
1 x Circuit Breaker adó
1 x Power Cord with Socket Extension Design
1 x USB Charging Cable
1 x User Manual
1 x Durable Carrying Tool Bag
1 x Premium Color Gift Box
