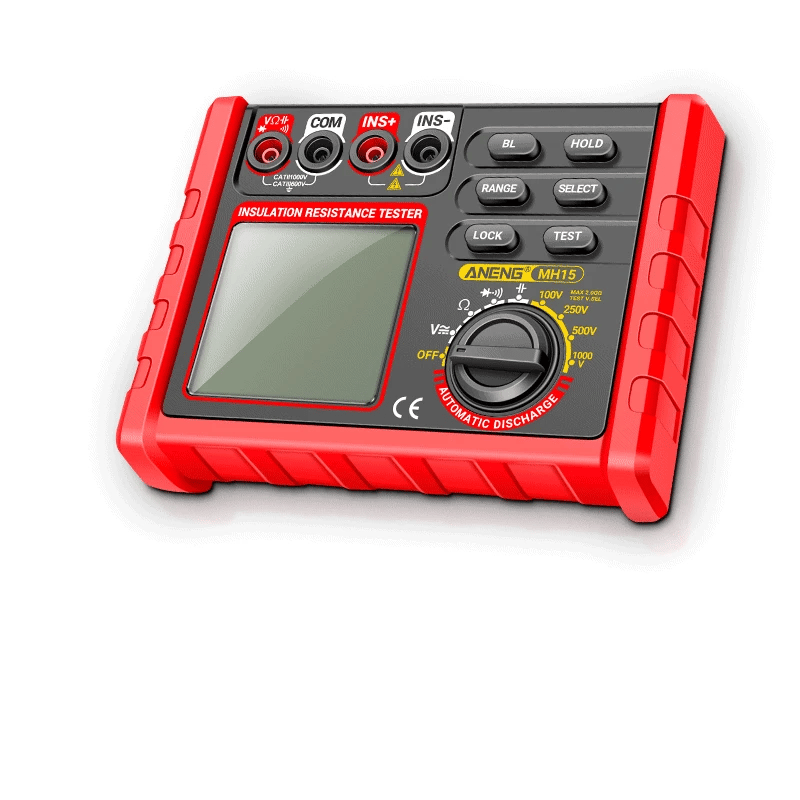

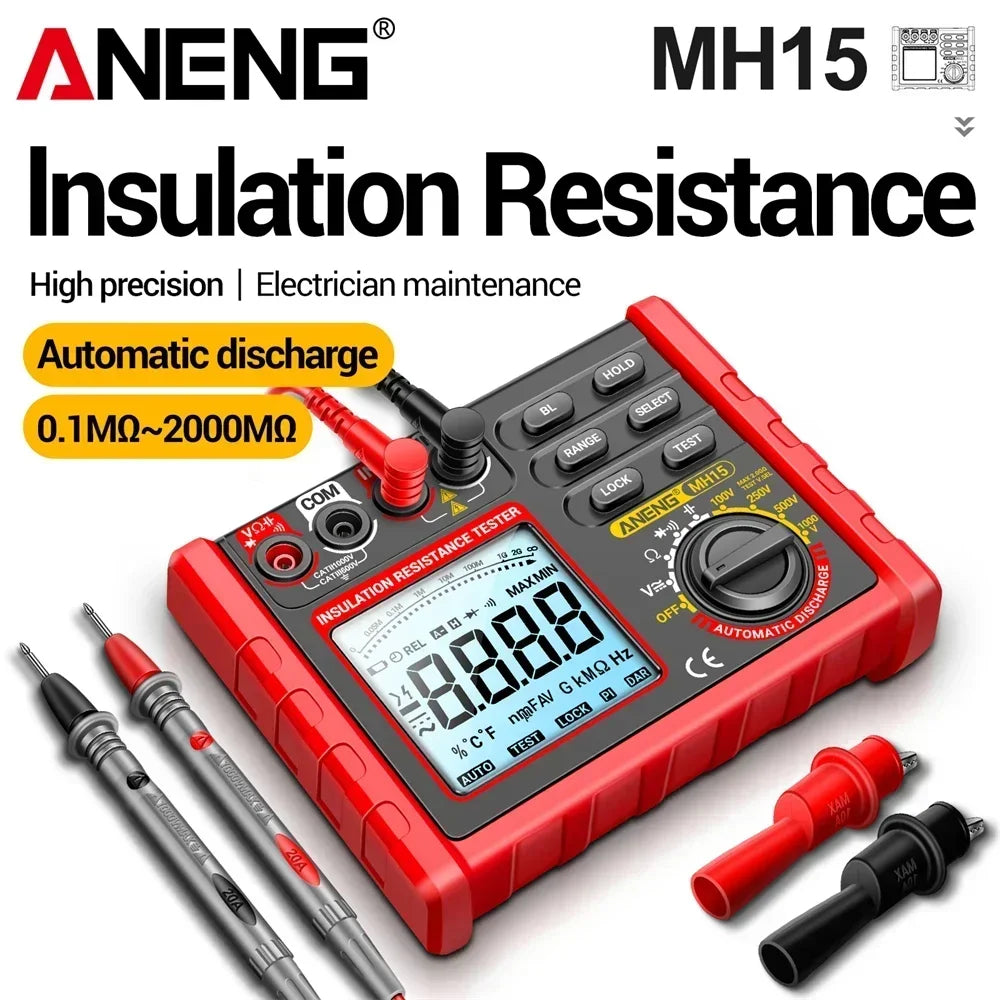

A NENG MH15 Digital Ohmmeter Insulation Resistance 6000 Count Resistor Testers Capacitor Test Megohmmeter High Voltage Tool
General:

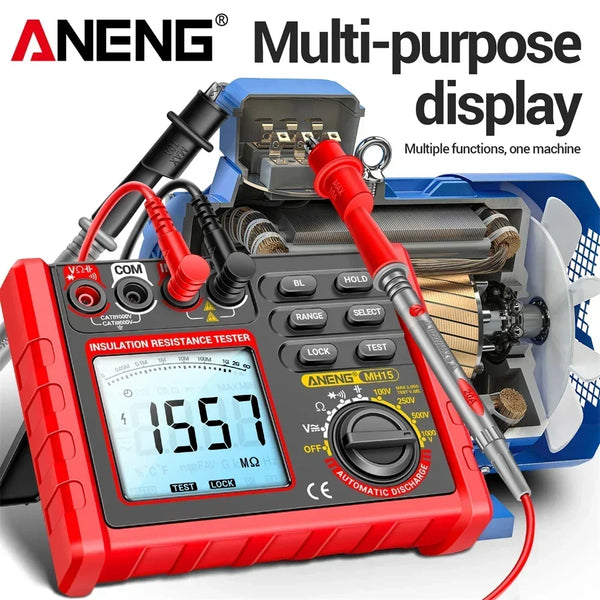

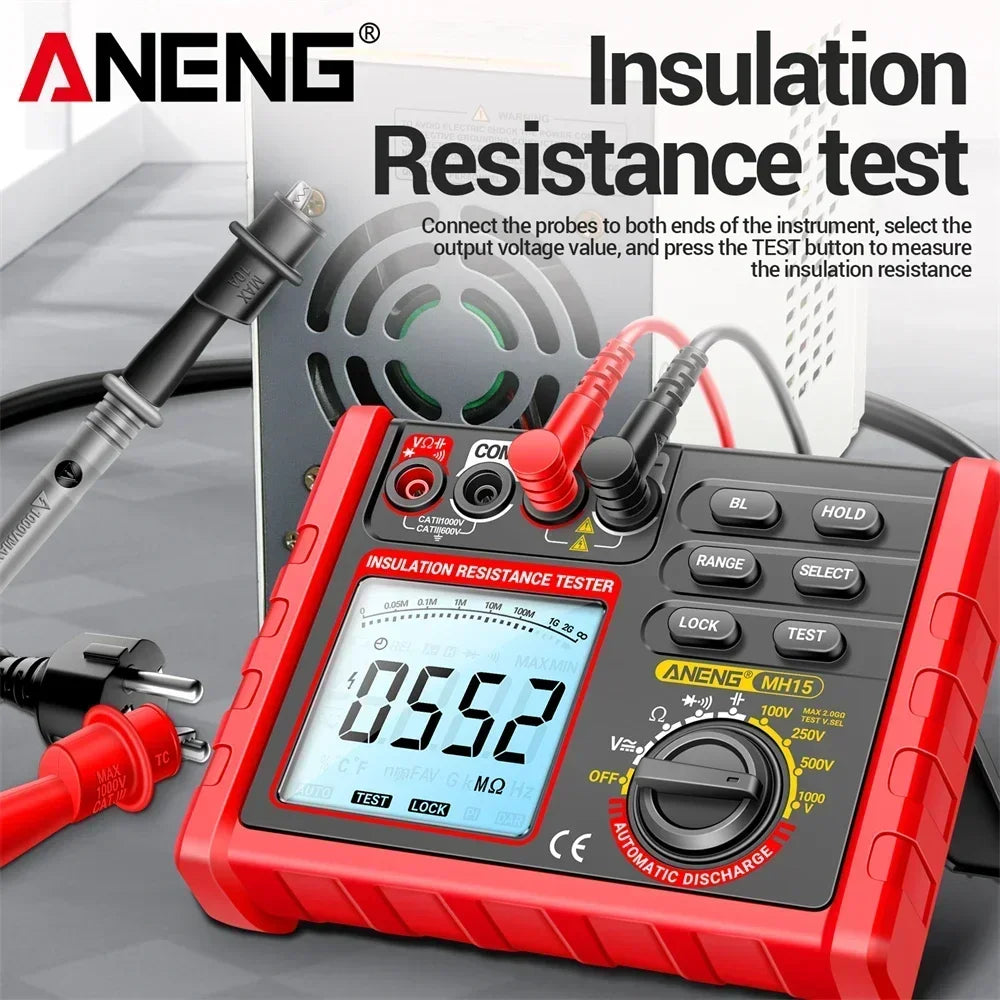

This instrument is a battery powered insulation resistance tester that can be used to measure DC voltage, AC voltage, resistance, on-off, diode and insulation resistance. When measuring insulation resistance, there are four test voltages to choose from: 100V, 250V, 500V and 1000V. This instrument has polarity indication, over range indication, data retention, automatic retention and other functions. It is simple to use and is a precision measuring instrument.

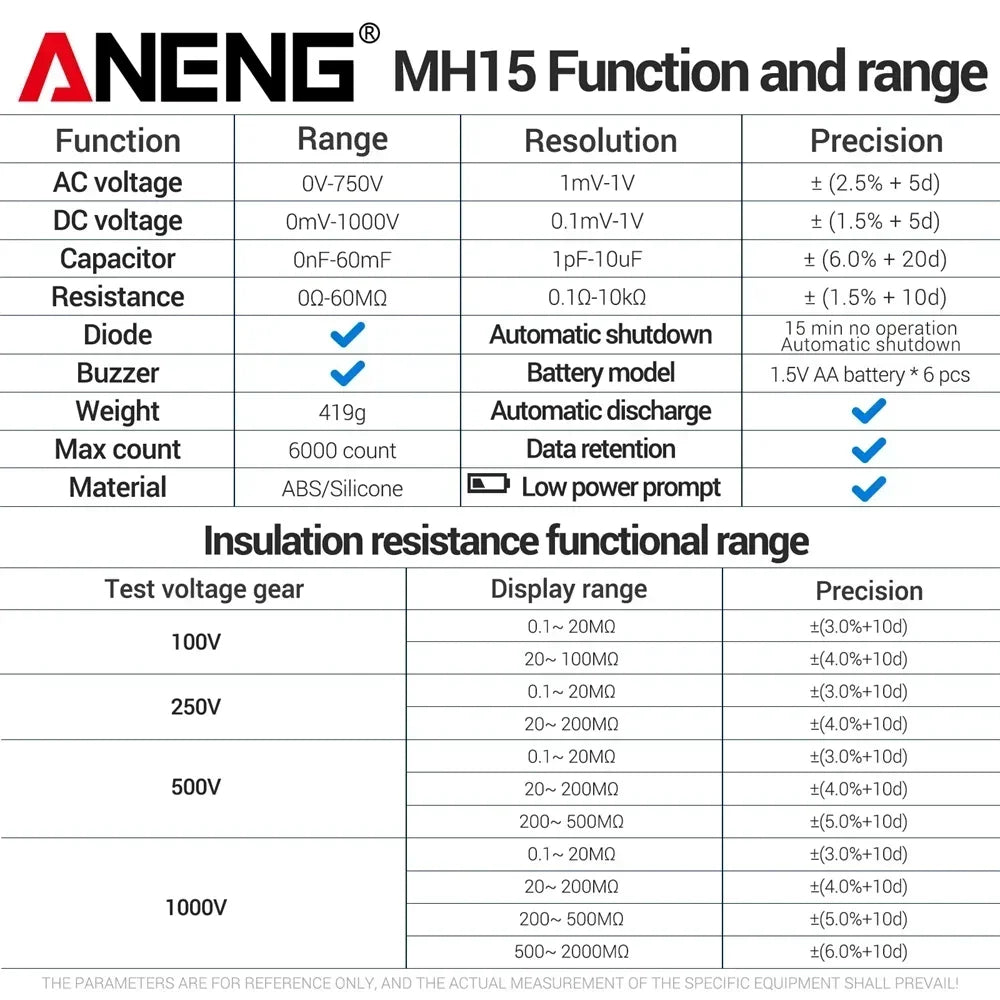

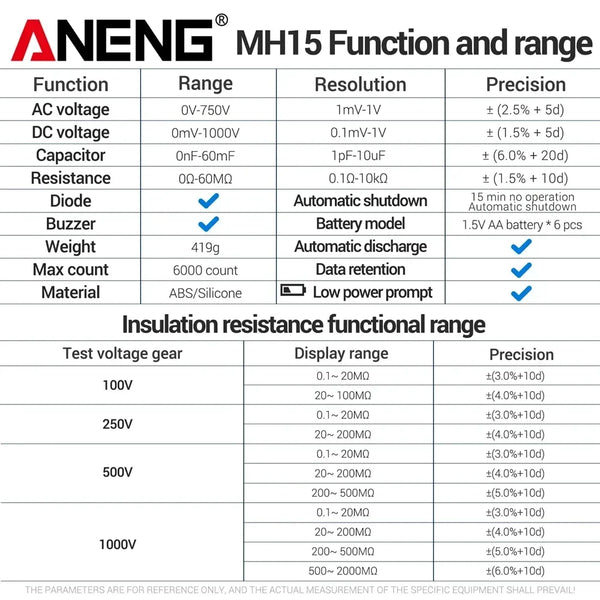

Insulation resistance functional range
|
Function |
Range |
Resolution |
Precision |
|
AC voltage |
0V-750V |
1mV-1V |
±(2.5%+5d) |
|
DC voltage |
0mV-1000V |
0.1mV-1V |
±(1.5%+5d) |
|
Capacitor |
0nF-60mF |
1pF-10uF |
±(6.0%+20d) |
|
Resistance |
0Ω-60MΩ |
0.1Ω -10kΩ |
±(1.5%+10d) |
|
Diode |
√ |
Automatic shutdown |
15 min no operation Automatic shutdown |
|
Buzzer |
√ |
Battery model |
1.5V AA battery*6 pcs (without shipment) |
|
Weight |
419g |
Automatic discharge |
√ |
|
Max count |
6000 count |
Data retention |
√ |
|
Material |
ABS/Silicone |
Low power prompt |
√ |
|
Test voltage gear |
Display range |
Precision |
|
100V |
0.1~20MΩ |
±(3.0%+10d) |
|
20~100MΩ |
±(4.0%+10d) |
|
|
250V |
0.1~20MΩ |
±(3.0%+10d) |
|
20~200MΩ |
±(4.0%+10d) |
|
|
500V |
0.1~20MΩ |
±(3.0%+10d) |
|
20~200MΩ |
±(4.0%+10d) |
|
|
200~500MΩ |
±(5.0%+10d) |
|
|
1000V |
0.1~20MΩ |
±(3.0%+10d) |
|
20~200MΩ |
±(4.0%+10d) |
|
|
200~500MΩ |
±(5.0%+10d) |
|
|
500~2000MΩ |
±(6.0%+10d) |
THE PARAMETERS ARE FOR REFERENCE ONLY,AND THE ACTUAL MEASUREMENT OF THE SPECIFIC EQUIPMENT SHALL PREVAIL

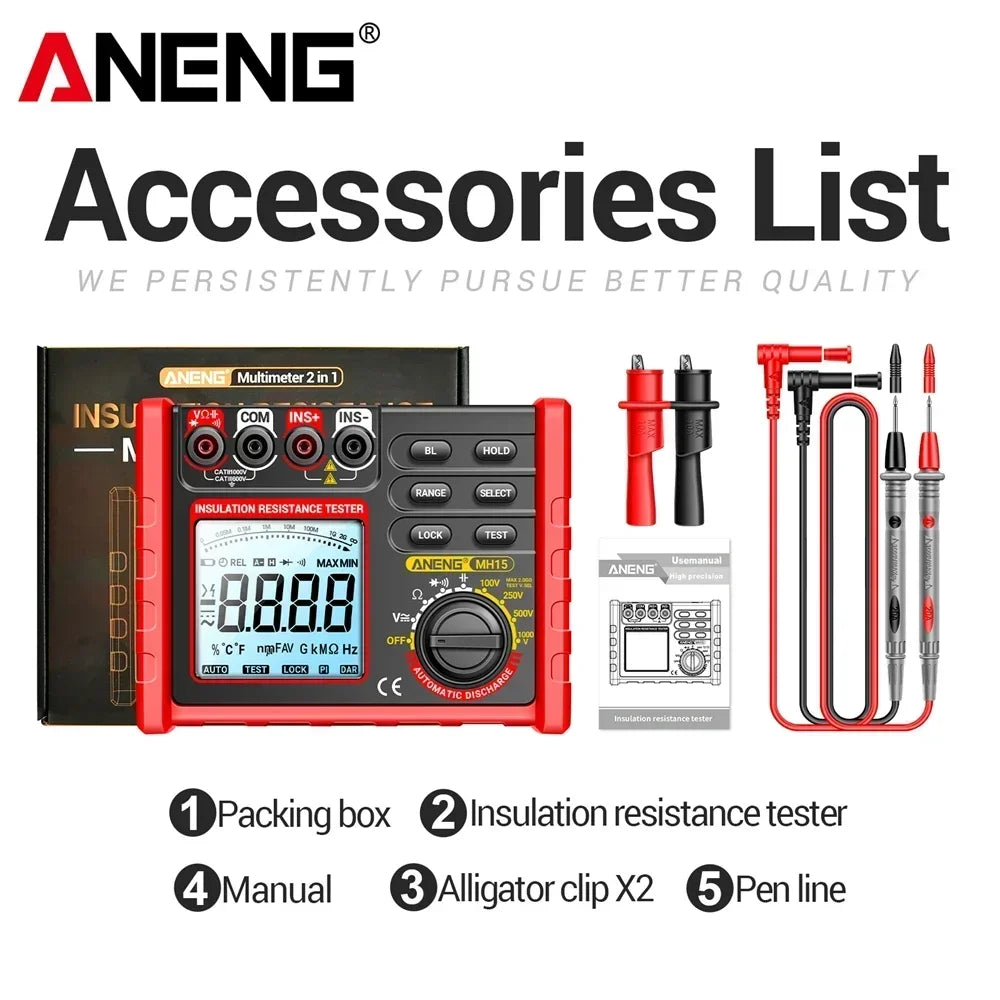

The packaging includes:(Without Battery)
1 * Packaging box
1 * Resistance megohmmeter

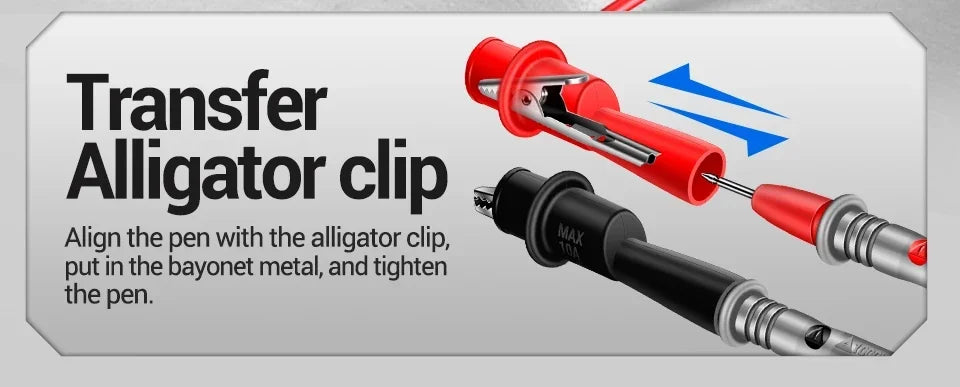

1 * Crocodile clip
1 *storage bag
1 * User Manual
1 * Test lead
