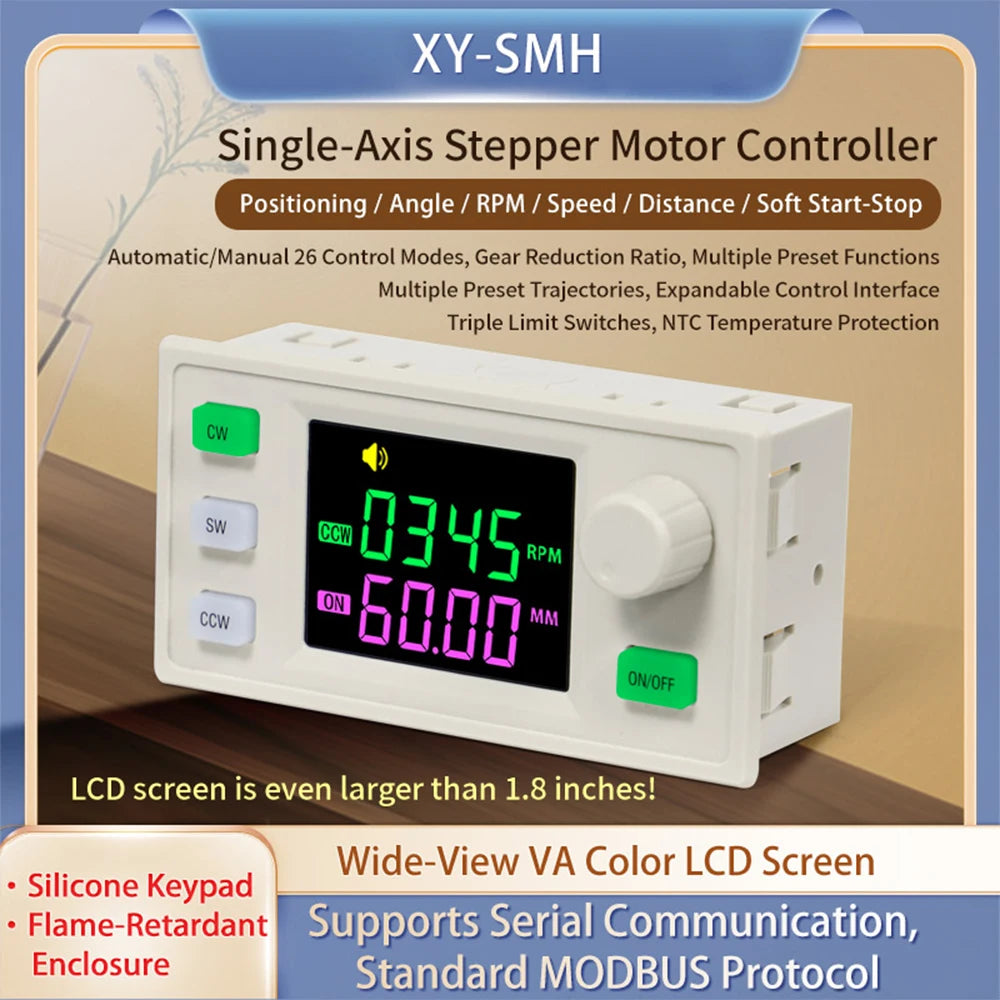

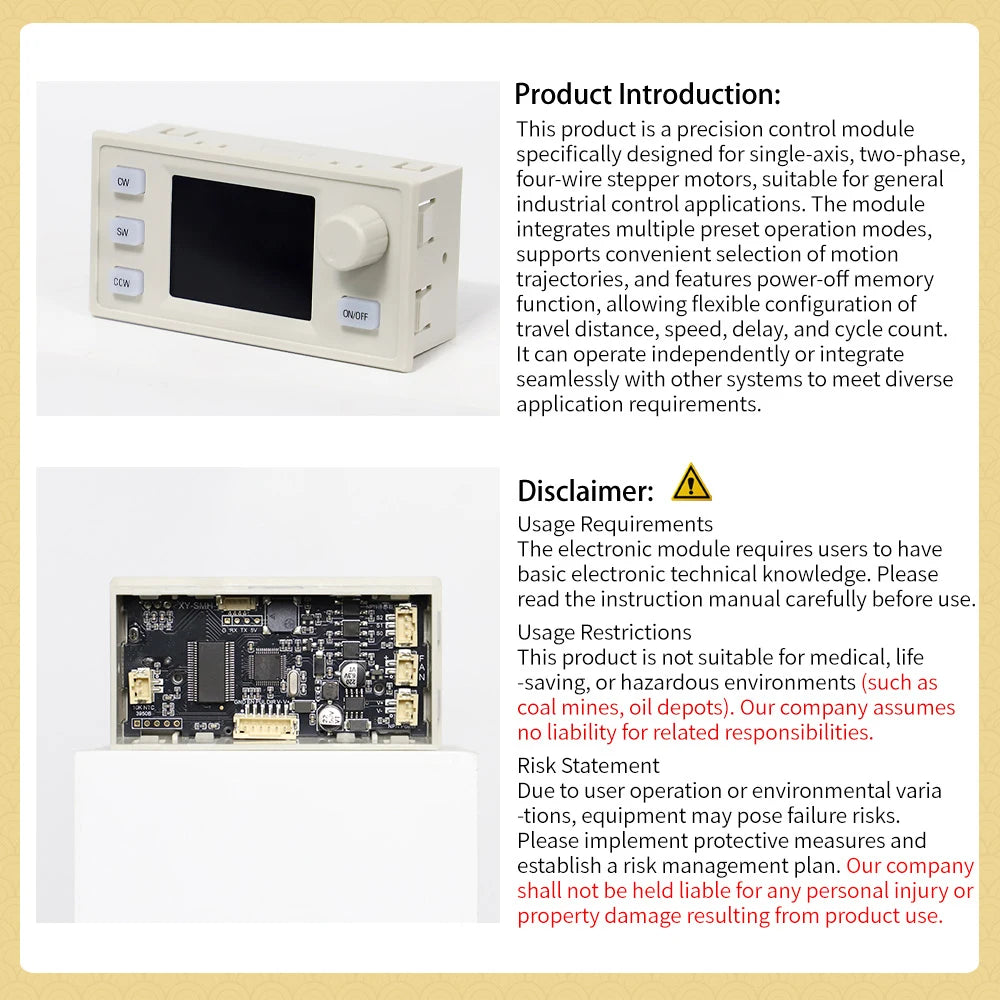

XY-SMH Stepper Speed Motor Controller PLC Forward and Reverse Rotation Pulse Delay Controller Power Supply
Features
1. Rich built-in operating modes, covering various standard motion profiles
2. Power-off save function ensures settings are retained after a power outage, restoring operation upon restart
3. The module supports standalone operation or seamless integration with other systems, meeting diverse application needs

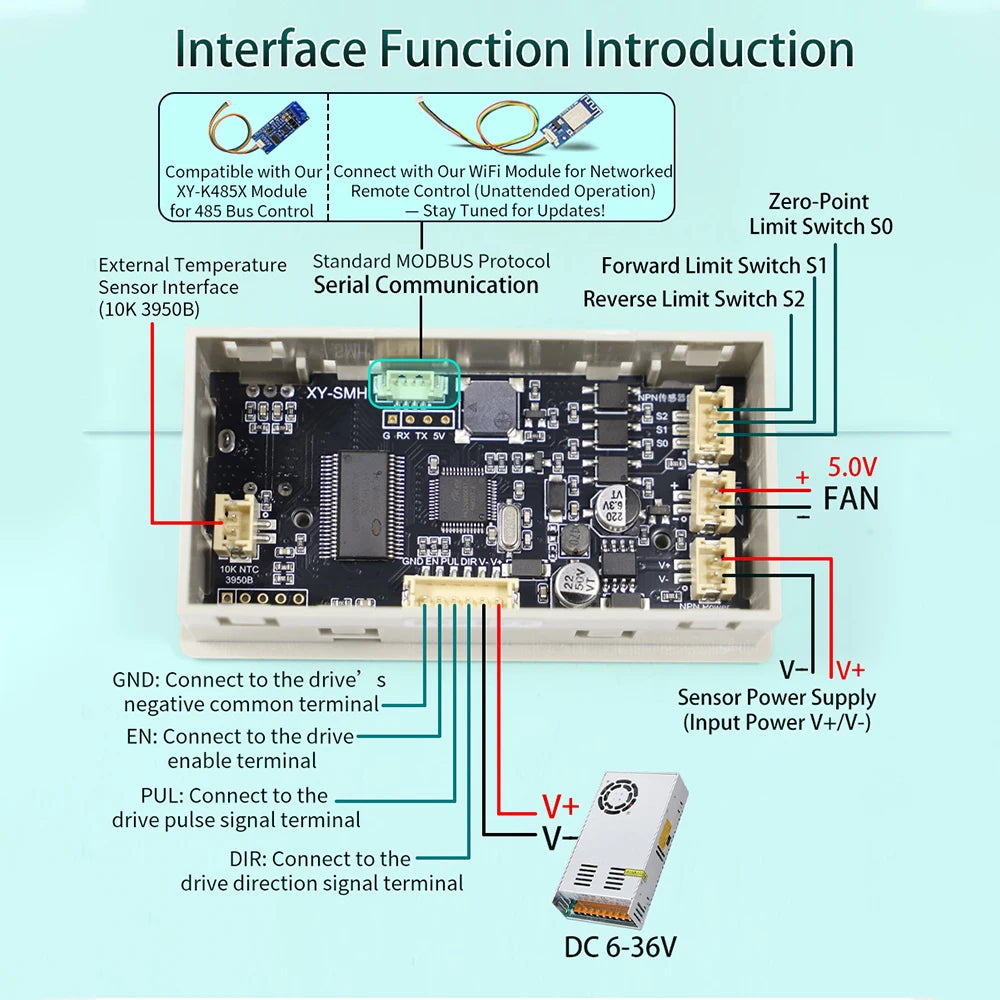

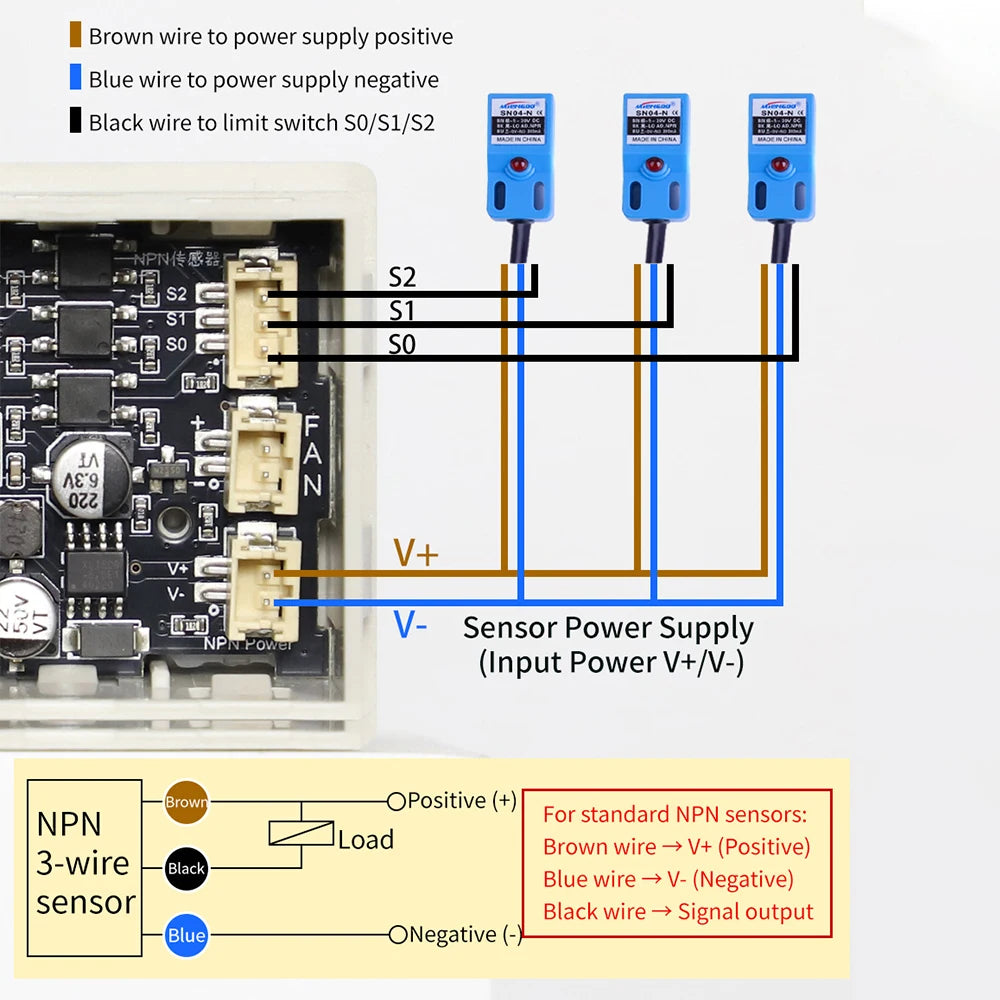

4. Expandable control interfaces facilitate connection to external sensors or control systems
5. Designed specifically for two-phase, four-wire stepper motors, suitable for general industrial control scenarios.

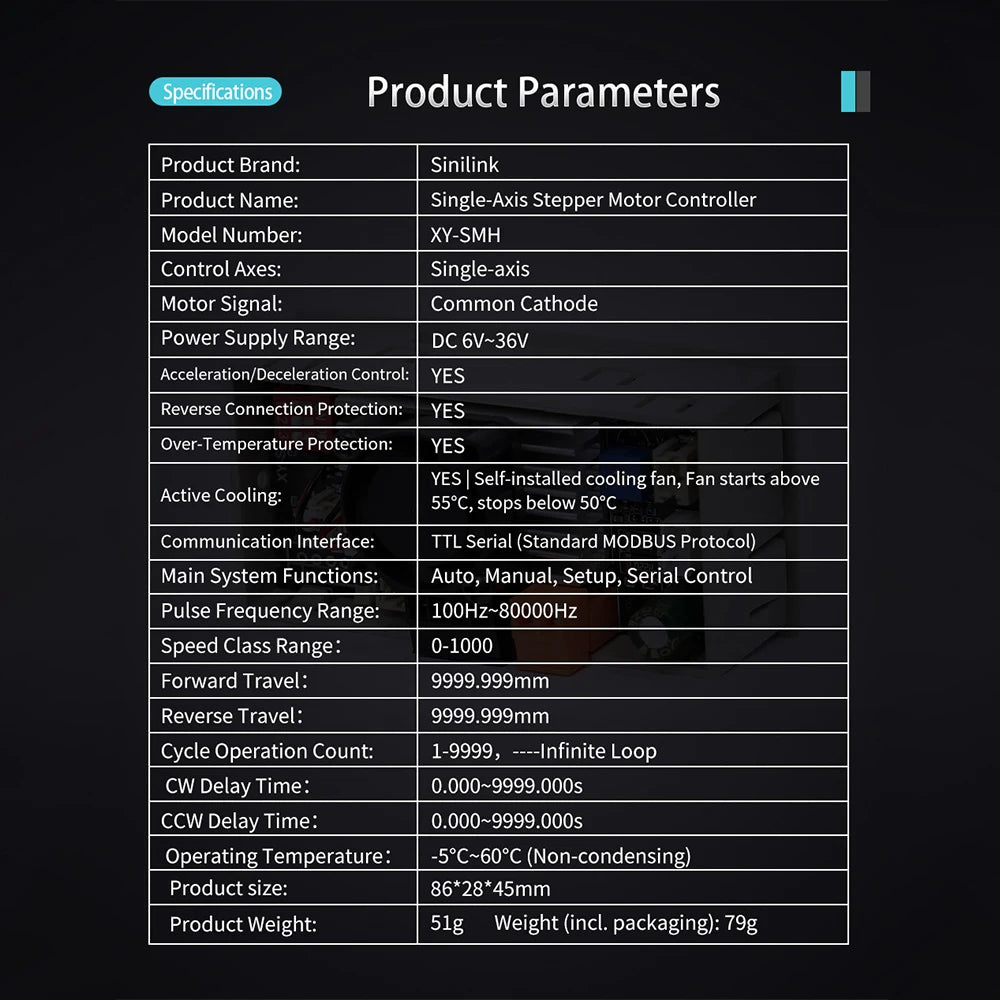

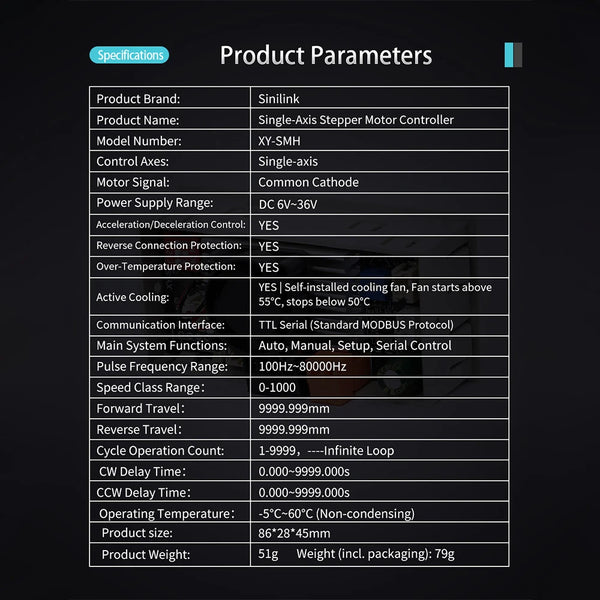

Product Parameters:
Product Name: Single-Axis Stepper Motor Controller
Product Model: XY-SMH
Number of Controlled Axes: Single
Motor Signal: Common-Cathode
Power Supply: DC6-36V Universal
Acceleration/Deceleration Control: Yes
Input Reverse Polarity Protection: Yes
Overtemperature Protection: Yes
Active Cooling: Yes, with optional external fan. Activates when temperature exceeds 55°C and stops when temperature drops below 50°C.
Communication Interface: Serial TTL (standard MODBUS protocol)

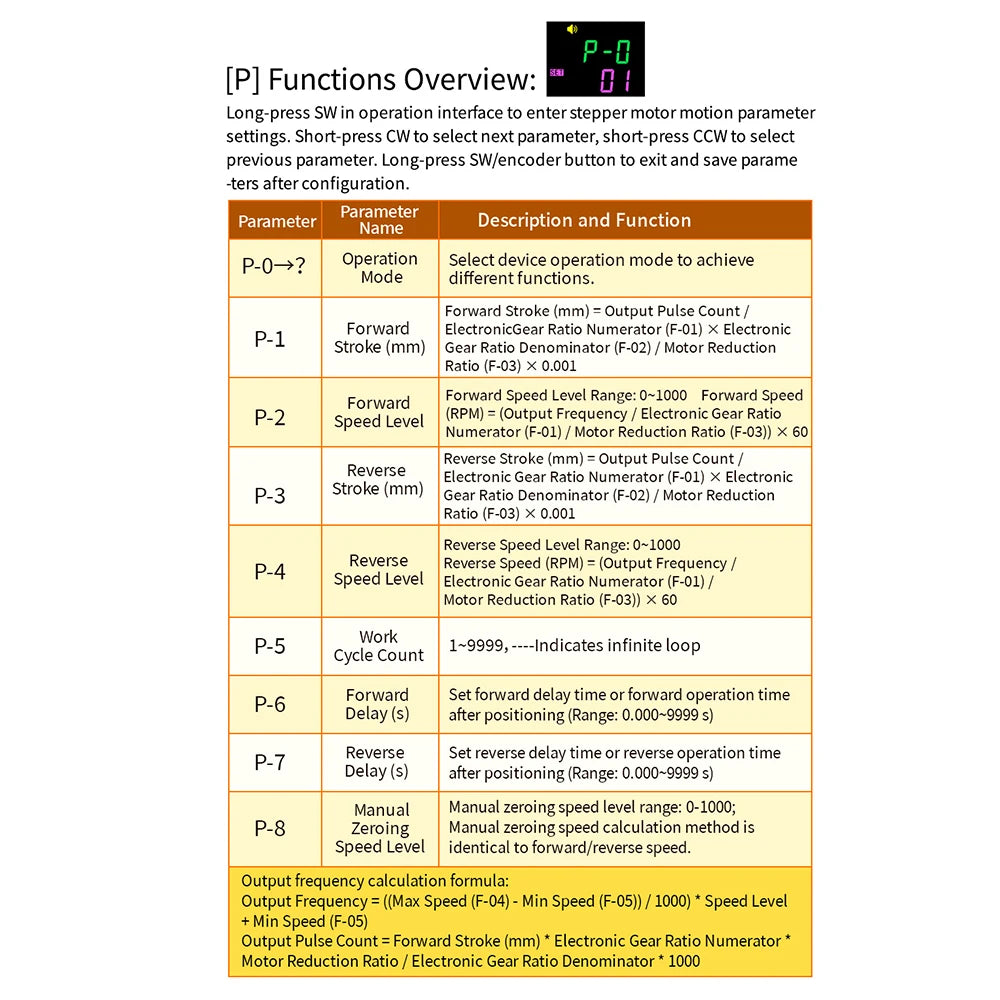

System Functions: Automatic, Manual, Configurable, Serial Control
Pulse Frequency Range: 100Hz to 80,000Hz
Speed Level Range: 0-1000Hz
Package Included:
Motor Controller*1

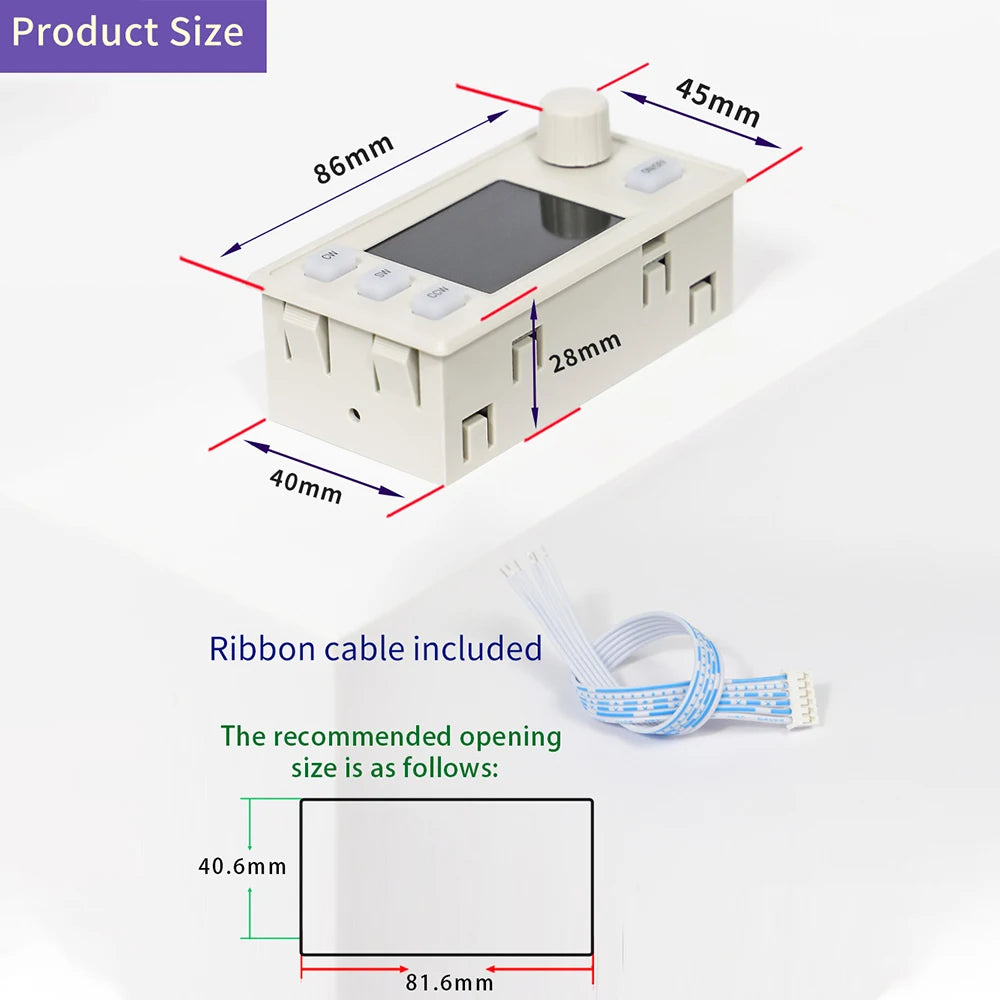

Flex Cable*1
