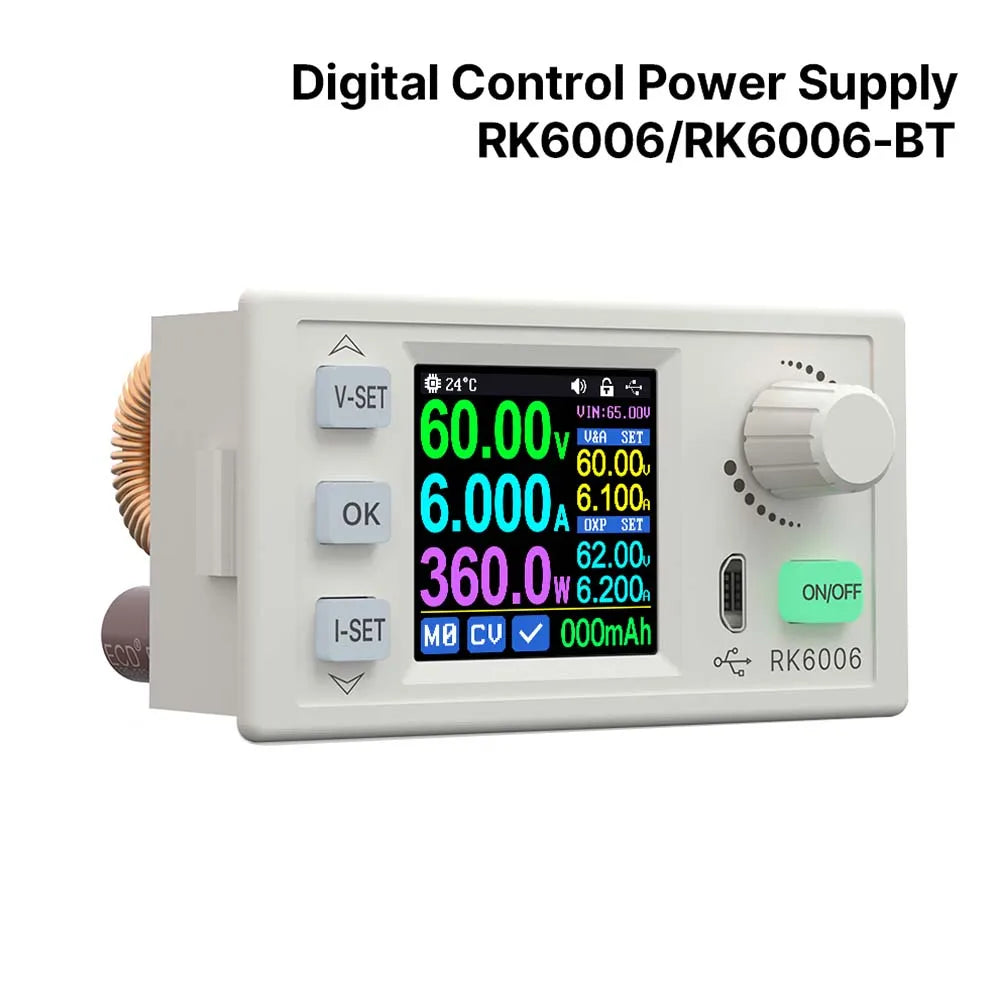

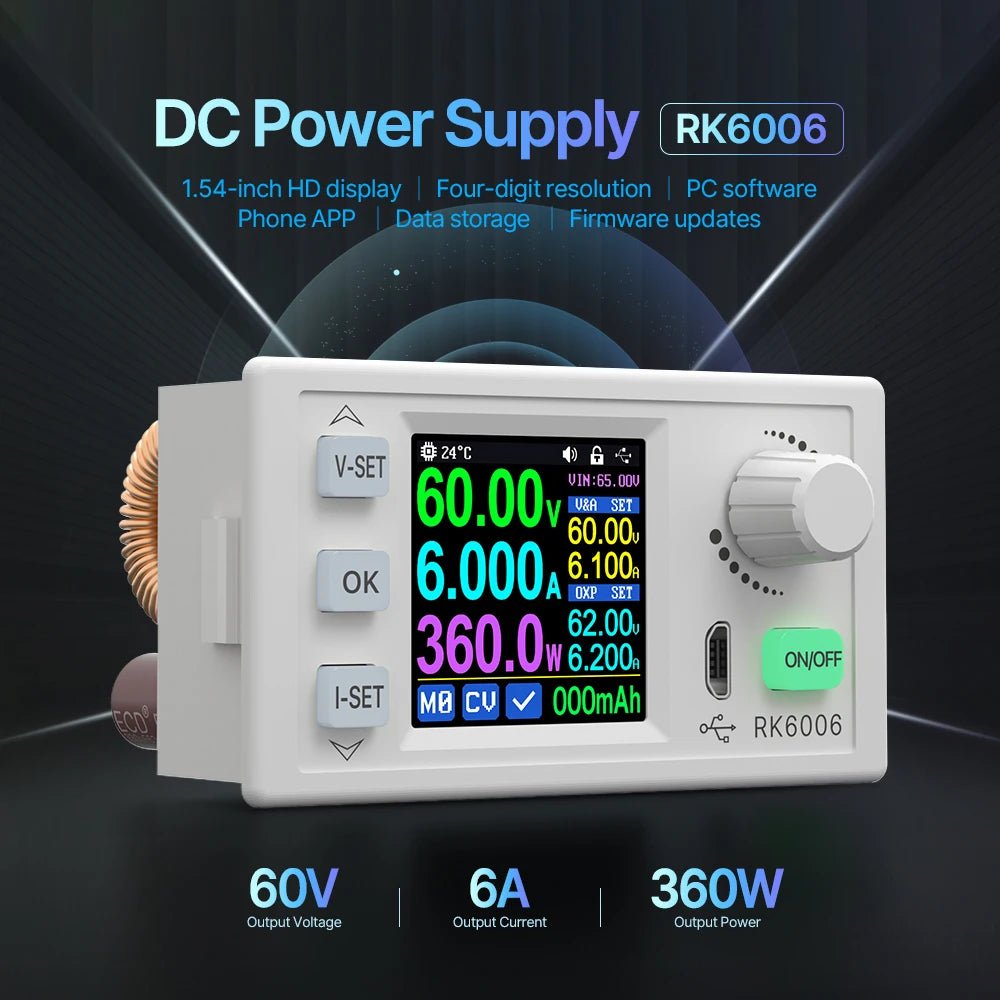

RK6006 DC Regulated Power Supply 6A 60V DC to DC Step Down Voltage Bench Firmware Upgrade USB Stabilized Voltage Buck Converter
Specifications:
Model: RK6006/RK6006-BT
Input voltage range: 12-68.00V
Output voltage range: 0-60.00V
Output current range: 0-6.000A
Output power range: 0-360W
Input voltage measurement resolution: 0.01V
Output voltagesetting measurement resolution: 0.01V
Output current setting measurement resolution: 0.001A
Input voltage measurement accuracy: ±(1%+5 digits)
Output voltage accuracy between setting and measurement: ±(0.3%+3 digits)
Output currentaccuracybetween setting and measurement:±(0.5%+5 digits)
Output ripple typical:100mV VPP①
Working temperature range: -10℃~40℃
External sensor Temperature detection range:-10℃~100℃/0℉~200℉
External sensor Temperature detection accuracy:±3℃/±6℉
Constant voltage moderesponse time: 2ms（0.1A-5A Load）
Constant voltage mode load regulation: ±(0.1%+2 digits)
Constant current mode load regulation: ±(0.1%+3 digits)
Capacity measurement range: 0-9999.99Ah
Energy measurement range: 0-9999.99Wh
Capacity and energy statistical error: ±2％
Buck working mode: （input voltage÷1.1）-1②
Over temperature protection: System temperature>80℃
Screen brightness setting: 0-5(6 level in total)

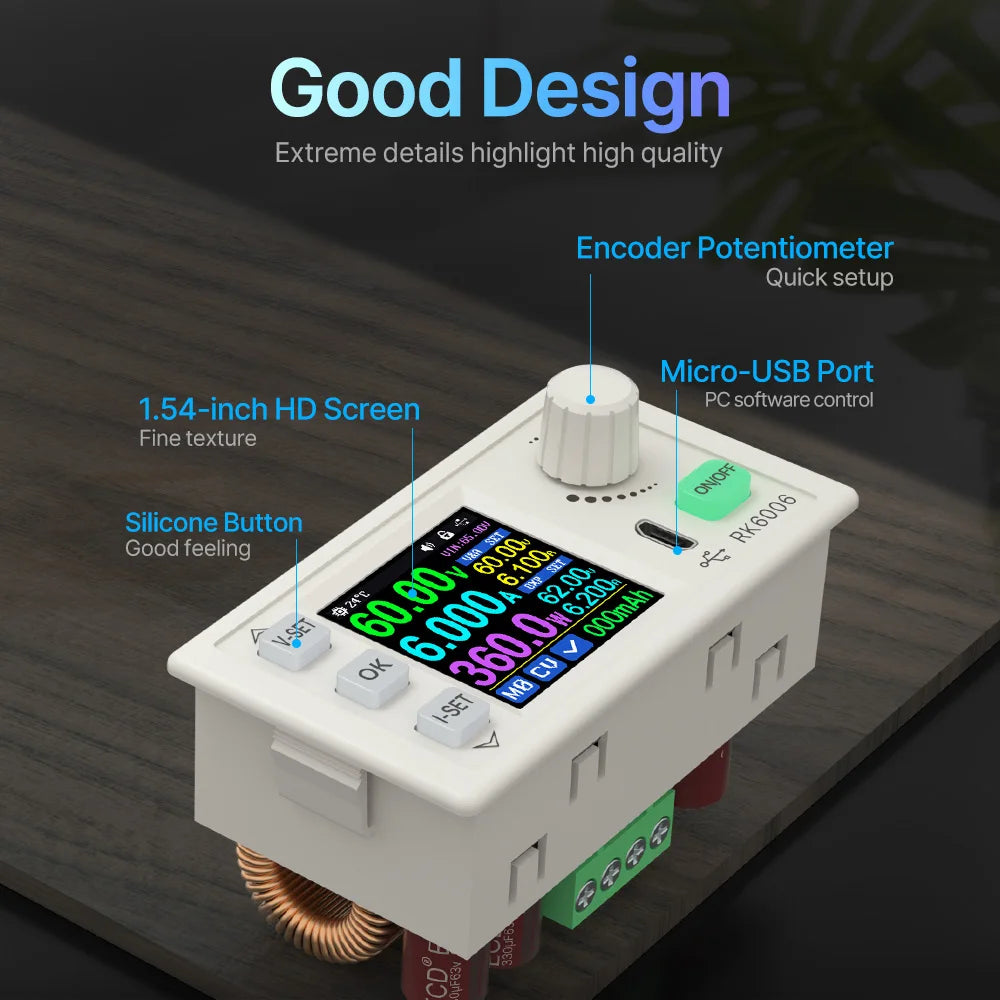

Screen: 1.54 inch 240*240 color HD display
Cooling fan start condition：Output current>4Aor System temperature>45℃
Cooling fan shut down condition：Output current<3.9Aand System temperature<45℃
Weight(with package):About 0.15kg
Product dimension: 79*43*54mm

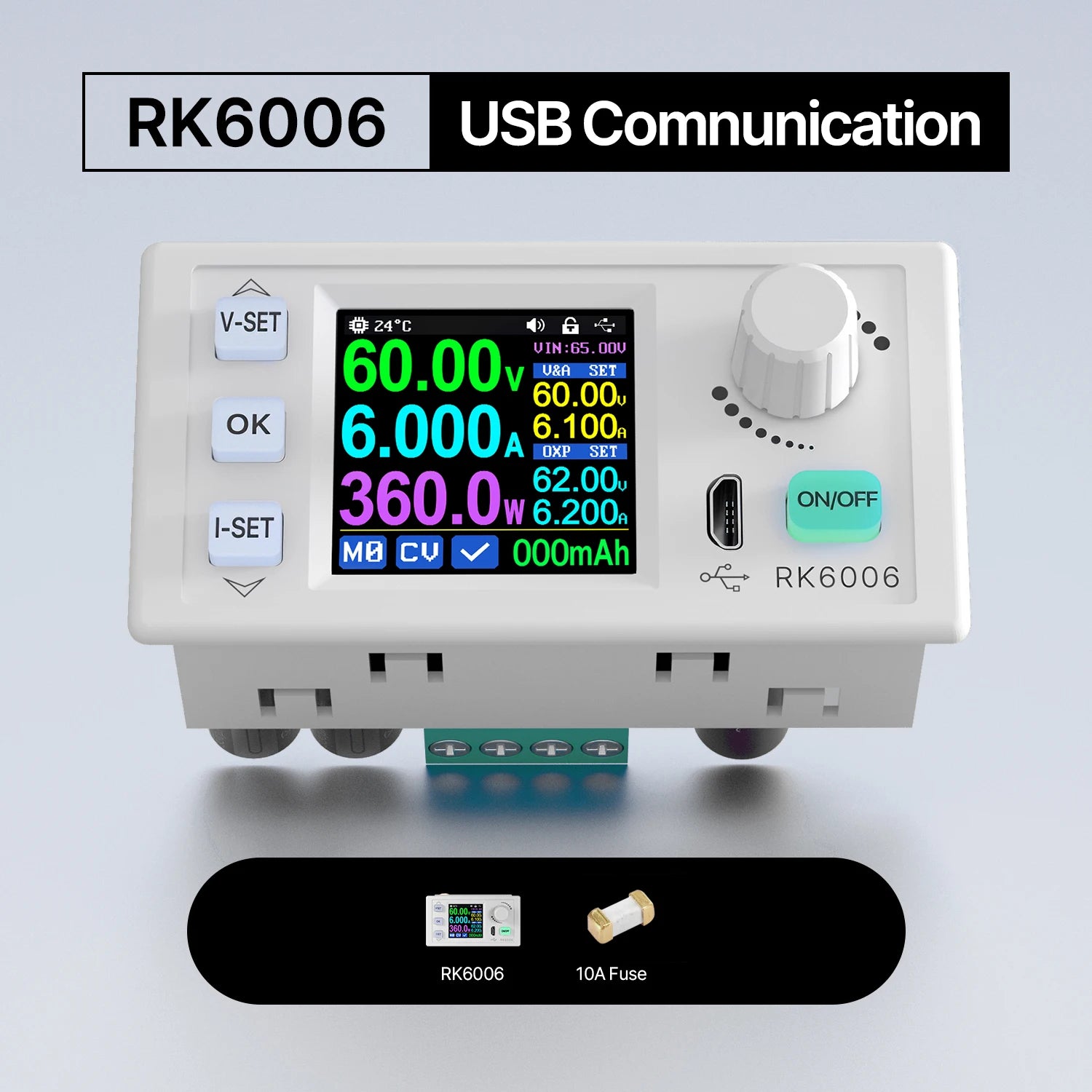

Support USB communication: yes
Support Bluetooth communication: Only RK6006-BT supports
①:Ripple measurement method: noise and ripple are measured at X1 range, AC coupling, 20MHz of bandwidth on your oscilloscope with a 0.1uF parallel capacitor at the output terminals
②for example: input voltage is 24V，the max output voltage is 20.8V。
Installation
1. RK6006 manual, PC software, APP download link: https://drive.google.com/drive/folders/1U1g45_d_W2IXQIo4-s5pp4lnu72SbYW6?usp=share_link
2. IOS APP download: search "RUIDENG" in APP STORE
Android app download link: http://www.ruidengkeji.com/apk/Ruideng_V1.0.14.apk
