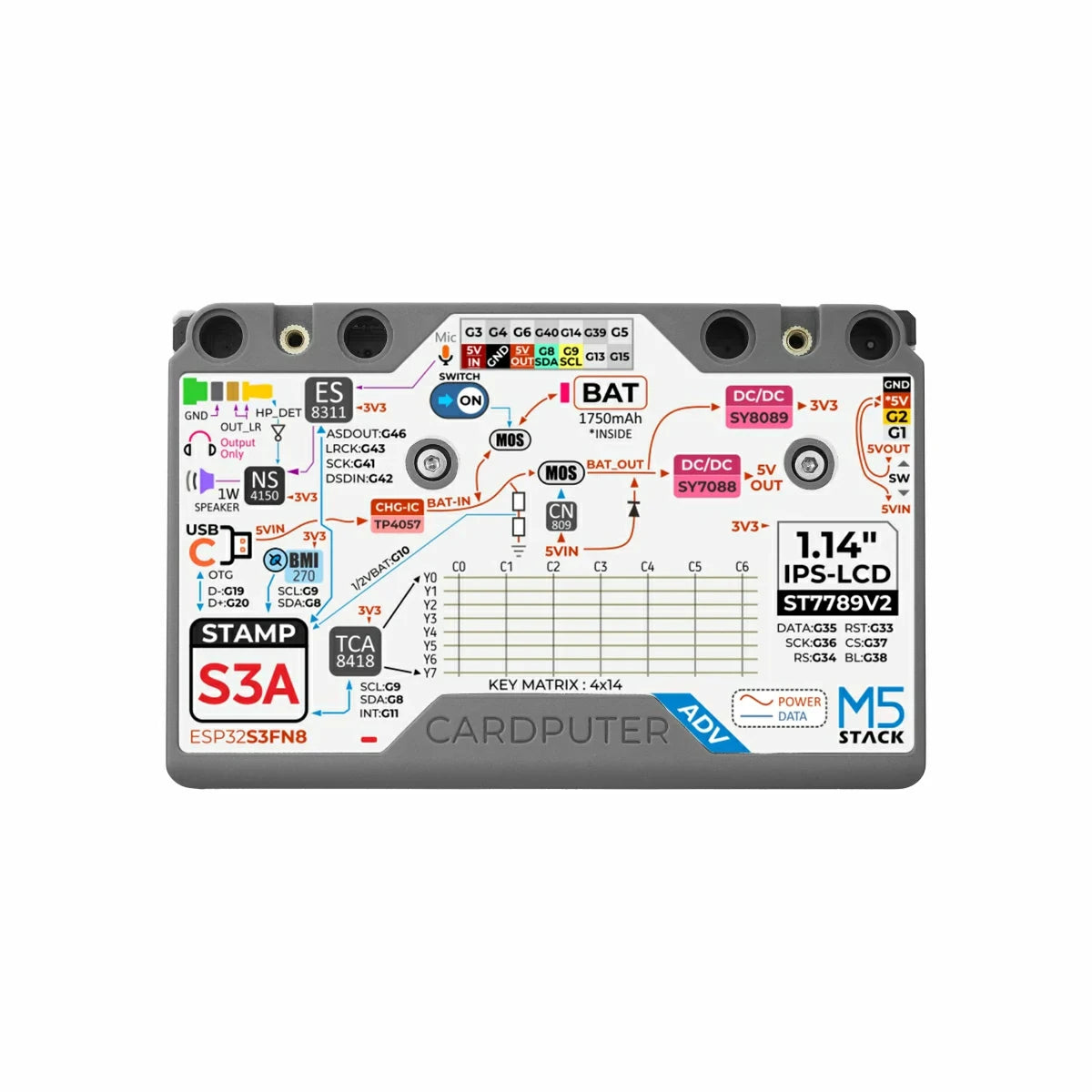

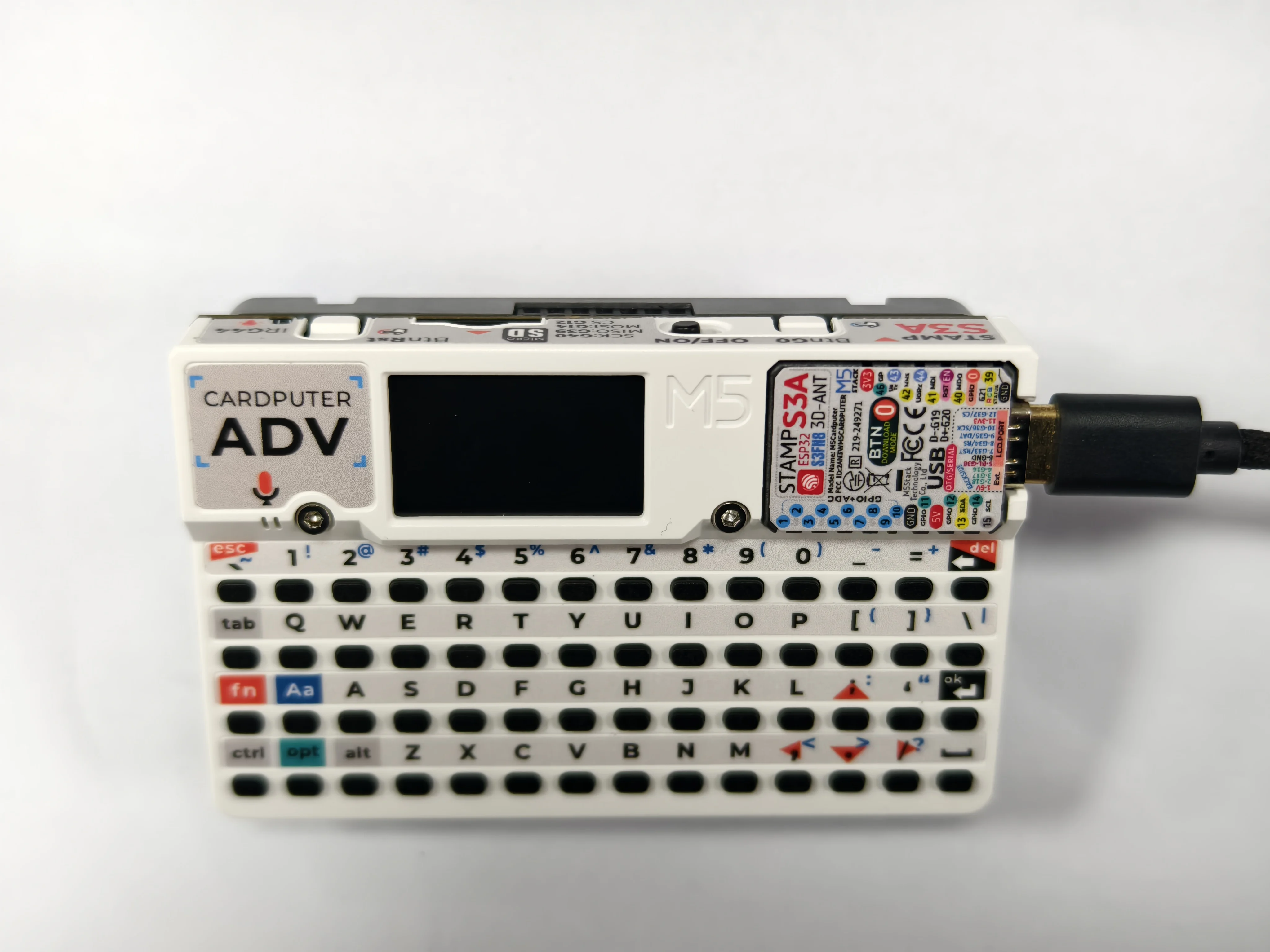

M5Stack Cardputer Adv Programmable Card-sized Computer
-
Stamp-S3A core controller
-
56-key keyboard
-
1.14" LCD display
-
160gf comfortable keypress feel
-
ES8311 audio codec
-
High SNR MEMS microphone
-
NS4150B amplifier + 1W speaker
-
3.5mm audio output interface
-
Infrared emitter
-
6-axis motion sensor BMI270
-
HY2.0-4P Grove port
-
EXT 2.54-14P expansion bus
-
microSD card slot
-
Built-in 1750mAh Li-ion battery
-
Magnetic back design
-
LEGO hole compatible
-
Development Platform
-
Arduino
-
UiFlow2
-
ESP-IDF
-
PlatformIO
-
Rapid prototyping and functional verification
-
Industrial control and automation
-
Embedded systems development and learning
-
Wireless communication and IoT projects

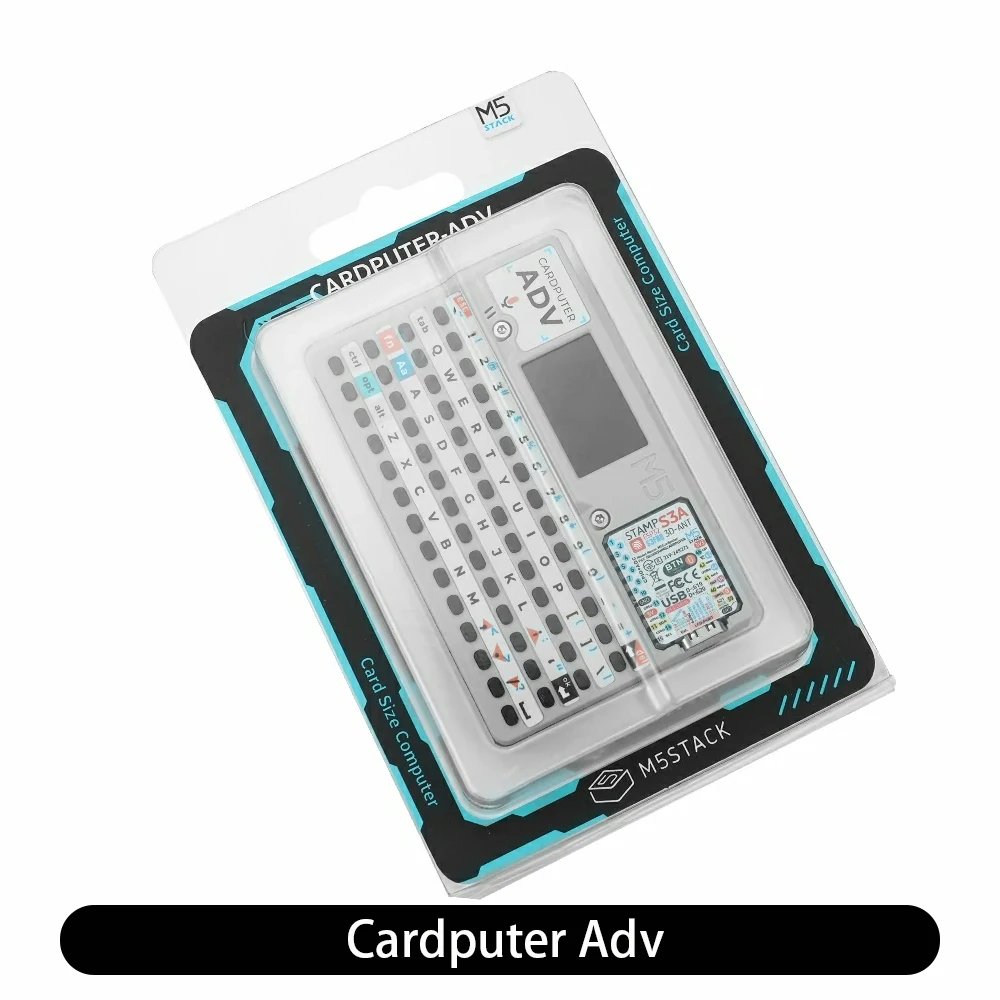

Package Includes
Download Mode
To enter download mode, set the side power switch of the Cardputer-Adv to the OFF position. Then, before powering on, hold the G0 button, apply power to the device, and release it afterward. The device will then enter download mode.

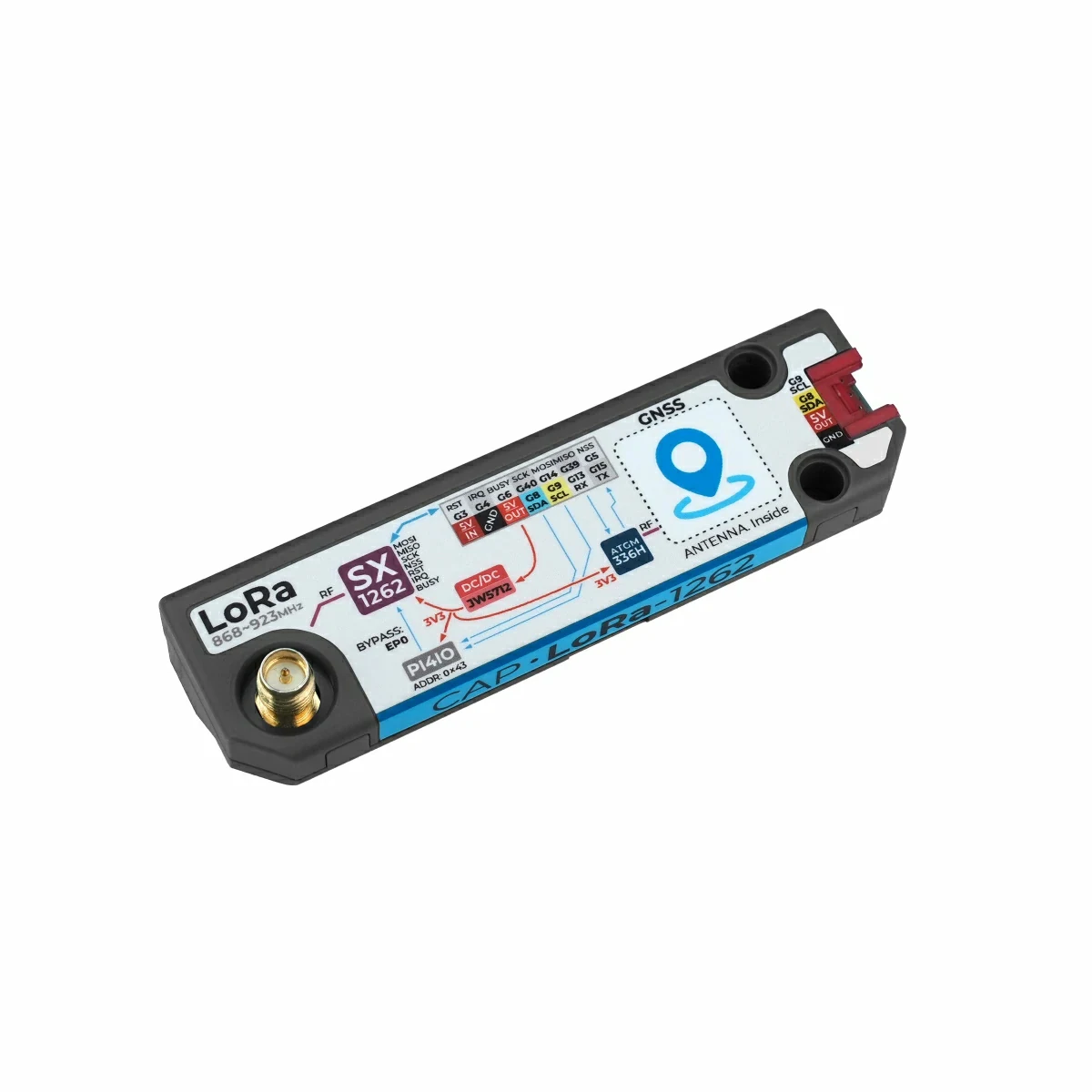

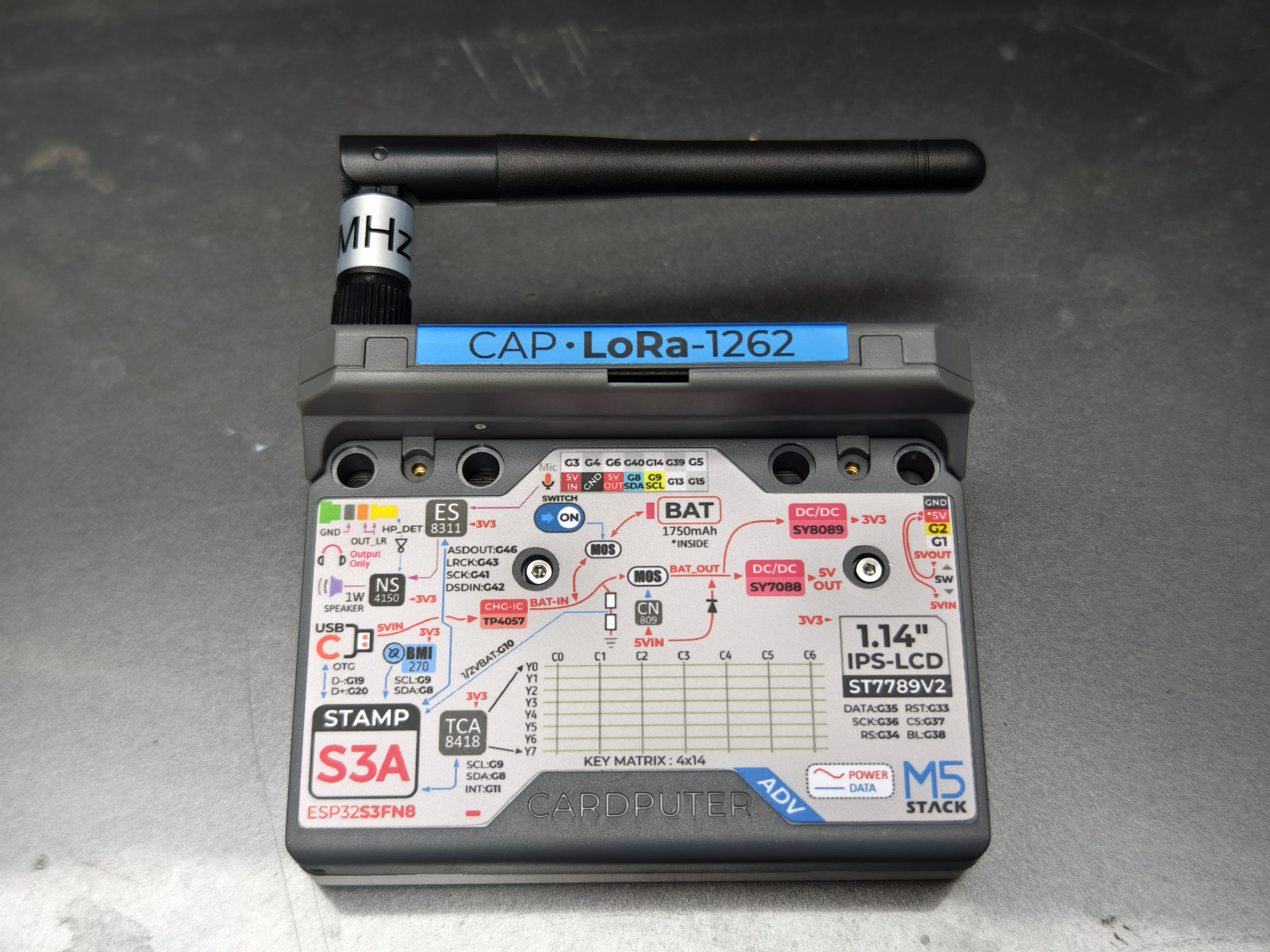

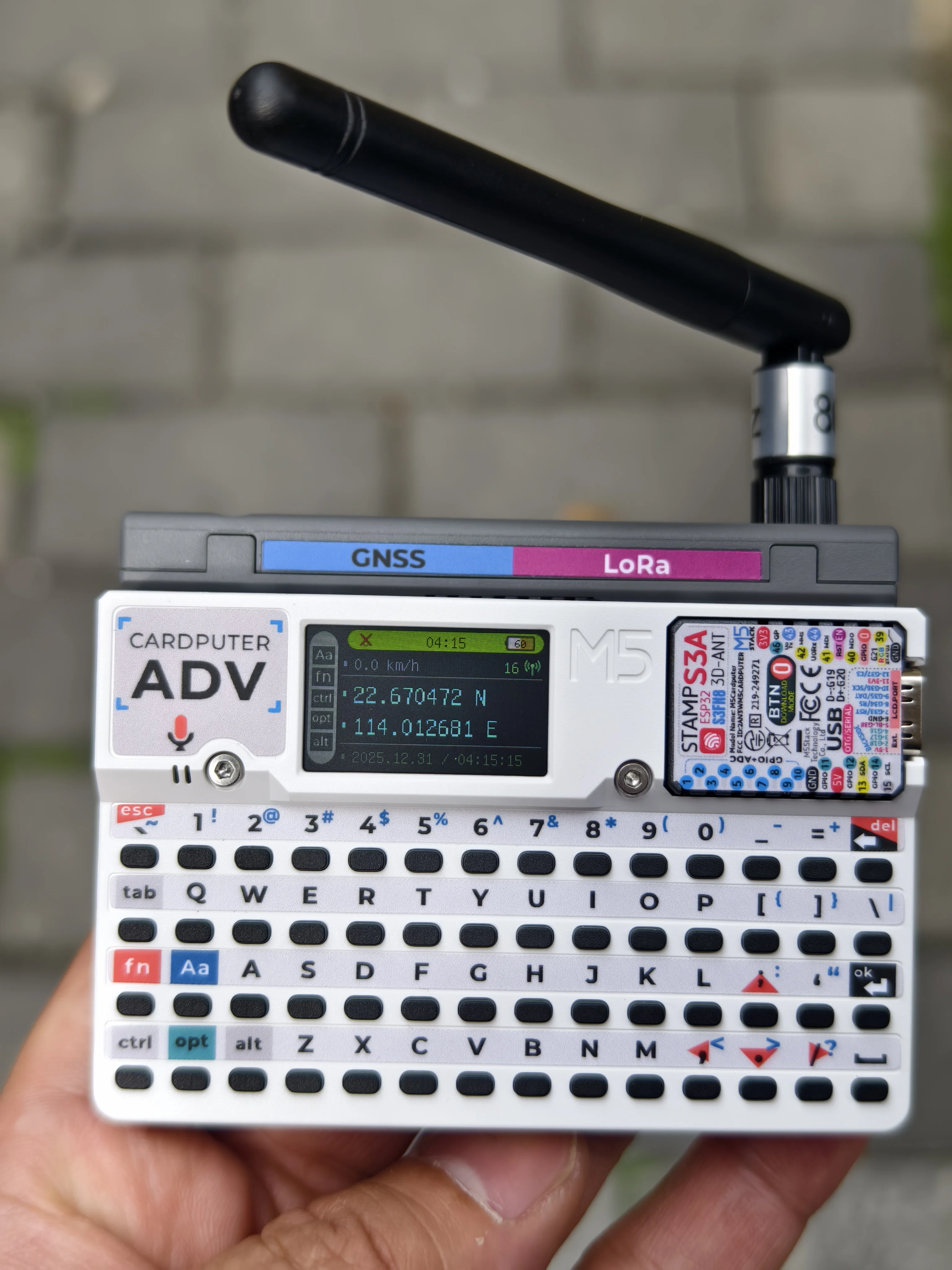

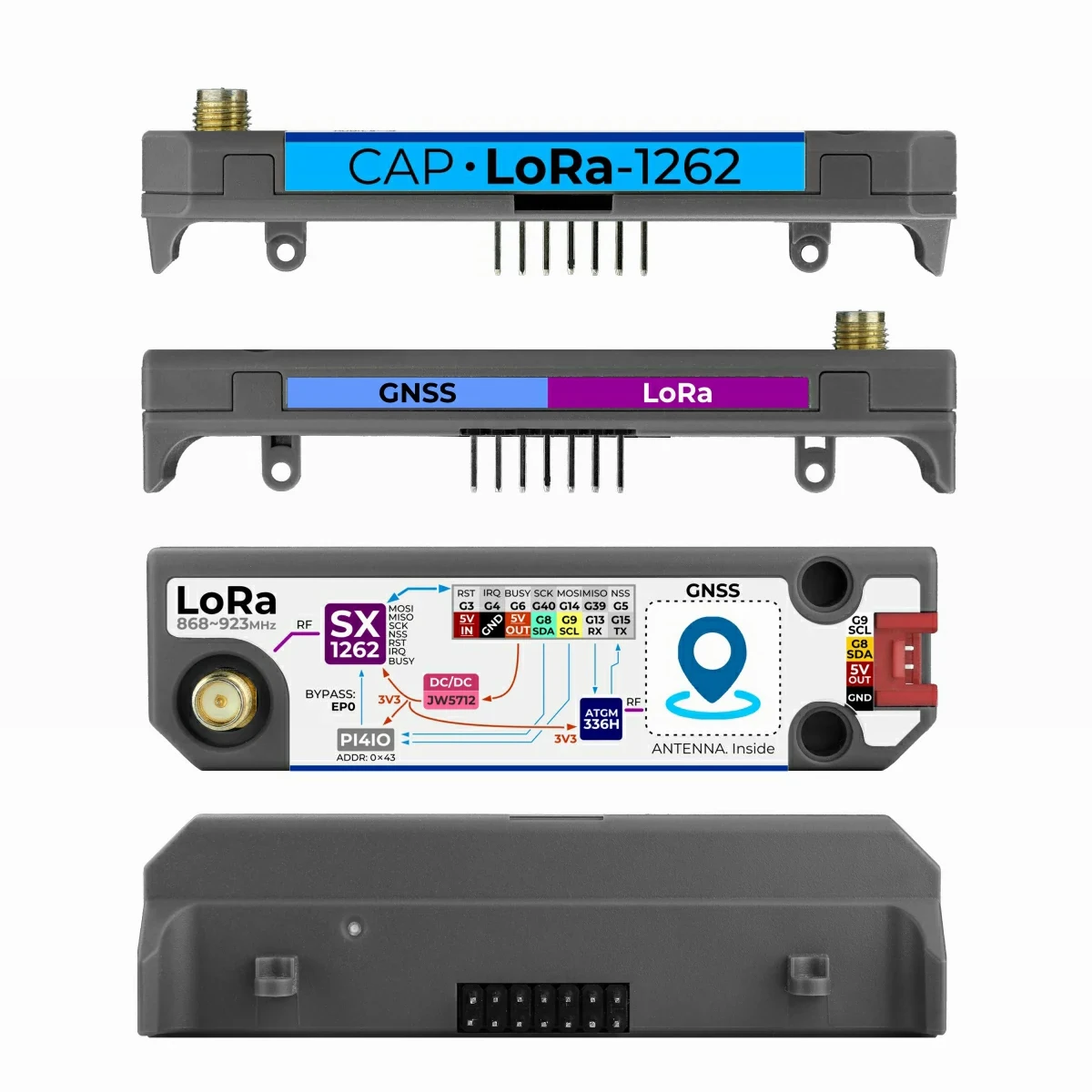

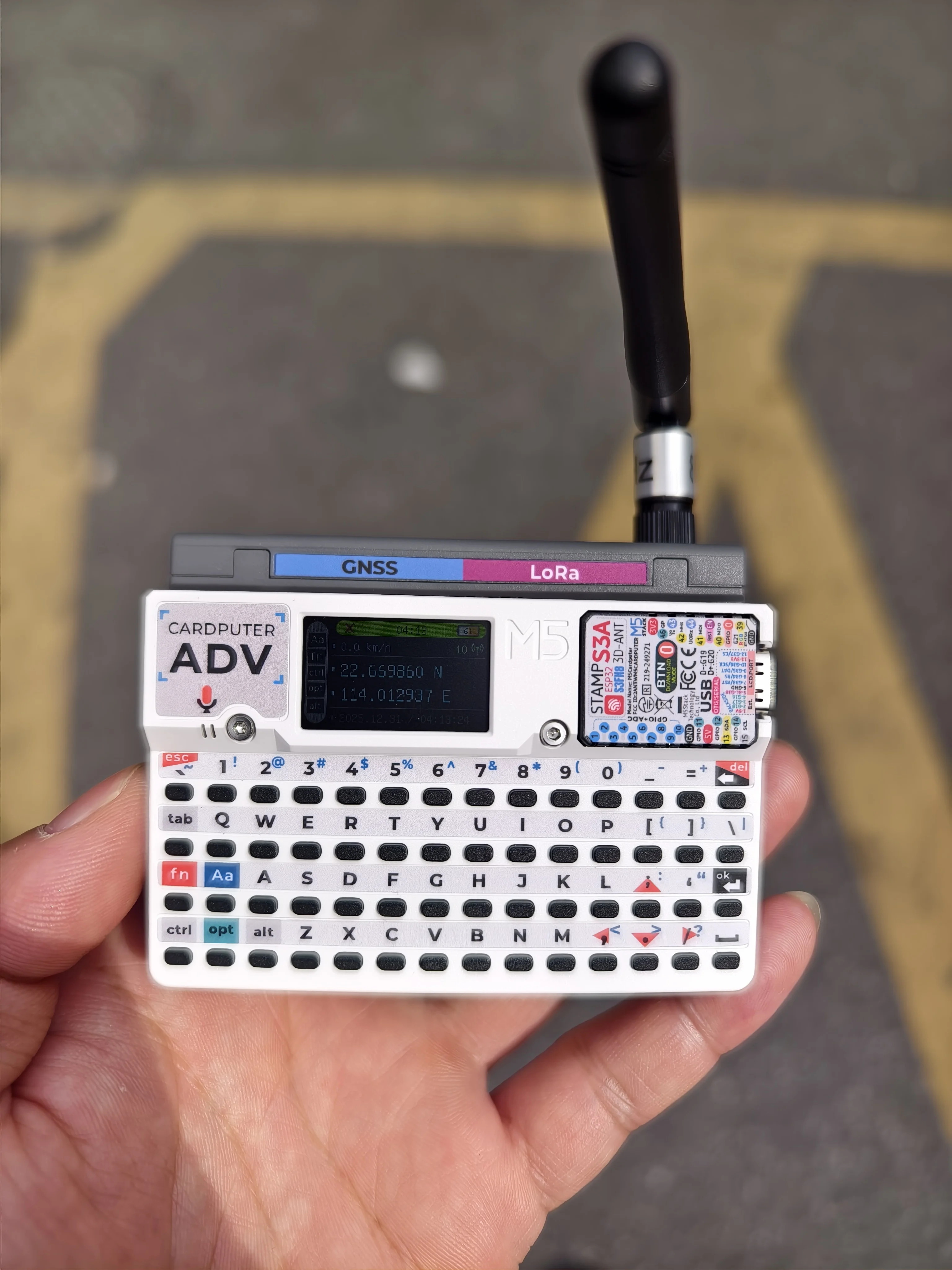

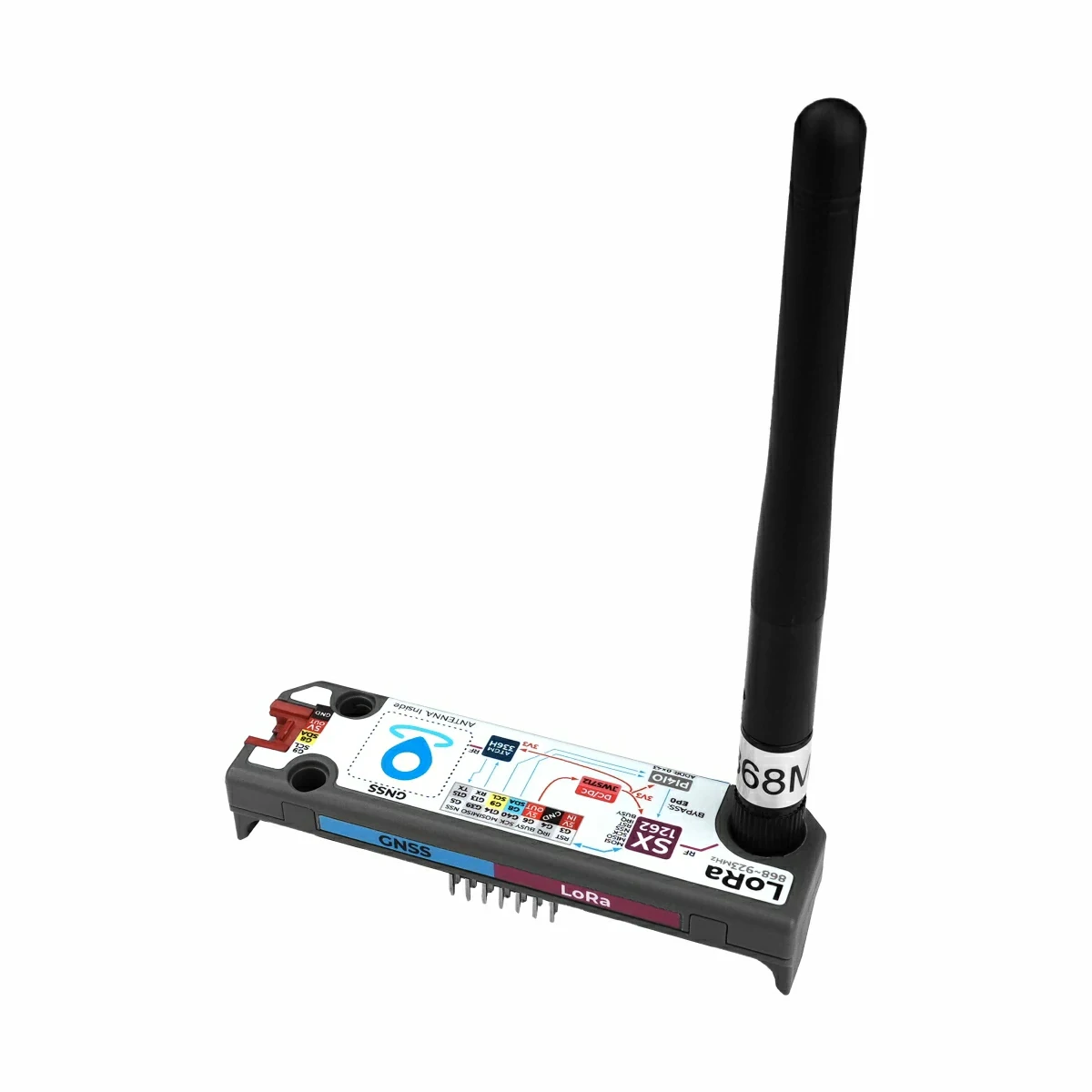

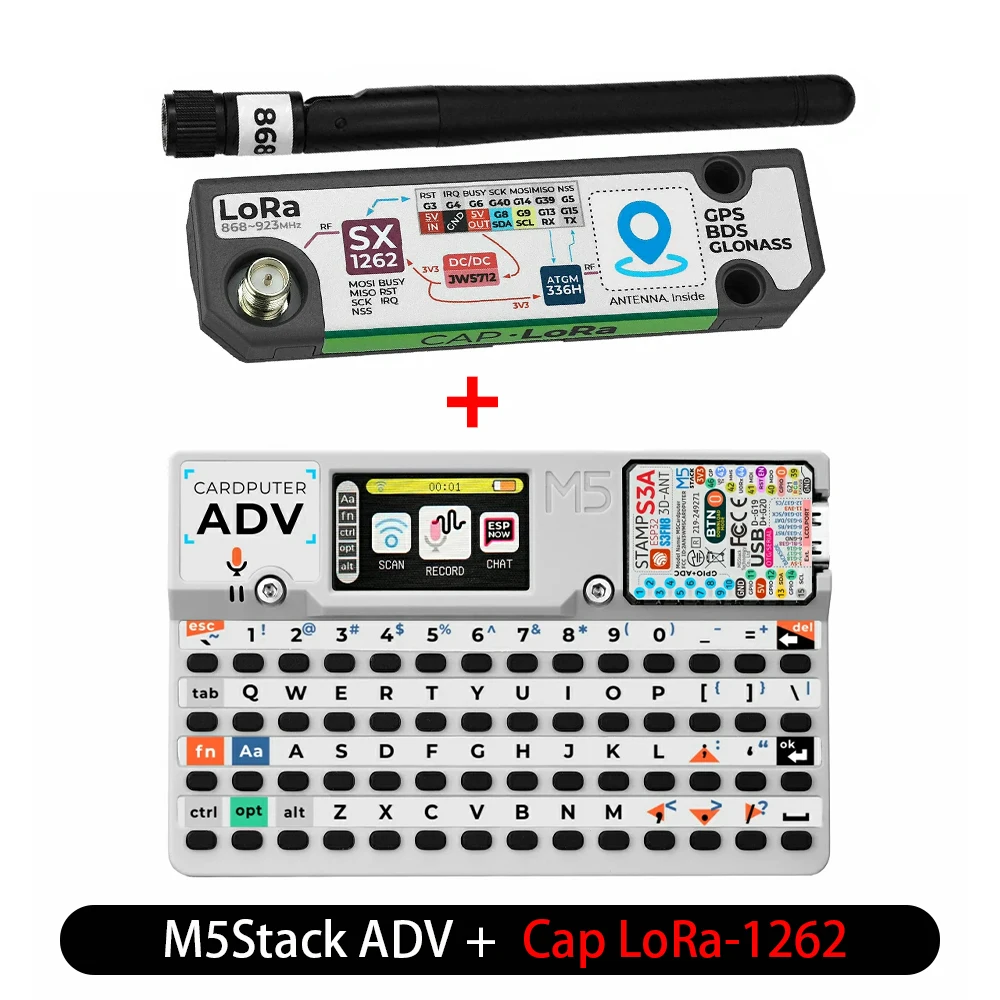

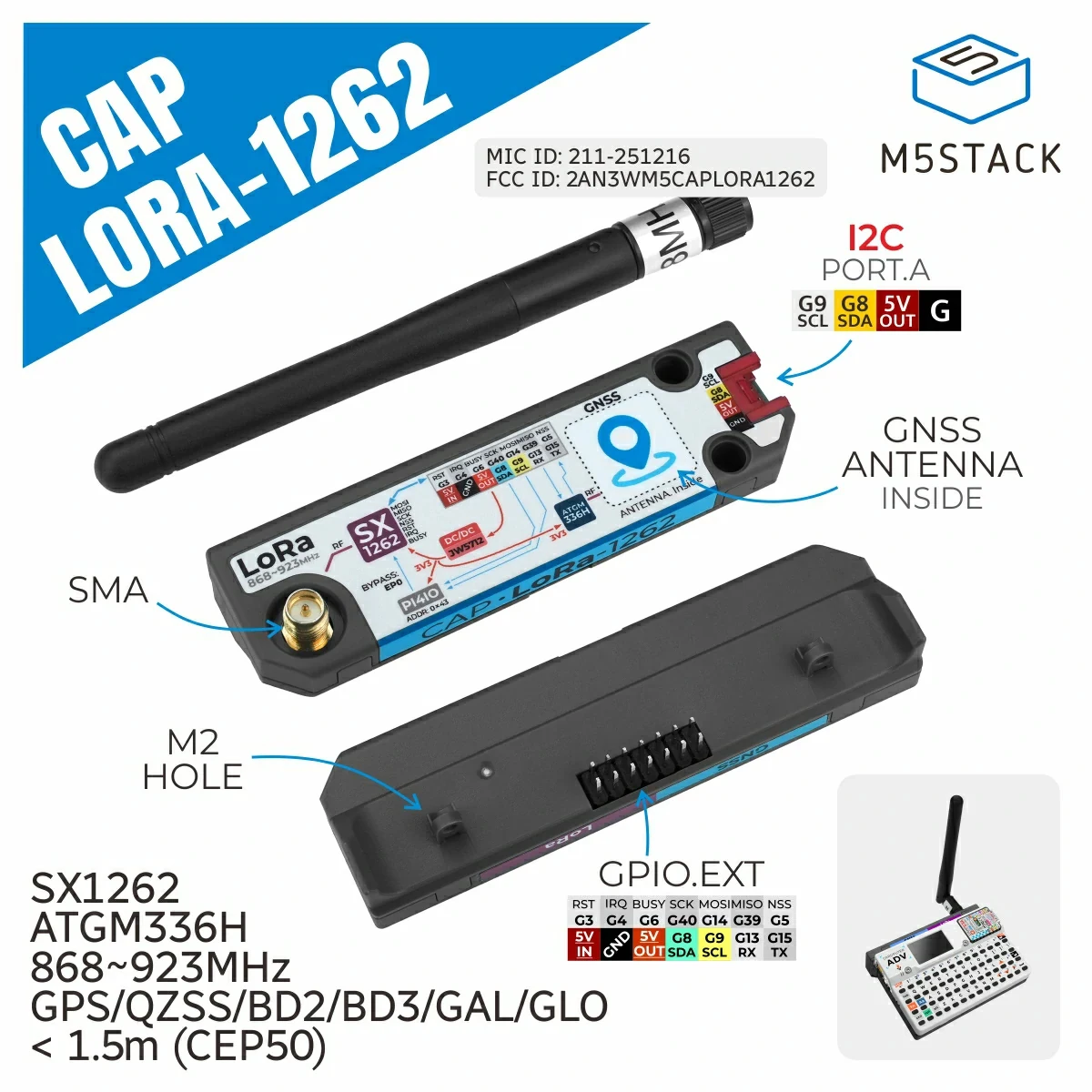

M5Stack Cap LoRa1262 LoRa
-

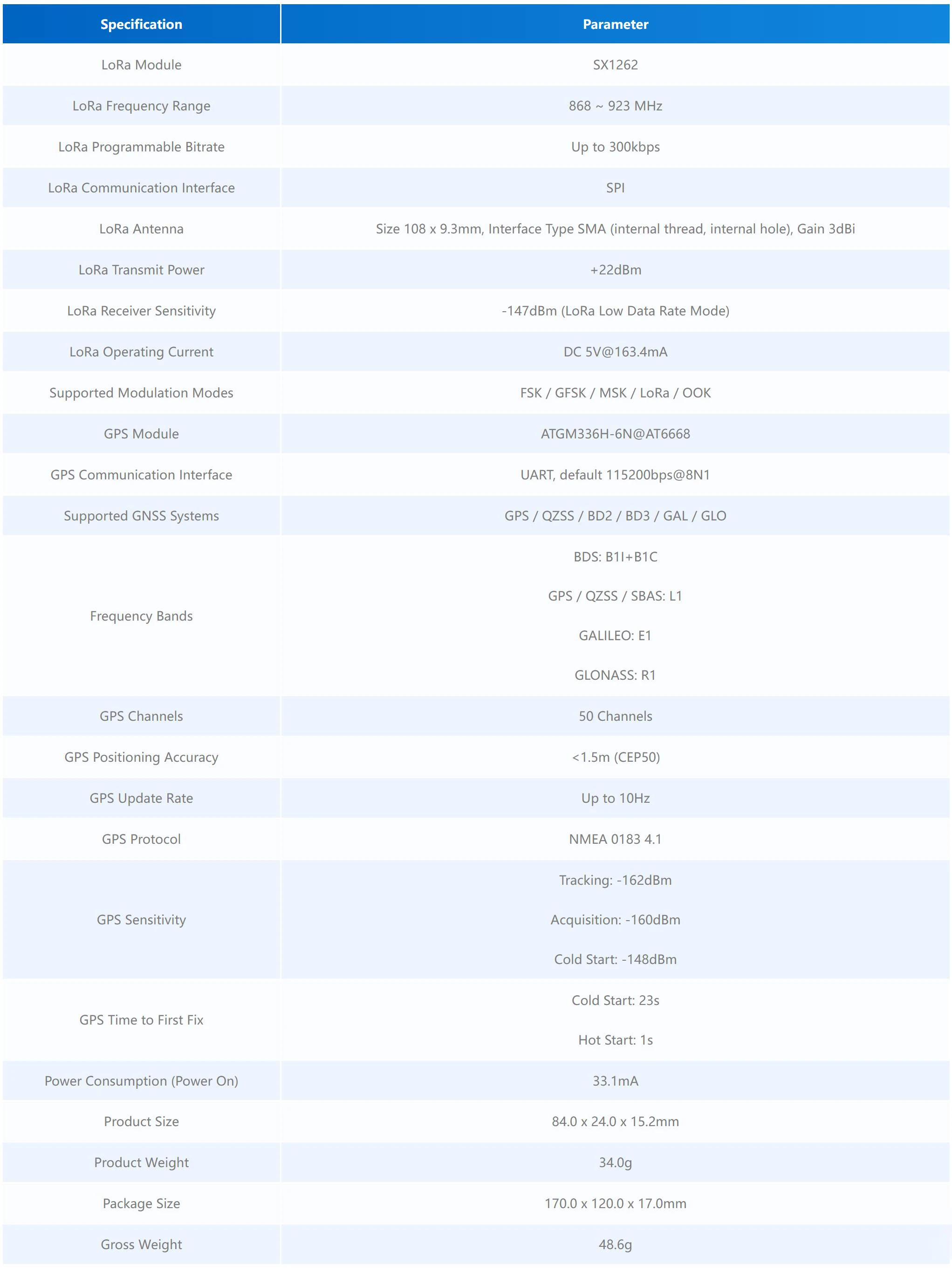

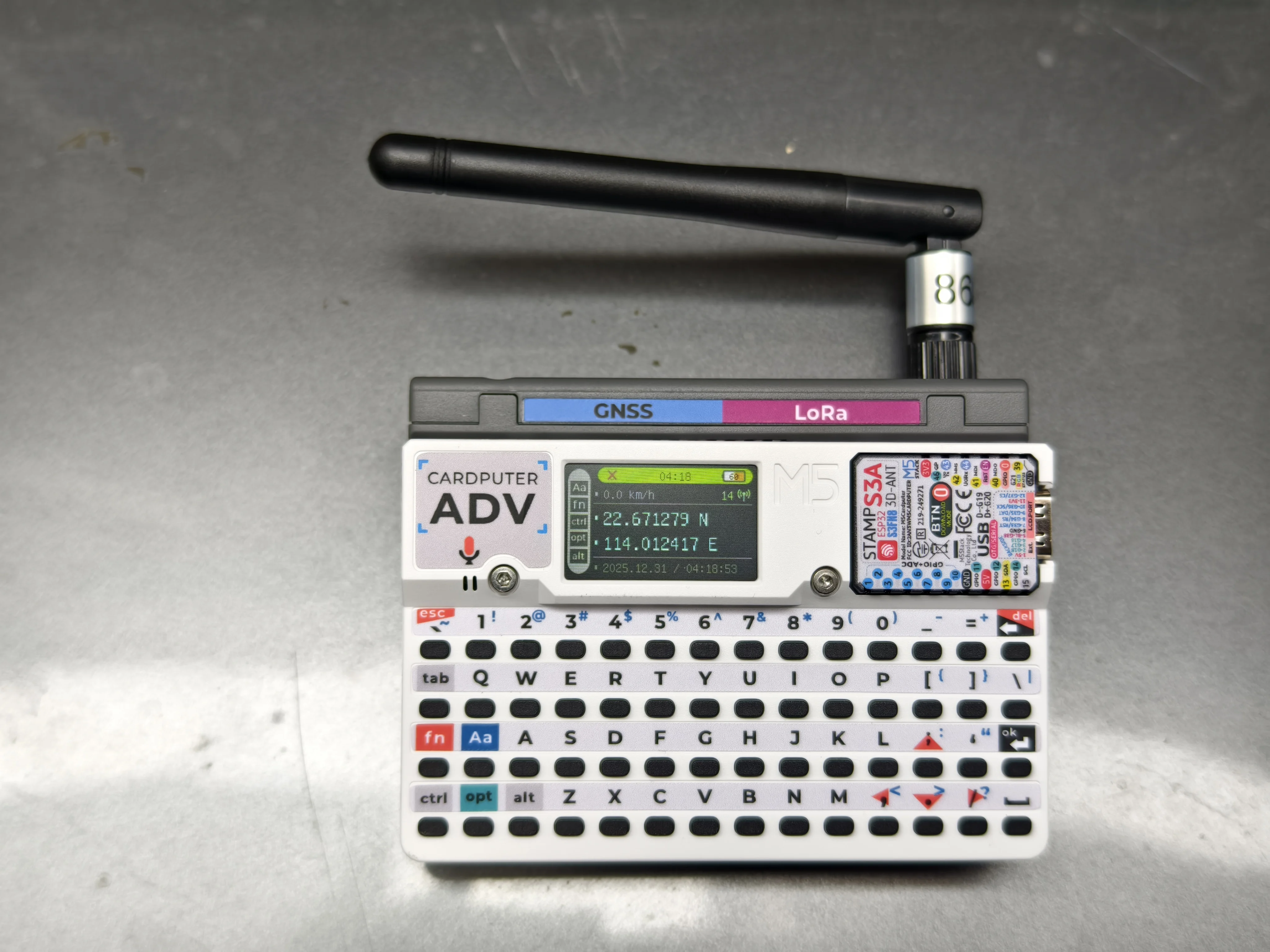

Integrates LoRa modulation technology and GNSS global positioning system
-
Operating frequency: 868 ~ 923 MHz
-
Supports FSK, GFSK, MSK, GMSK, LoRa, and OOK modulation modes
-
LoRa receiving sensitivity: down to -147 dBm (LoRa low data rate mode)
-
LoRa maximum transmission power: +20 dBm
-
External SMA antenna interface for LoRa, built-in ceramic antenna for GPS
-
Positioning supports multiple satellite navigation systems (GPS / QZSS / BD2 / BD3 / GAL / GLO)
-
Multi-frequency and multi-system reception
-
HY2.0-4P expansion interface
-
Development Platform:
-
Arduino
-
UiFlow2

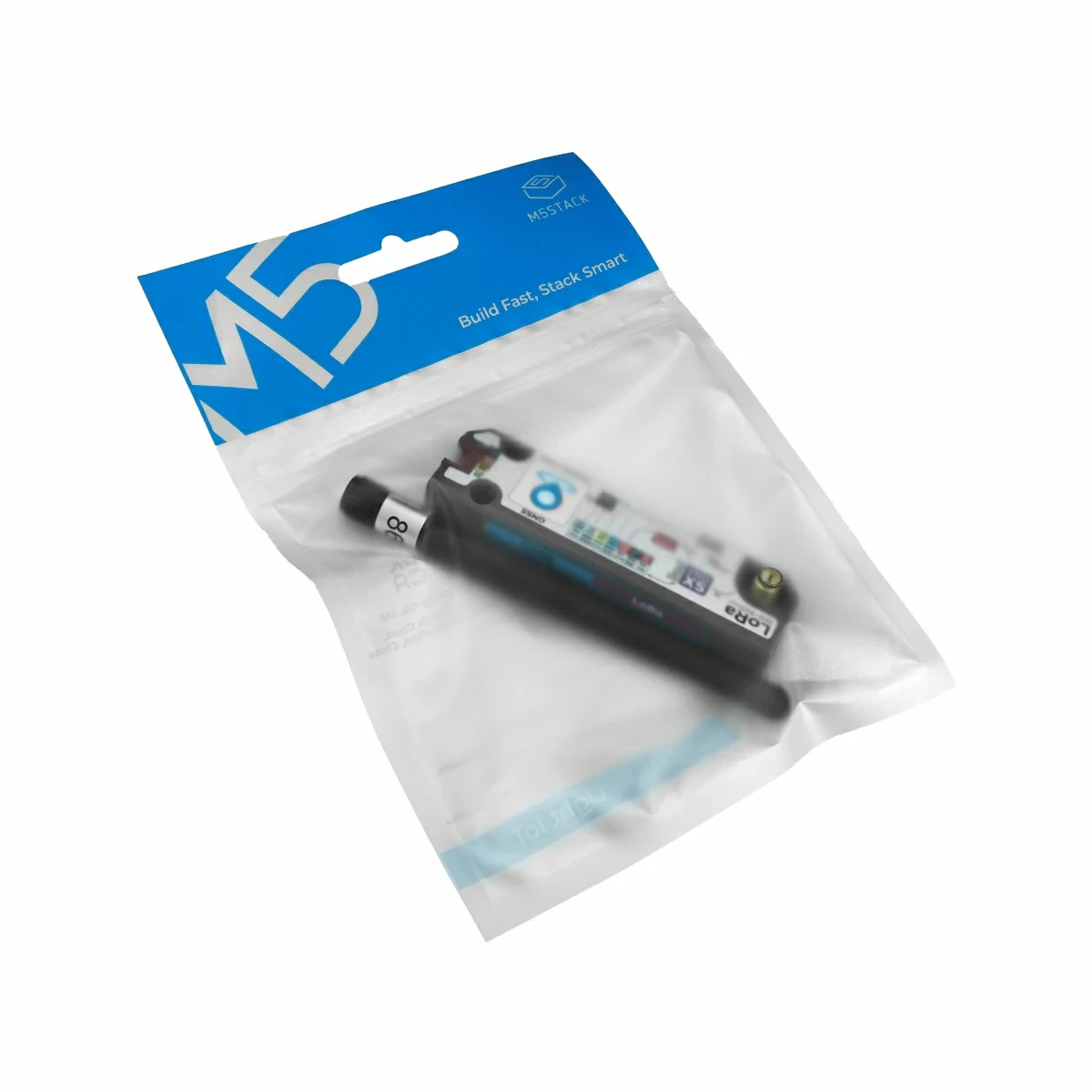

Package Includes
Do NOT connect or power on the device without installing the antenna, as this may cause permanent hardware damage!
Q1: Why is my Cardputer Adv black screen/won't boot?
Solutions:
1. Install the device driver.

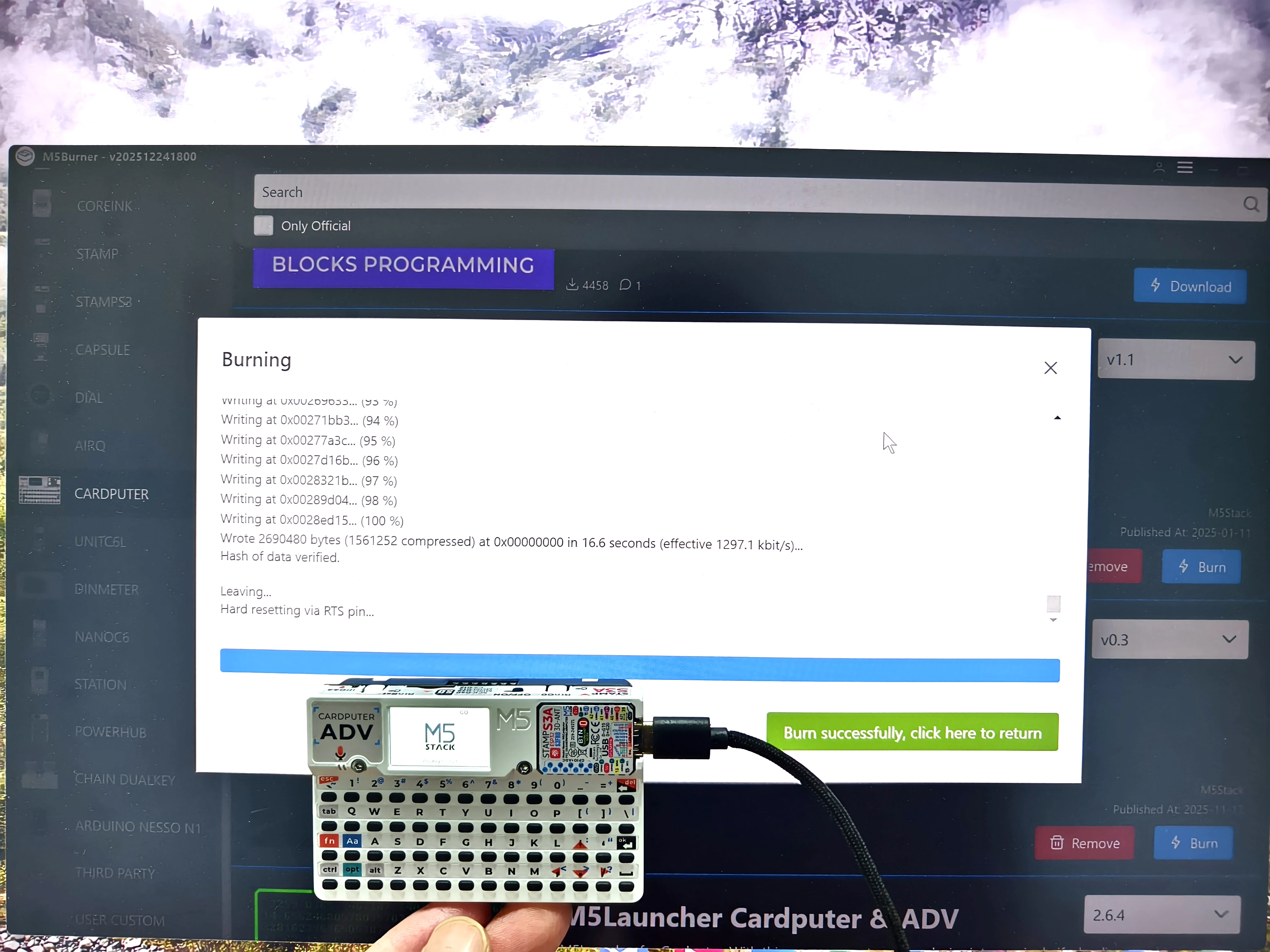

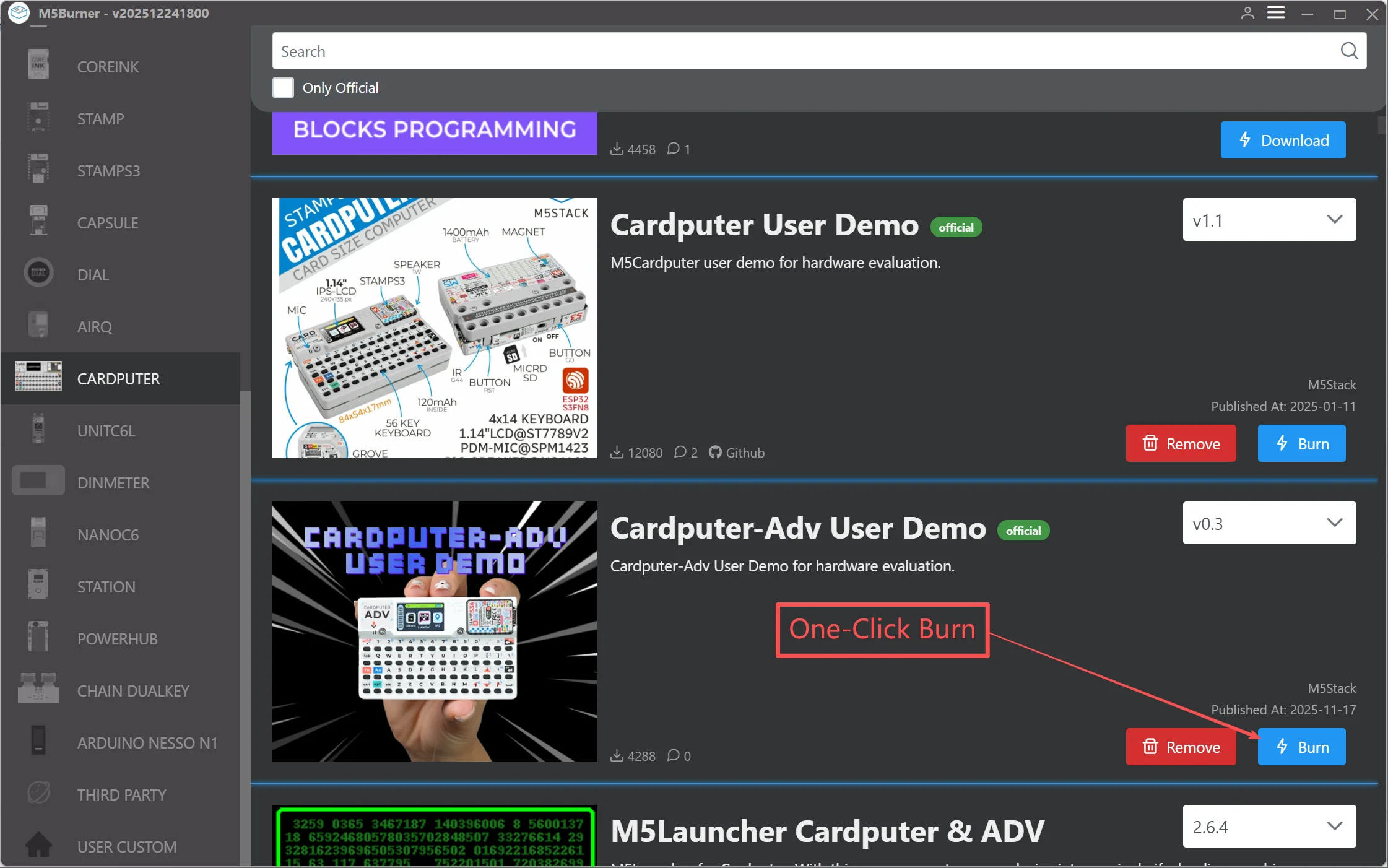

2. Download M5Burner, One-Click Reburn the factory firmware.

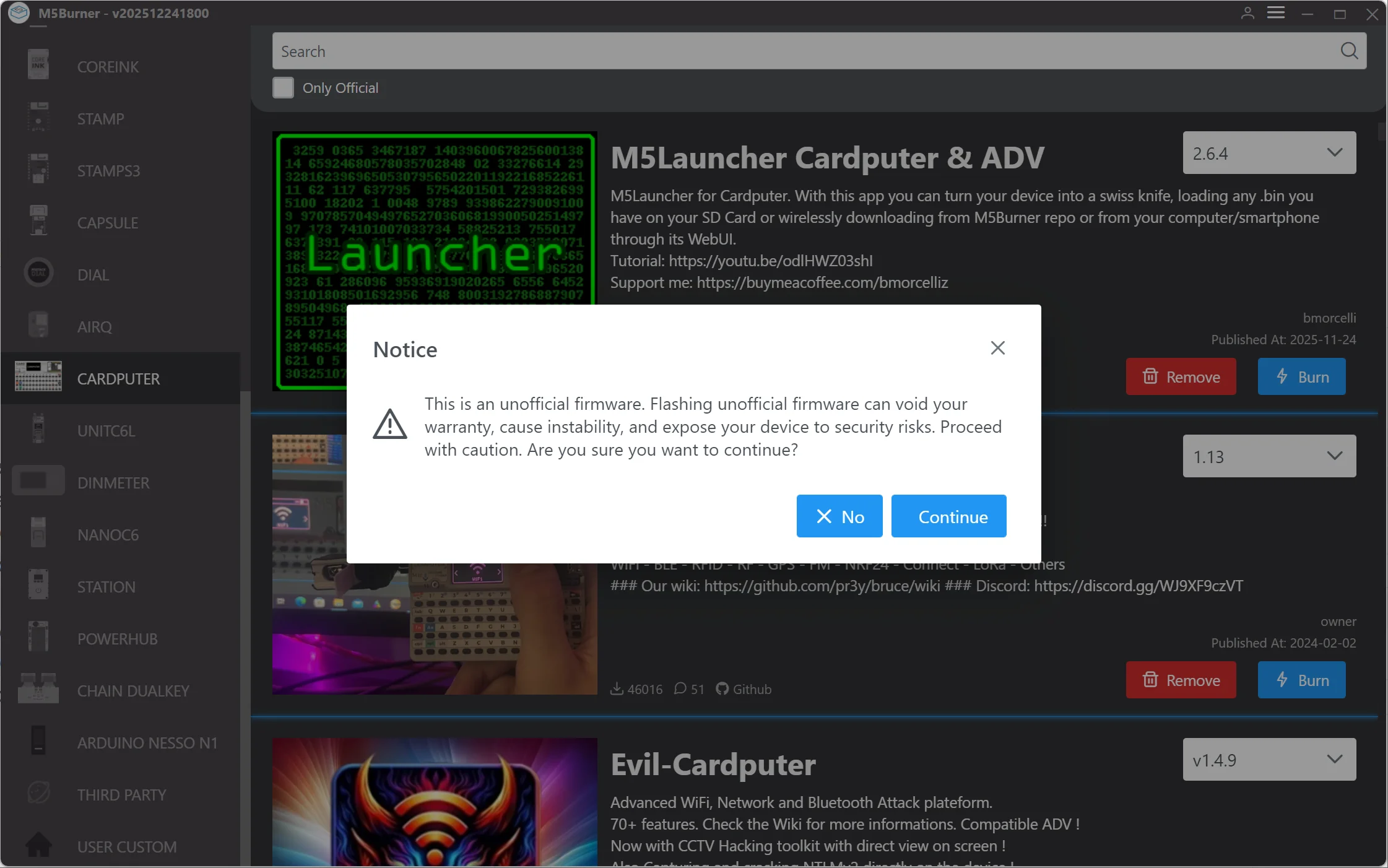

Other unofficial firmware. Flashing unofficial firmware can void your warranty, cause instability, and expose your device to security risks. Proceed with caution.
