Warm Hint
-
If you already have a T-U2T, you can buy the DEPG0213BN No Chip version.
-
If you don't already have a T-U2T, you can purchase the DEPG0213BN T-U2T version.
T5 2.13inch E-Paper
Overview
-
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features
-
No backlight, keeps displaying last content for a long time even when power down.
-
Ultra low power consumption, basically power is only required for refreshing.
-
Comes with development resources and manual (examples for Arduino-esp32).
Renew
-

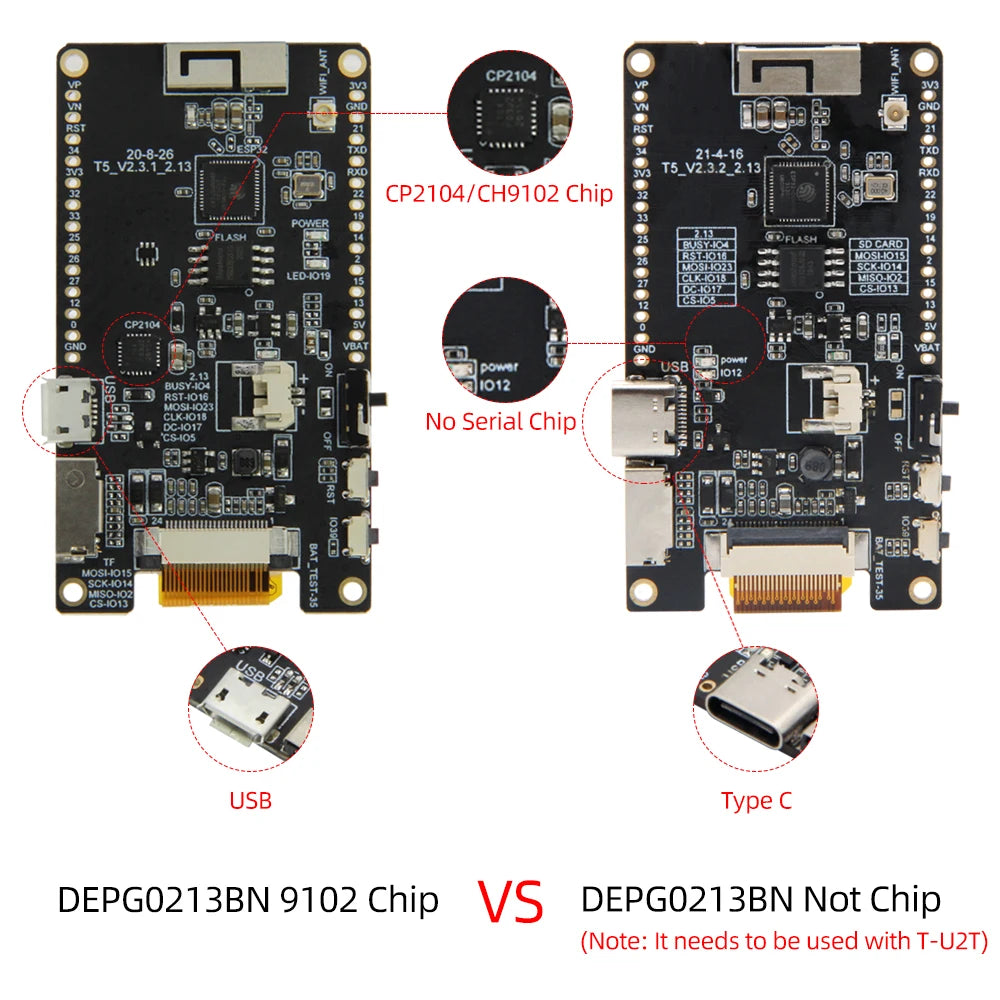

DEPG0213BN adds a version without the CH9102F download chip,lower power consumption.
(Expected to sell on April 6, 2022)
LILYGO® 2022/4/2
2.13 inch/DES electronic paper/ultra wide temperature
-

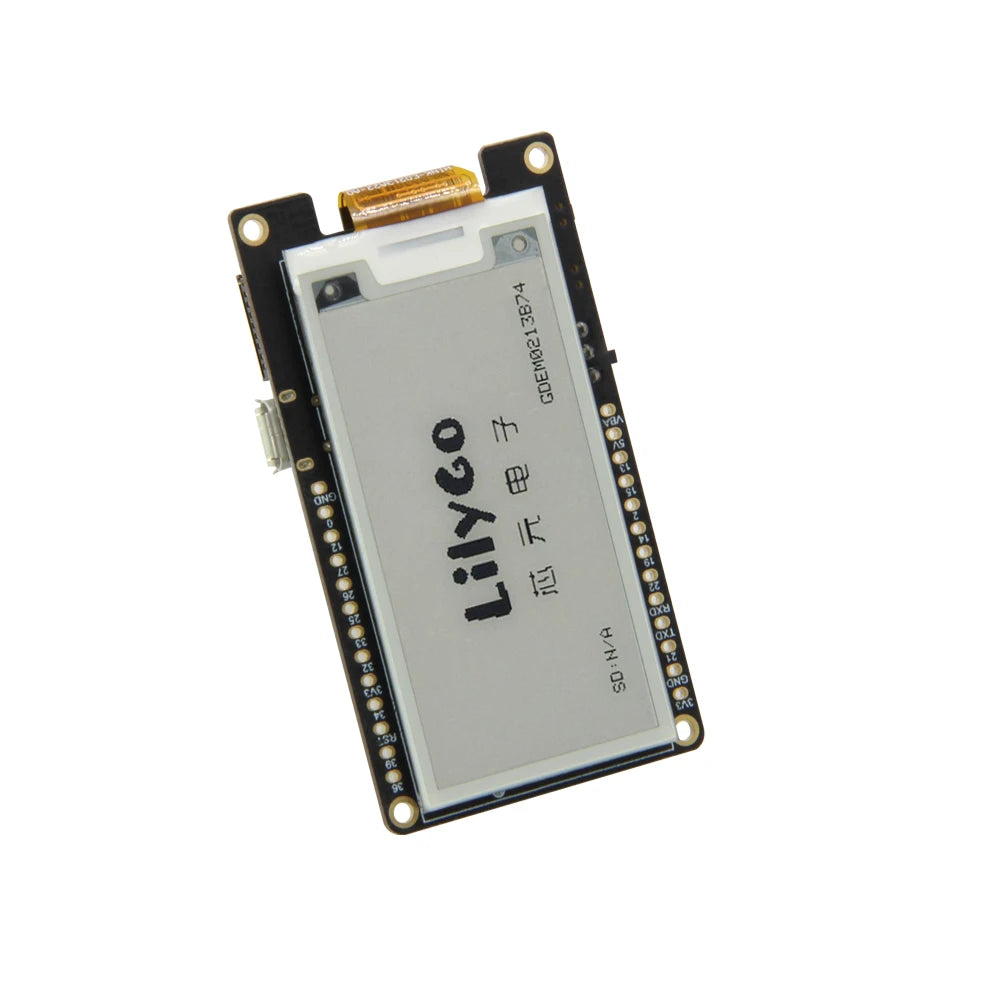

This is a 2.13-inch DES electronic paper display
What is DES?
-
Characteristics: Compared with other similar products, DES hashigher contrast and better display effect.
-
DES products are greater than 1:45, ordinary EPD products are less than 1:25.
The driver IC includes
-
Gate buffer, source buffer, time control logic, oscillator, DC-DC, SRAM, LUT, VCOM, and each panel provides a frame.
Ultra-wide temperature working range: -20℃ ~ 60℃
-
Can be used in cold environment and sunlight, GDEW0213M21 is an excellent choice for shelf label, smart label, smart home application, industrial tool, smart card, outdoor equipment application.
-
Working temperature range of conventional monochromatic electronic ink screen: 0℃-50℃, three-color working temperature 0℃-40℃,ultra-low temperature working temperature: -25℃ ~ 25℃
|
Specifications |
|
|
Operating voltage |
3.3V |
|
Interface |
3-wire SPI, 4-wire SPI |
|
Display color |
black, white |
|
Grey level |
2 |
|
Full refresh time |
8s |
|
Refresh power |
26.4mW(typ.) |
|
Driver chip |
SSD1680 |
|
Display Driver |
DEPG0213BN/ GDEM0213B74 |
|
resolution |
212x104 |
|
Wide operating temperature range |
-20℃ ~ 60℃ |
|
Power consumption |
ultra-low power consumption |
|
Viewing angle |
180 degrees |
|
Use in the sun |
support |
|
Ultra-wide temperature -20 degrees use |
support |
|
|
|
Sample Code For Reference [Github]
If you need technical support please check below link to find more details.

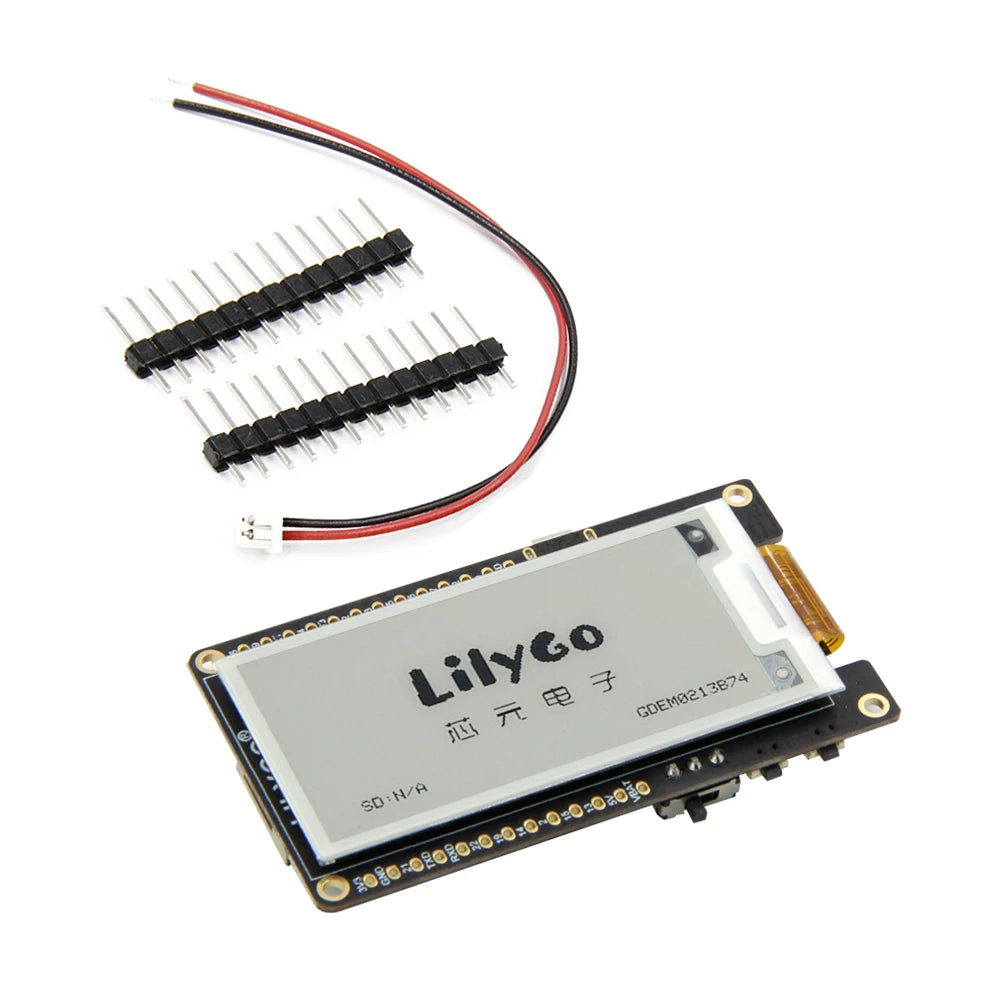

What's in the box?
-

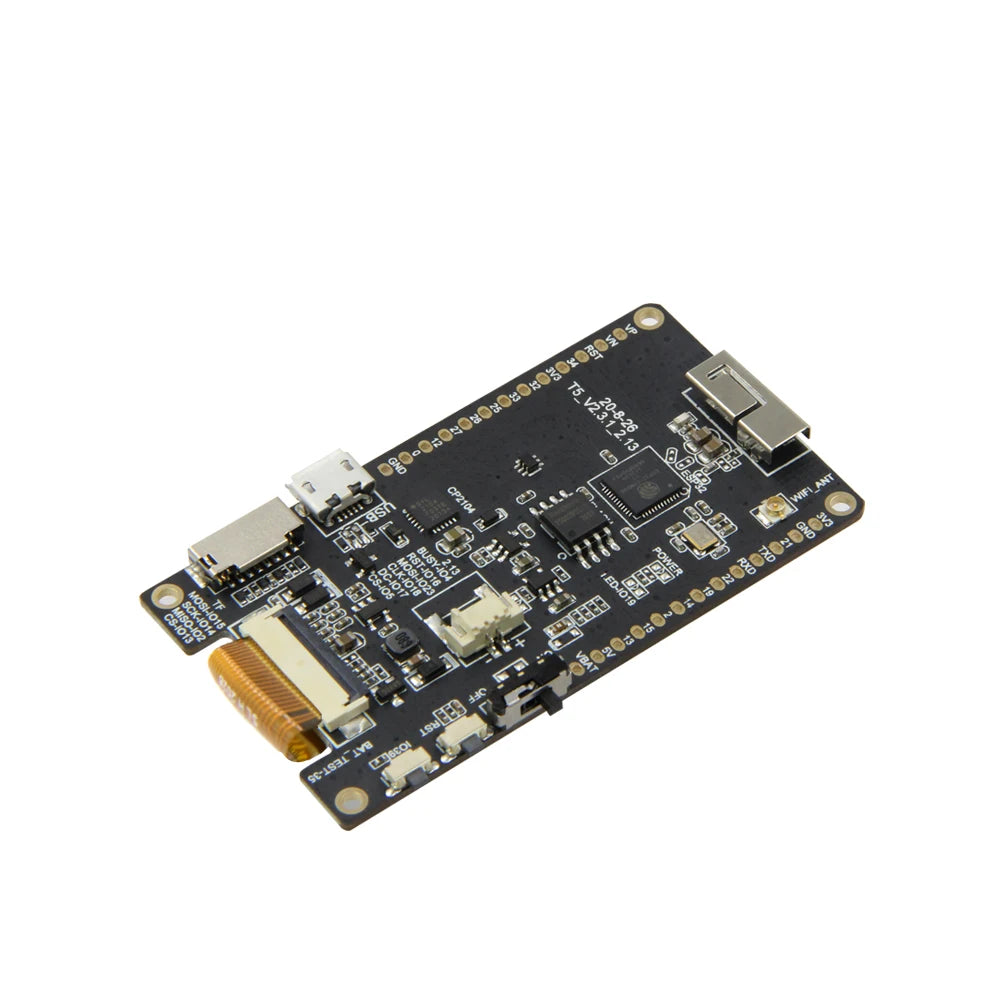

1 X T5 V2.3.1_2.13
-
1 X Power Cable（Jst 2pin 1.25mm）
-
2 X Pin
