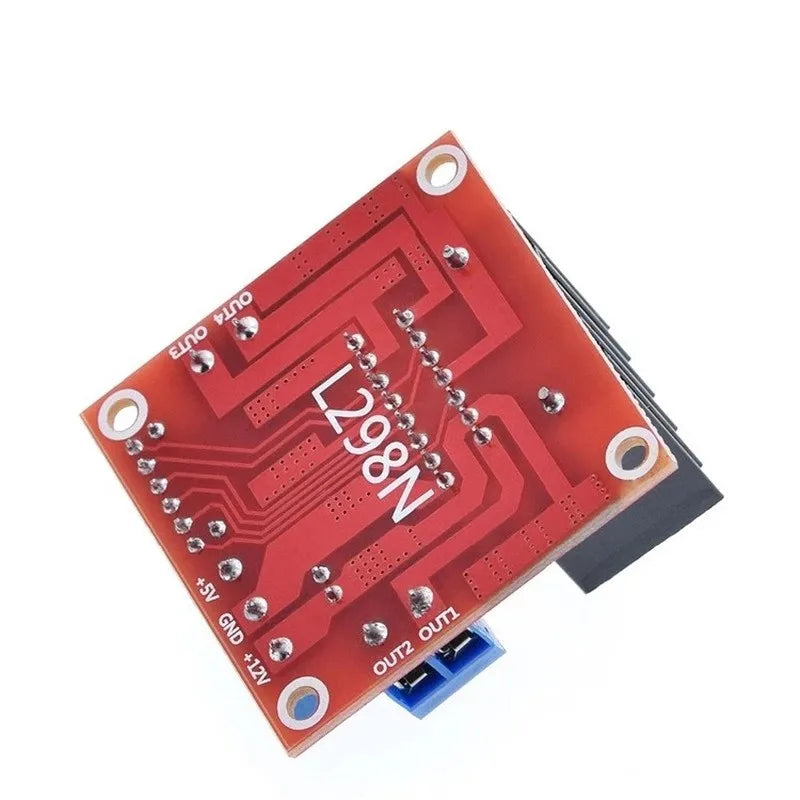

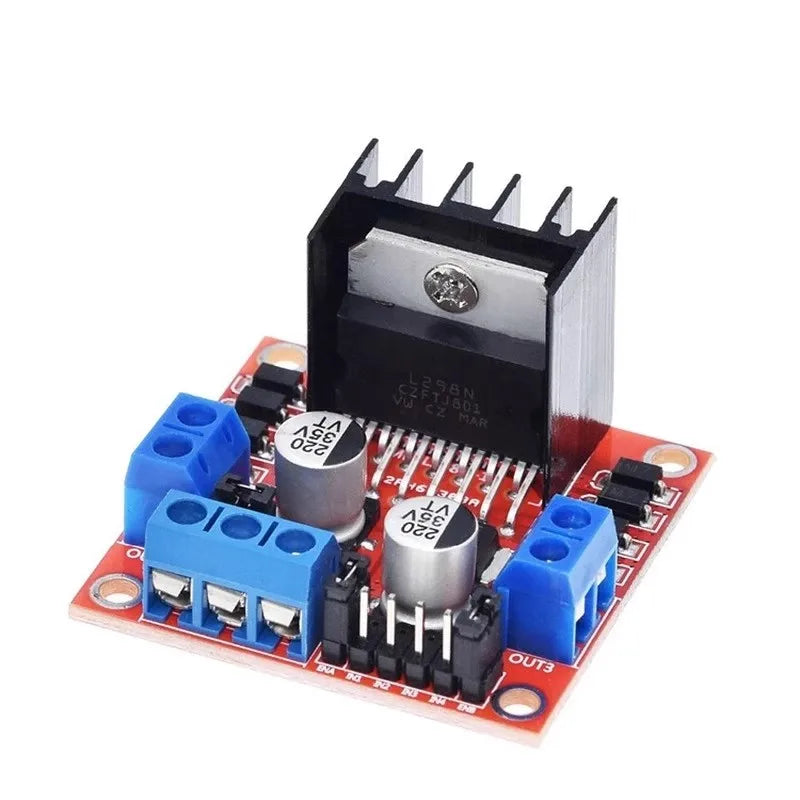

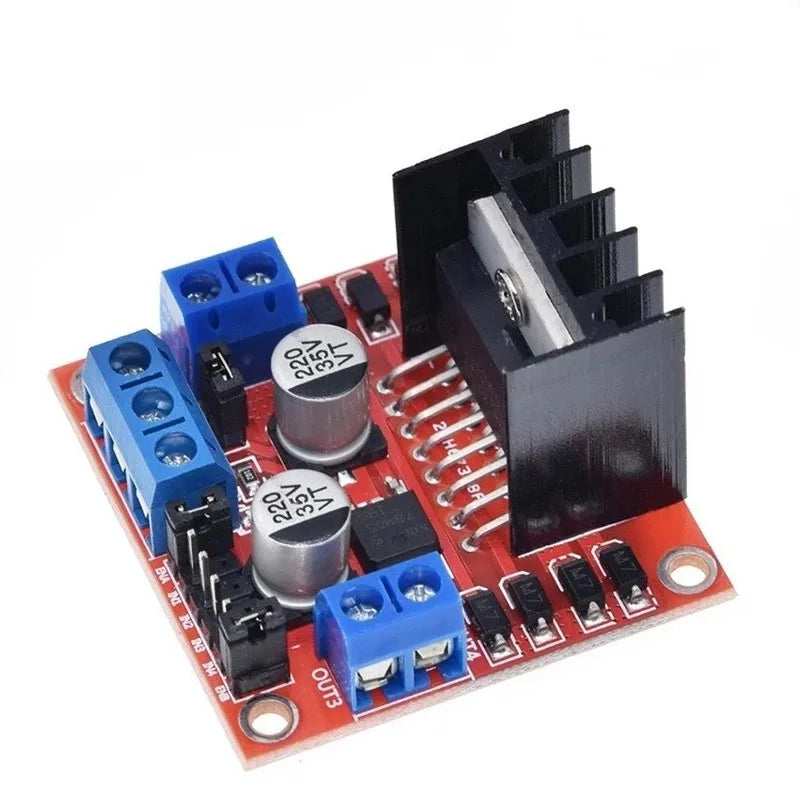

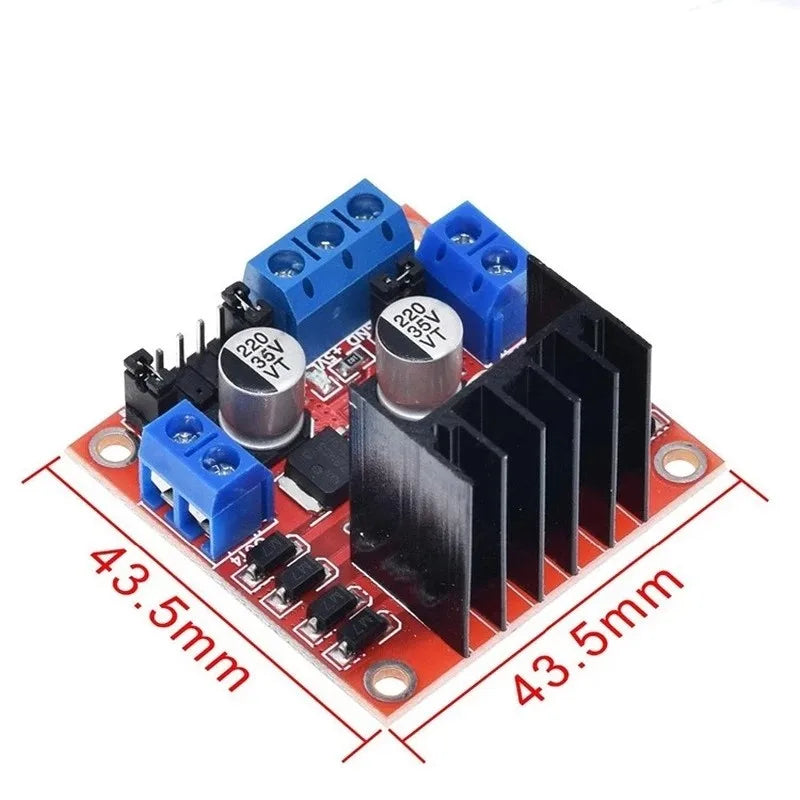

L298N DC Motor Driver Module L298N Stepper Motor Smart Car Robot Breadboard Peltier High Power L298 DC Motor Driver for Arduino

L298N Motor driver Module Program Book http://wenku.baidu.com/view/bb2431ed941ea76e58fa04f7.html

1.This module uses ST's L298N as the main driver chip and has a driver.

It is characterized by strong ability, low calorific value and strong anti-interference ability.

2.This module can use the built-in 78M05 to pick up the electrician through the drive power supply.

But in order to avoid damage to the voltage regulator chip, when using a driving voltage greater than 12.

Please use the external 5V logic power supply.

3.This module uses large capacity filter capacitor, continuous current protection diode, can lift.

High reliability.
