Note:

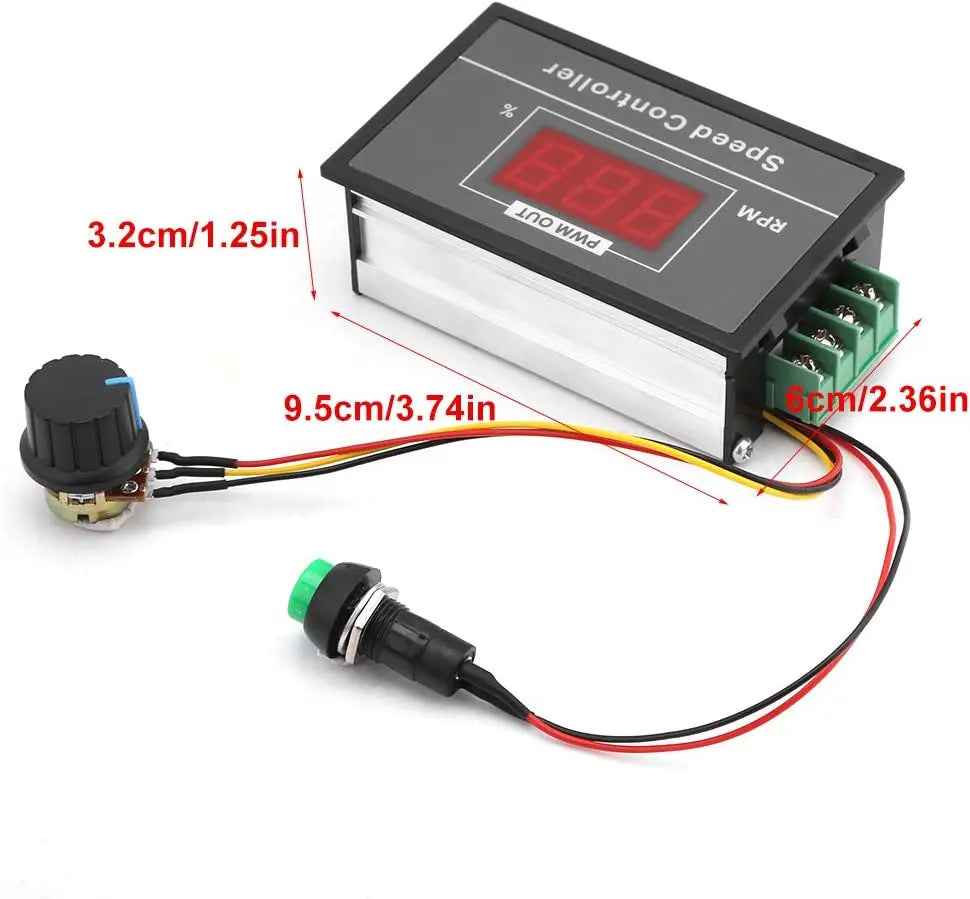

1. Please allow small size error due to manual measurement. Thanks for your understanding.
2. The digital tube only displays 0-100 motor full speed percentage, not the actual motor speed. For example, if the maximum motor speed is 500 rpm, it will display 100 at 500 rpm and 50 at 250 rpm.
3. The input voltage must be positive and negative, and 220V household electricity cannot be input
4. The input voltage should be equal to the rated voltage of the motor (within 6-60V)

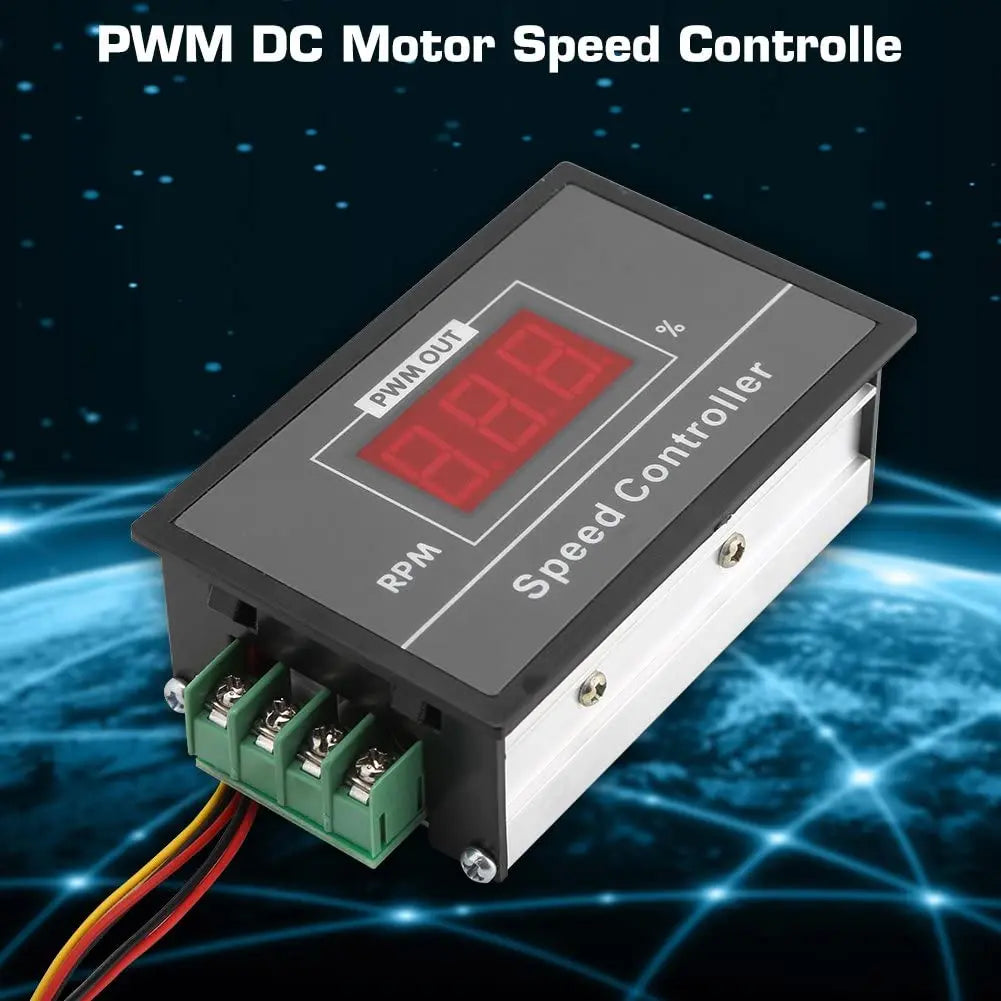

6-60V 12V 24V 36V 48V 30A PWM DC Motor Speed Controller
Designed with a digital display that shows the rate in percentage of actual speed to maximum speed
This motor speed controller uses screw terminals for convenient and quick wiring
Comes with a momentary start/stop switch and a speed control potentiometer
WM DC Motor Speed Controller
Specifications:
Input Voltage Range: DC6V-60V (input voltage should be same as motor rated voltage)
Output Voltage: Linear with load
Output Current: 0A-30A
Continuous Current: 20A
Speed Range: 0% to 100%
Regulation Method: Potentiometer
Regulation Type: Regulating Current
Control Frequency: 15KHz
Wiring Type: Screw terminal
Package included:
1 piece
